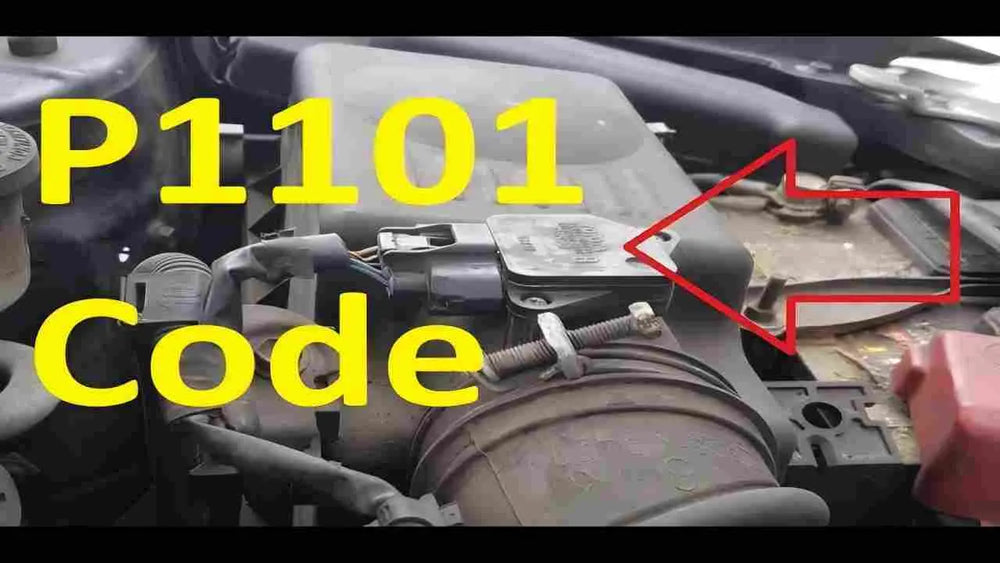

The P1101 fault code indicates that the mass airflow sensor (MAF) has detected an intake air volume that deviates from the manufacturer's set normal range. Simply put, the air intake of the engine does not meet the computer's expectations, resulting in an abnormal air-fuel mixture ratio.
This fault is common in General Motors, Chevrolet, Buick, GMC, and some Ford models, especially vehicles with turbocharged engines. Generally, the "-00" in P1101-00 is not a specific sub-fault, but simply represents the standard P1101 code.
Although this fault will not immediately damage the engine, it directly affects the air-fuel ratio, power output, and fuel consumption. If left untreated for a long time, it will further deteriorate engine performance.
Common Symptoms of P1101
Abnormal Engine Performance
In previous articles, we introduced the meanings of some common DTC codes. P1101 is a trouble code starting with P, indicating a problem with the vehicle's powertrain, including critical systems such as the engine, transmission, and fuel system. Therefore, abnormal engine performance is often a common symptom of P1101.
- Idle vibration
- Insufficient power
- Sluggish acceleration
- Turbocharged models may enter "limp mode"
Warning Light
The P1101 fault code is often accompanied by engine failure, so the engine check light will remain on on the car's dashboard, and fuel consumption will also increase.
- Check Engine Light constantly on
- Increased fuel consumption
One of the symptoms of P1101 is that the engine light is on.
Fault Occurred Repeatedly
Fault codes may still appear frequently even after components such as the air flow sensor have been replaced, due to intake leaks (such as PCV system failure or turbo hose rupture) or continuous sensor contamination.
The Main Reasons for the Occurrence of P1101
P1101 is primarily related to intake system malfunctions or MAF sensor performance deviations. Common causes include:
- MAF sensor contamination: Dust, oil mist, or residue can cause inaccurate readings.
- Vacuum leakage: Cracked hoses, loose clamps, or deformed air filter housing.
- Clogged or obstructed air filter.
- Throttle body carbon buildup or stuck throttle plate.
- Some models have outdated ECM/PCM software versions, leading to abnormal sensor signal interpretation.
Typical Causes by Vehicle Brand
GM and Chevrolet engines, especially 1.4T and 1.5T turbo models, use a complex PCV system. A torn PCV diaphragm, stuck valve, or failing internal membrane inside the valve cover is one of the top reasons for P1101. This issue is extremely common on Cruze, Malibu, Sonic, and Trax turbo engines.
Many owners report that even after cleaning the MAF and throttle body, the P1101 code persists. Final diagnosis often reveals a clogged PCV passage or a damaged PCV check valve inside the valve cover.
Ford vehicles, on the other hand, tend to trigger P1101 from MAF contamination, faulty intake air temperature sensors, or intake manifold gasket leaks—especially on EcoBoost engines.
PCV failure in the Cruze is a typical cause of P1101.
P1101 Severity and Driving Ability
P1101 is classified as moderately severe. The vehicle can still be driven on short distances under low load, but long-distance or high-speed driving is not recommended. An abnormal air-fuel ratio will reduce engine power and may cause stalling during acceleration or high-speed cruising.
Ignoring P1101 for an extended period can increase the burden on the catalytic converter, accelerate carbon buildup, and shorten the lifespan of the intake system and related components. Therefore, once this fault code appears, diagnosis and repair should be performed as soon as possible.
How to Diagnose P1101 (Using an Autel Scanner Recommended)
Steps to Diagnose P1101
Using an Autel OBD2 scanner that supports real-time data or Autel automotive diagnostic tools is the most effective diagnostic method. The procedure is as follows:
- Use the scanner to read fault codes and freeze frame data.
- Check if the MAF sensor's real-time airflow is within the normal range.
- Remove the MAF and check for dust, oil mist, or insect residue.
- Check the intake hoses, turbocharger lines, and air filter housing for cracks or looseness.
- For turbocharged models, pay special attention to checking the turbocharger hoses and intercooler connection.
- If a wiring problem is suspected, use a multimeter to test the MAF power, signal, and ground connections.
- For GM 1.4T models, check the PCV valve diaphragm and related ventilation systems for blockages.
The Autel scanners can display MAF data and fuel trim values in real time, significantly improving diagnostic efficiency and helping owners quickly locate problems.
Diagnostic code P1101 using Autel MD808 Pro
Recommended Autel Scanners
Autel MaxiPRO MP808BT Pro Kit
The Autel MP808BT Pro features a 7-inch touchscreen, a quad-core processor, and Android 11.0 operating system. Their powerful hardware configuration ensures a high level of diagnostic capability.
Beyond Its hardware configuration, their software functionality is also excellent. It supports full system diagnostics, over 3000 active tests and ECU coding features, as well as various service functions. The kit-equipped scanners come with various adapters to meet your needs beyond the OBD II port.
Autel MaxiPRO MP808BT Pro Kit
2-Year Free Update] Automotive Full System Diagnostic Scanner with OBDII Adapters | Wireless BT Connection | Bi-Directional Control | 36 + Reset Services| Extra One Box of OBD1 Adapter
Autel MaxiSys MS908S Pro II
High-level OBD2 Diagnostic Scan Tool 2025 | Online ECU Programming/ Coding | 36+ Services | Active Tests | Full Systems | Android 10, FCA Autoauth | Upgraded MS Elite/ MS908S Pro/ MK908 PRO II
Autel MaxiSys MS908S Pro II
The Autel MS908S Pro II is a newly launched and upgraded advanced automotive diagnostic tool for 2025, boasting powerful hardware and advanced diagnostic capabilities.
It features an octa-core processor and Android 10.0 operating system, offering enhanced security and faster diagnostic speeds. Furthermore, it supports ECU coding and programming, bidirectional control, and over 36 maintenance services, catering to both routine diagnostic needs and those requiring advanced functionality.
DIY Difficulty and Common Mistakes
The difficulty of troubleshooting P1101 ranges from easy to medium. Cleaning the MAF and checking for loose hoses are simple operations that most car owners can complete with basic tools. Advanced steps such as wiring tests, throttle body checks, or smoke tests require some experience.
Common mistakes include:
- Replacing the MAF without checking for vacuum leaks
- Overfilling the air filter
- Using a low-quality replacement sensor
- Ignoring PCV system faults
- Replacing the PCV valve on some GM models is complex; removing the valve cover can easily damage plastic parts.
Repair Solutions & Cost Estimates
The table below summarizes the most common repair options, explanations, and approximate cost ranges. Actual pricing varies by vehicle model, region, and repair shop.
| Repair Item | Description | DIY Cost | Professional Cost | Time Required |
|---|---|---|---|---|
| Clean MAF Sensor | Remove the MAF sensor and use a dedicated cleaner to remove dust and oil residue | $5–$15 | $50–$100 | 10–20 min |
| Fix Intake/Vacuum Leaks | Replace cracked hoses, tighten clamps, or install new seals | $10–$15 | $100–$300 | 20–60 min |
| Replace MAF Sensor | Use OEM or high-quality replacements; perform system relearn if required | $50–$400 | $200–$550 | 15–30 min |
| Fix Wiring/Connector Issues | Repair power, signal, or ground wires; clean and secure connectors | $10–$30 | $80–$200 | 20–40 min |
| Replace Air Filter | Install a fresh OEM or high-quality filter; avoid over-oiled aftermarket filters | $10–$30 | $30–$80 | 5–10 min |
| ECU/PCM Software Update | Reflash or update the engine control module calibration | — | $100–$300 | 30–60 min |
Note: Costs above are general estimates. For a more accurate quote, provide your vehicle's make, model, year, and engine type, and I can generate a detailed repair plan.
Recommended Repair Order
The most economical and effective approach is: First, clean the MAF (Main Fuel Filter) → then check for leaks → then troubleshoot the wiring → finally, consider replacing the sensor.
The Autel scanners can display MAF data and fuel trim values in real time, significantly improving diagnostic efficiency and allowing you to quickly determine the true source of the fault.
