How to Fix P2096: Post-Cat Lean Fuel Trim (Bank 1)

The P2096 code indicates that the vehicle's engine control unit (ECM) has detected a lean fuel mixture in cylinder bank 1 after the catalytic converter. This typically means there's too much oxygen and not enough fuel in the exhaust system.

To quickly and accurately diagnose this issue, you can use an Autel scanner, such as the MaxiCOM MK808Z or MaxiSYS MS919 series. These scanners provide live data streams, freeze-frame data, and detailed fuel trim monitoring to help you locate the problem and develop a corrective action plan.

This article will explore the meaning, common causes, symptoms, and repair methods of the P2096 code.

What is the P2096 code?

When your vehicle triggers the P2096 code, it means the ECM has detected a lean fuel mixture in cylinder bank 1 (including cylinder #1) after the catalytic converter. Simply put, this means there's too much oxygen and not enough fuel in the exhaust gas.

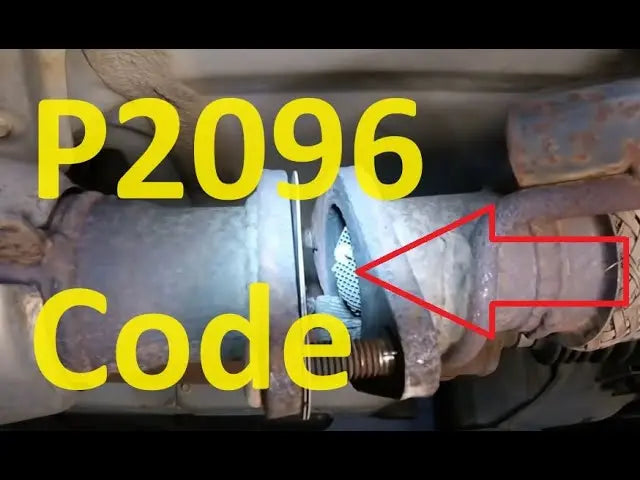

P2096 Code

The p2096 code indicates the fault location.

Key Terms:

  • Post-catalytic: Refers to the area of the exhaust system after the catalytic converter where the oxygen sensor monitors the oxygen content in the exhaust gas.
  • Fuel Trim: The engine control unit adjusts the fuel mixture to maintain an optimal air-fuel ratio.
  • Lean: Excess oxygen in the exhaust gases and insufficient fuel.
  • Bank 1: Refers to the side of the engine containing cylinder #1.

Common Causes of the P2096 Code

The P2096 code can be triggered for a variety of reasons. Understanding these common causes can help you better diagnose and resolve the problem. Here are some of the most common causes:

Exhaust Leaks

Leaks in the exhaust system can allow air to enter the exhaust system, causing the oxygen sensor to read an erroneous air-fuel ratio.

Common Exhaust Leak Problems:

  • Cracked Exhaust Manifold
  • Failed Exhaust Gasket
  • Loose or Holed Exhaust Pipe Connection
A cracked exhaust manifold may be one of the reasons why the P2096 code appears.

A cracked exhaust manifold can trigger the P2096 code.

Oxygen Sensor Fault

Oxygen sensors can degrade or malfunction over time, causing them to be unable to accurately detect the oxygen content in the exhaust gases, thus affecting the fuel mixture.

Common O2 sensor problems:

  • Downstream (post-catalyst) O2 sensor malfunction
  • Upstream (pre-catalyst) O2 sensor malfunction
  • Damaged sensor wiring

Fuel system problems

Any fuel system problem can cause the actual fuel mixture to be too lean, triggering the P2096 code.

Common fuel system problems:

  • Clogged or malfunctioning fuel injectors
  • Fuel pump unable to provide adequate fuel pressure
  • Clogged fuel filter
  • Fuel pressure regulator malfunction

Catalytic converter problems

Damage or aging of the catalytic converter itself can also cause a lean fuel mixture.

Common catalytic converter problems:

  • Damage or aging of the catalytic converter
  • Damage or clogged honeycomb structure inside the catalytic converter
  • Catalytic converter overheating

ECM/PCM software problems

Some models (especially certain Mazda and BMW models) may cause the P2096 code to erroneously display due to ECM or PCM programming issues.

Common ECM/PCM Software Issues:

  • Software Calibration Issues
  • O2 Sensor Reading Thresholds Set Incorrectly

Symptoms of the P2096 Code

When your vehicle triggers the P2096 fault code, you may experience the following symptoms:

  1. Check Engine Light Illuminates: The most obvious warning sign
  2. Rough Idle: The engine runs rough when the vehicle is stationary
  3. Increased Fuel Consumption: Fuel efficiency is reduced, and more frequent refueling may be necessary
  4. Lagged Acceleration: Throttle response is sluggish, and the vehicle may stutter when accelerating
  5. Loss of Engine Power: The engine may lack power, especially when climbing a hill or carrying a heavy load
  6. Engine Misfire: Severe lean-burn conditions can cause engine misfires
  7. Exhaust Noise: An unusual exhaust sound may occur if the problem is an exhaust leak

Note: Some vehicles may not experience noticeable drivability issues even when the P2096 code is present. However, this does not mean the problem can be ignored, as prolonged lean-burn conditions can cause damage to the engine and emissions system.

How to Diagnose the P2096 Code Using an Autel Scanner

Using an OBD2 scanner, such as Autel's MaxiCOM series (e.g., the MaxiCOM MK808 or MaxiSYS MS919), can help you quickly and effectively diagnose the P2096 code. Autel scanners offer live data streaming, freeze-frame data viewing, and fuel trim monitoring, making them ideal tools for diagnosing this type of problem.

Instructions:

  1. Connect the Scanner: Connect the Autel scanner to your vehicle's OBD2 port, select "Read Code," and confirm the P2096 code.
  2. View Freeze-Frame Data: Use the scanner to view the vehicle's status at the time the fault code occurred, including engine rpm, vehicle speed, oxygen sensor readings, and more.
  3. Live Data Stream Analysis: Start the engine and use the scanner to monitor key data such as short-term and long-term fuel trim, oxygen sensor readings, and air-fuel ratio.
The P2096 fault code was diagnosed using the Autel AL319.

The P2096 fault code was diagnosed using the Autel AL319.

How to Fix the P2096 Code

The first step in fixing the P2096 code is to determine the root cause. Here are the fixes for common causes:

  1. Fix the exhaust leak
    • Inspect the exhaust system visually or with a smoke machine.
    • Replace a cracked or damaged exhaust manifold, repair a leaking exhaust pipe, or replace a damaged exhaust gasket.
  2. Replace an oxygen sensor
    • Use an Autel scanner to determine which oxygen sensor needs replacement.
    • Replace a faulty downstream or upstream oxygen sensor, ensuring proper installation and wiring.
  3. Repair a fuel system problem
    • Clean or replace clogged injectors, inspect and replace the fuel filter, and test the fuel pump for proper operation.
  4. Replace the catalytic converter
    • If the catalytic converter is damaged or clogged, replace it with a compatible new one.
  5. Update the ECM/PCM software
    • If the problem is software, you may need to visit a dealer for an ECM or PCM software update.

Watch the video below to learn how to fix the P2096 code:

Severity of the P2096 Code

The severity of the P2096 code depends on its underlying cause. Ignoring this issue can result in the following consequences:

  • Engine damage: Lean burn can lead to overheating and preignition, damaging the pistons and valves.
  • Catalytic converter damage: Continued lean burn can cause the catalytic converter to overheat or even fail.
  • Emissions Issues: A P2096 code will cause emissions tests to fail, impacting vehicle compliance.
  • Reduced Fuel Efficiency: The engine may require more fuel to operate properly, resulting in reduced fuel economy.

Can I Continue Driving After Receiving a P2096 Code?

In the short term, if the symptoms are mild, the vehicle can still be driven. However, if the vehicle exhibits severe engine misfires, loss of power, or other issues, avoid driving and have the vehicle towed immediately to a repair shop.
