There are significant differences between electric vehicles and traditional fuel vehicles in terms of power system and control system, so special electric vehicle scanners are required to adapt to their special needs. Autel launches Electric Vehicle Scanner, Autel MS909EV and Autel Ultra EV, which are best suited for electric vehicle service and diagnosis.

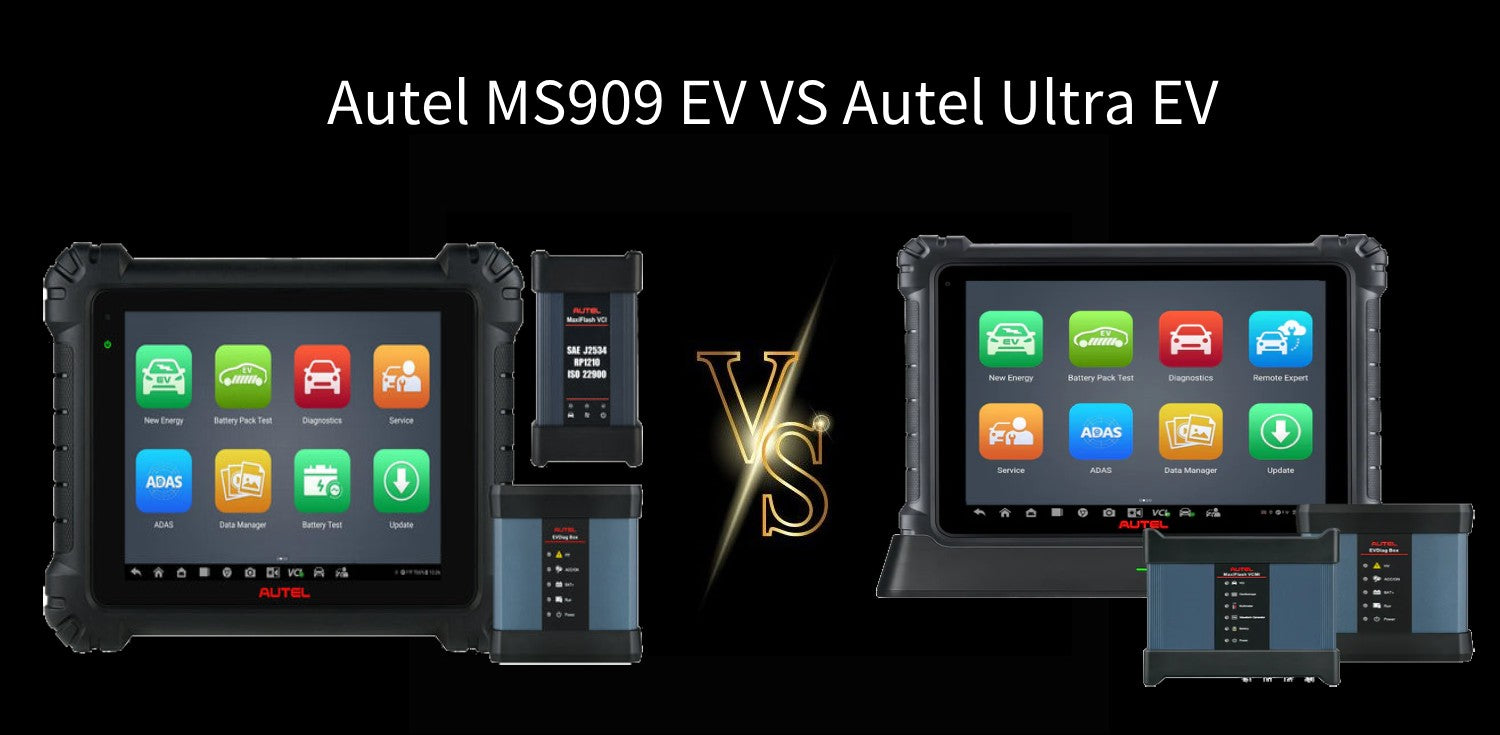

Here, we will explain the Autel MS909EV vs Autel Ultra EV, What's different? And focus on the features of the two scanners.
The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides es a comprehensive approach to advanced electric and hybrid vehicle diagnostics.
Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
Autel MaxiSys Ultra EV New Energy Car Diagnostics Scanner is a new generation of intelligent diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and b battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers.
The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI ( 5-in -1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box. The MaxiSys UltraEV combines Autel's MaxiSys Ultra with the MaxiSYS EV Diagnostics Upgrade Kit.
View More: Best EV Diagnostic Tool: Autel Maxisys Ultra EV
| Item | Autel MS909EV | Autel Ultra EV | ||
| Hardware | ||||
| Connection | Bluetooth MaxiFlash VCI | Bluetooth MaxiFlash VCMI | ||
| Screen | 9.7inch touchscreen | 12.9inch touchscreen | ||
| Battery | 15,000mAh | 18,000mAh | ||
| Processor | 2.2GHz+1.8GHz octa-core | 2.2GHz+1.8GHz octa-core | ||
| Memory | 128GB SSD/4GB RAM | 256GB SSD/4GB RAM | ||
| Camera | 16MP rear/ 16MP front | 16MP rear/5MP front | ||
| Docking Station | Included | |||
| EVDiag Box | Included | Included | ||
| Software | ||||
| Operating System | Android 10.0 | Android 7.0 | ||
| Automatic Detection | Auto-VIN/Auto-Scan/Scan VIN/Plate Scan | Auto-VIN/Auto-Scan/Scan VIN/Plate Scan | ||
| Secure Gateway Access | Authorized FCA access with AutoAuth account | Authorized FCA access with AutoAuth account | ||
| License Plate Reader | Available on select vehicles | Available on select vehicles | ||
| Vehicle Coverage | US, European, Asian electric, gas & diesel, hybrid vehicles | US, European, Asian electric, gas & diesel, hybrid vehicles | ||
| OBDII Test Modes | All 10 test modes | All 10 test modes | ||
| Service Resets | 36 service features | 36 service features | ||
| Diesel PM | Reset diesel emissions. Light & medium duty vehicles | Reset diesel emissions. Light & medium duty vehicles | ||
| System Diagnostics | Access all modules in all systems | Access all modules in all systems | ||
| High-voltage System Diagnostics | Diagram of high-voltage system block | Diagram of high-voltage system block | ||
| Battery Pack Diagnostics | SOC and SOH analysis | SOC and SOH analysis | ||
| Component Activation | Bi-directional control | Bi-directional control | ||
| Enhanced Functions | Coding & adaptations | Coding & adaptations | ||
| Cloud Services | Remote programming & report storage | Remote programming & report storage | ||
| Repair Assist | Guided procedures with DTC analysis & fault code solutions | Guided procedures with DTC analysis & fault code solutions | ||
| Topology Module Mapping | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles | ||
| Relevant Cases | DTC troubleshooting | DTC troubleshooting | ||
| Technical Service Bulletins | Available on select vehicles | Available on select vehicles | ||
| Oscilloscope | VCMI 5-in-one device, VCI multimeter, waveform generator, CAN bus tester | |||
| Split Screen Display | ||||
Autel Maxisys EV Diagnostics Upgrade Kit includes EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis. The EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. EVDiag Box connects to MaxiFlash VCI or VCMI.
Autel BT608 is a professional analysis tool for testing 6- and 12-volt batteries from 100-3000 CCA, it covers Flooded, AGM, AGM Spiral, EFB and GEL Cell batteries. With the Adaptive Conductance technology, users can get the most accurate test results and minimize the chances of misdiagnosis.
MaxiCheck MX900 is an 8" touchscreen, all-systems scanner and service tablet. The MX900 is also a full-featured service tablet with more than 40 service and maintenance tasks, including Brake Bleed, Oil and Service lights resets, Battery Registration, DPF Regen, and Electronic Parking Brake and Steering Angle resets.
We've talked about Autel Maxisys Elite 2 Pro in previous blog, now we're gonna lern more about ECU coding , programming, and then look at a review of it. Featuring a fully-compliant SAE J2534-1 or SAE J2534-2 MaxiFlash box, Maxisys Elite II pro provides comprehensive online ECU coding services, including the ability to update the hidden features, customize OE settings, match components, and enhance vehicle performance. Moreover, it performs some functions that were previously available to "dealership only"
