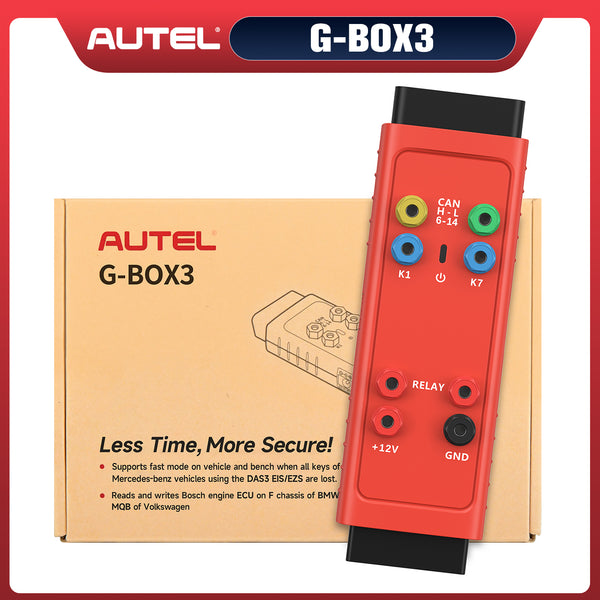

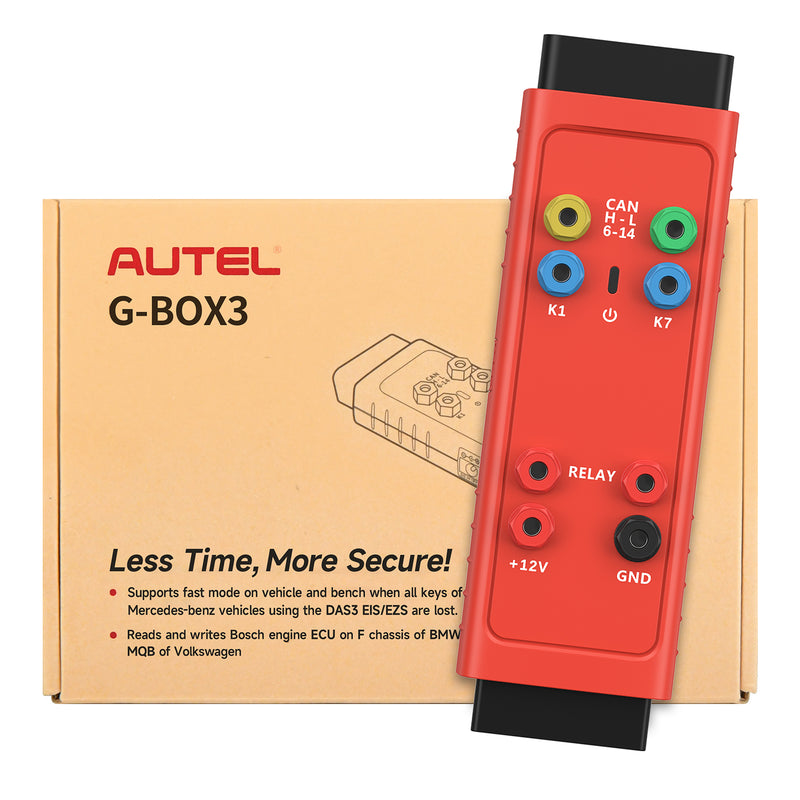

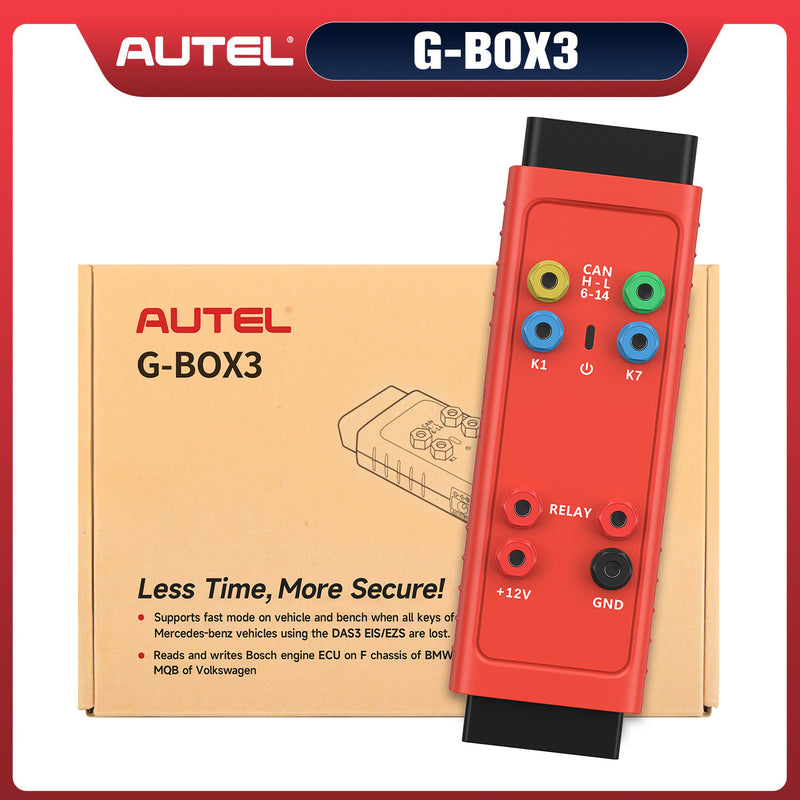

Autel G-BOX3 Accessory Tool
- The Autel G-BOX3 is designed to be used on for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to save time for reading the ECU data from W204 and W207 EISs by over 85%.
- The G-BOX3 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX3 reduces the time needed and eliminates the process of insertion and removal.
- The G-BOX3 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
- The G-BOX3 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.
Autel G-BOX3 Main Features:
- 1. For Mercedes Benz All Keys Lost, Faster Password Calculation
- 2. Used with MaxiIM IM608S II / IM608 PRO II / IM608 PRO / IM608 / IM508S / IM508
- 3. Used for Faster Mercedes ECU data and EIS password calculation
- 4. For Mercedes DAS3 can EIS / EZS all keys lost
- 5. Reduce time reading W204 ECU data & W207 EIS by over 85%
- 6. No need to remove and reinsert the key for W221 & W164 after 2009 models
- 7. For BMW DME / DDE ISN reading and writing in boot mode
- 8. G-BOX3 is compatible with both the Autel MaxiIM IM608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400
G-BOX2 VS GBOX-3
- G-BOX2 makes Mercedes all keys lost faster, GBOX-3 makes it 4x/8x faster
- GBOX-3 offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on vehicle.

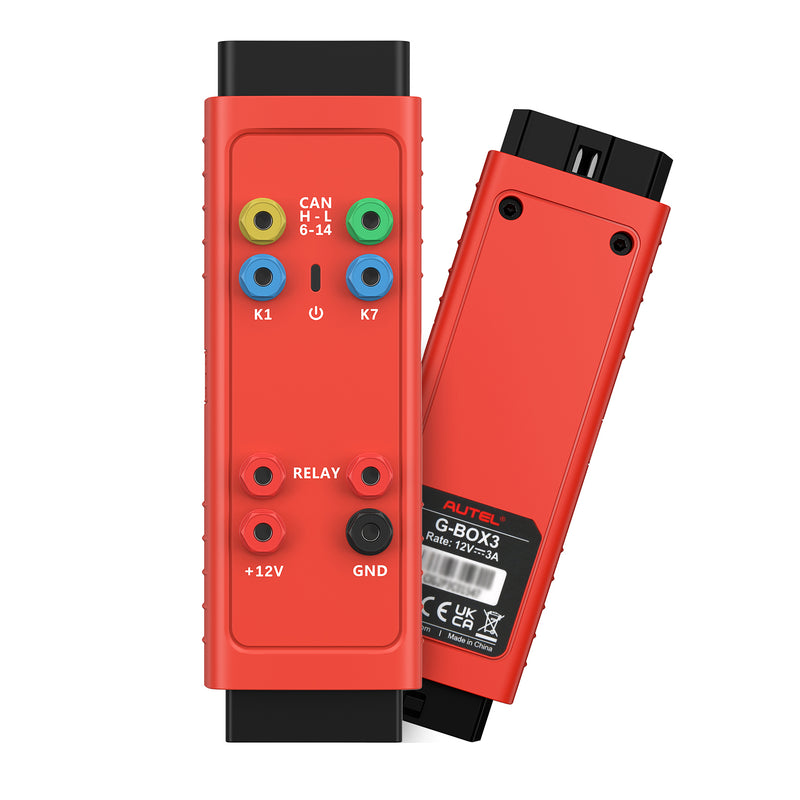

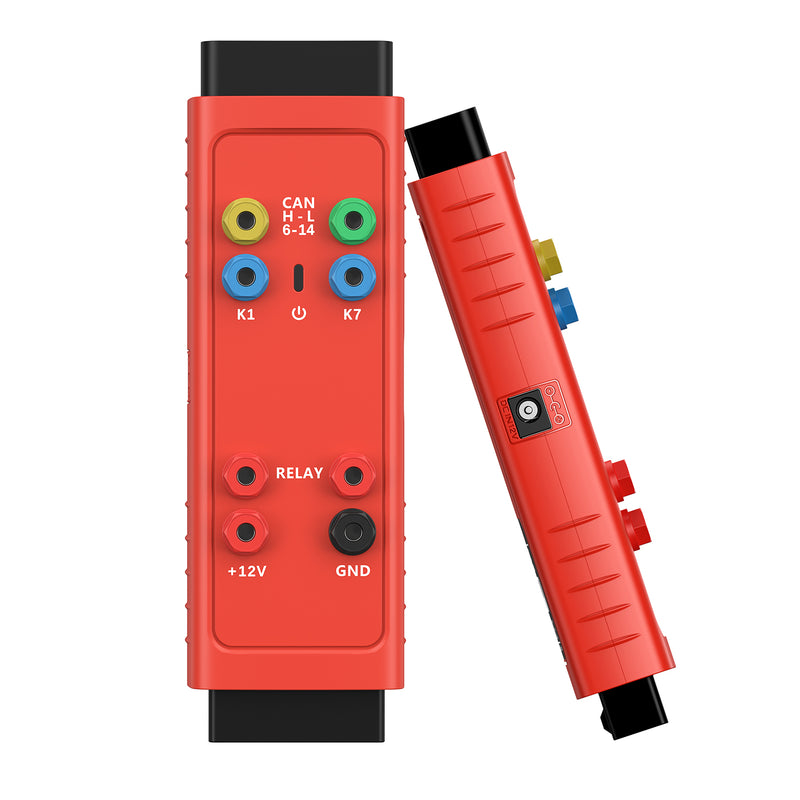

Autel G-BOX3 Details Instruction:

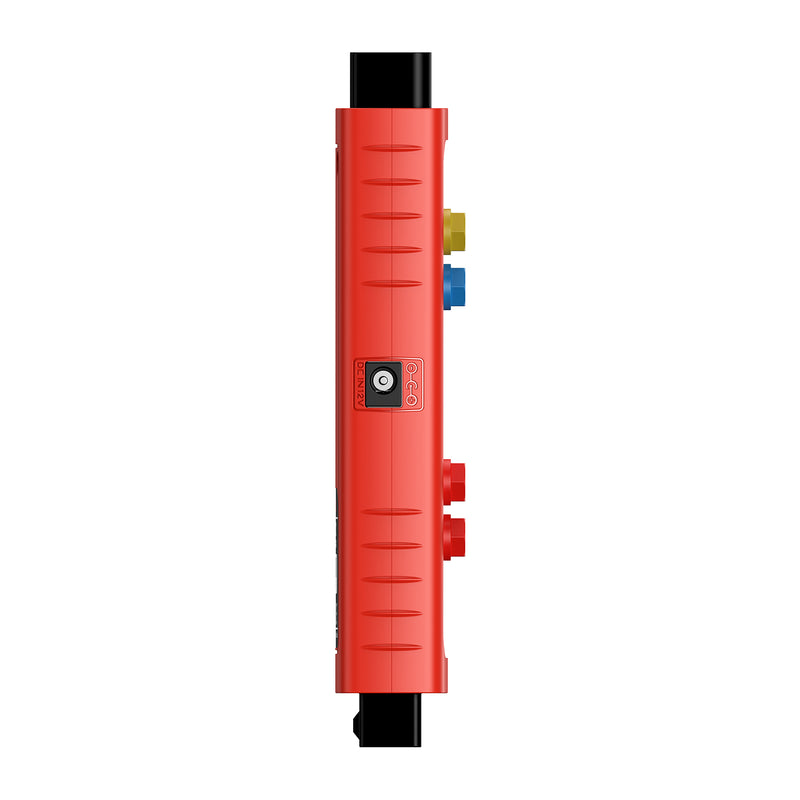

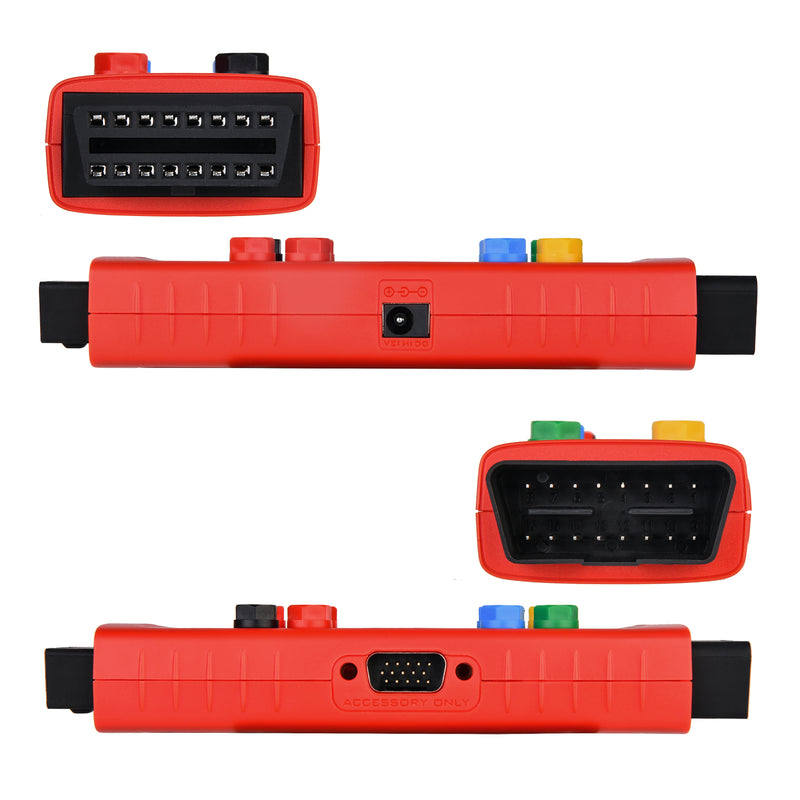

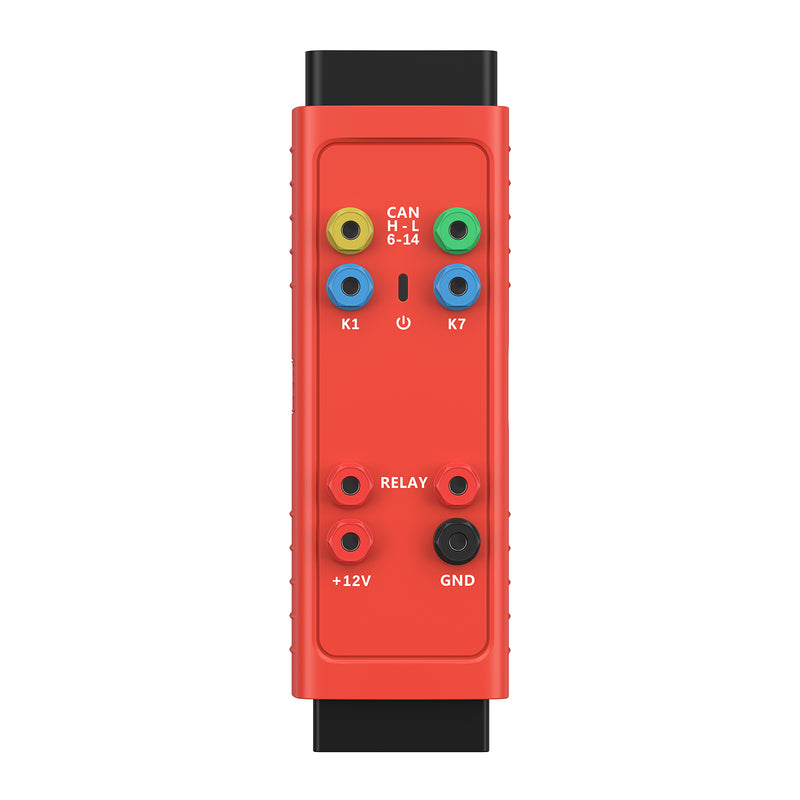

- DC Port -Provides +12 DV power supply
- Can-H Port: Universal Can Bus interface, connects with OBDII PIN6
- K1 Port: Universal K-Line interface, connects with OBDII PIN1
- Status Indicator: Indicates the current operating status
- Relay Ports: Connect with dedicated relay cables
- +12V Power Port: Universal power input/ output port
- OBDII Connector: Connects to the vehicle's OBDII directly or via a dedicated extension cable
- OBDII Female Connector: Connects to the main cable of Autel Diagnostic Tool
- Can-L Port: Universal Can Bus interface, connects with OBDII PIN14
- K7 Port: Universal K-Line interface connects with OBDII PIN7
- GND Port: Universal Power Input/ Output Port

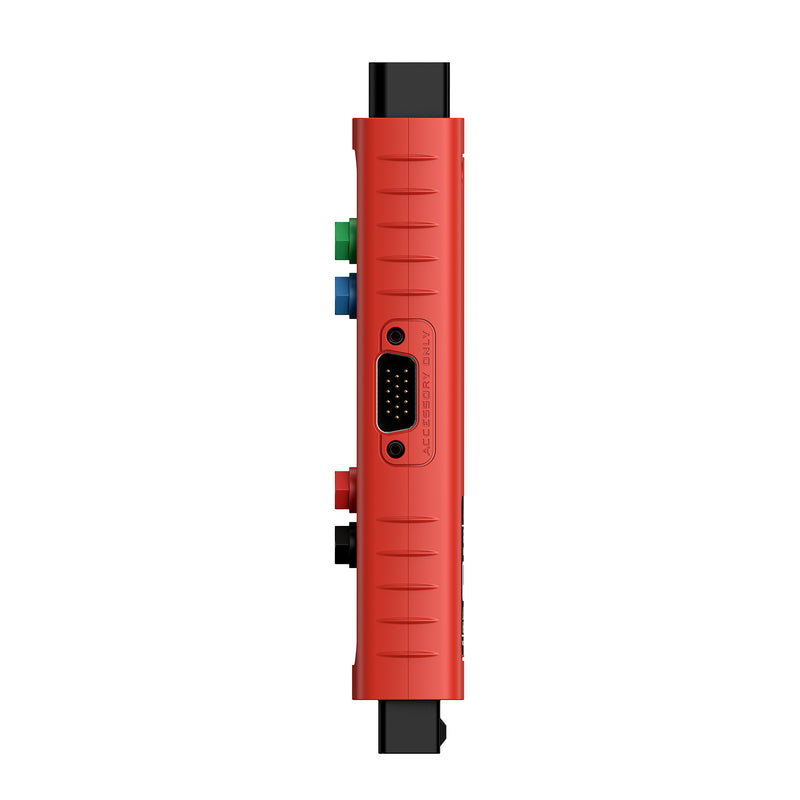

- OB15 Port: Used with dedicated BD15 Cable for reading and wrting multiple types of ECUs
Why Buy Autel G-BOX3 --- Small is Smart!
1. MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.
2. MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR
- 8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
- 4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.
3. MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS
- W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)
4. MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE
- EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.
- 23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.
How does Autel G-BOX3 Work?
A. OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost
(This method is suitable for Mercedes-Benz W204 , W207, W216 and W164 EISs after the year 2009)
- 1. Connect the G-BOX3 to vehicles's OBDII

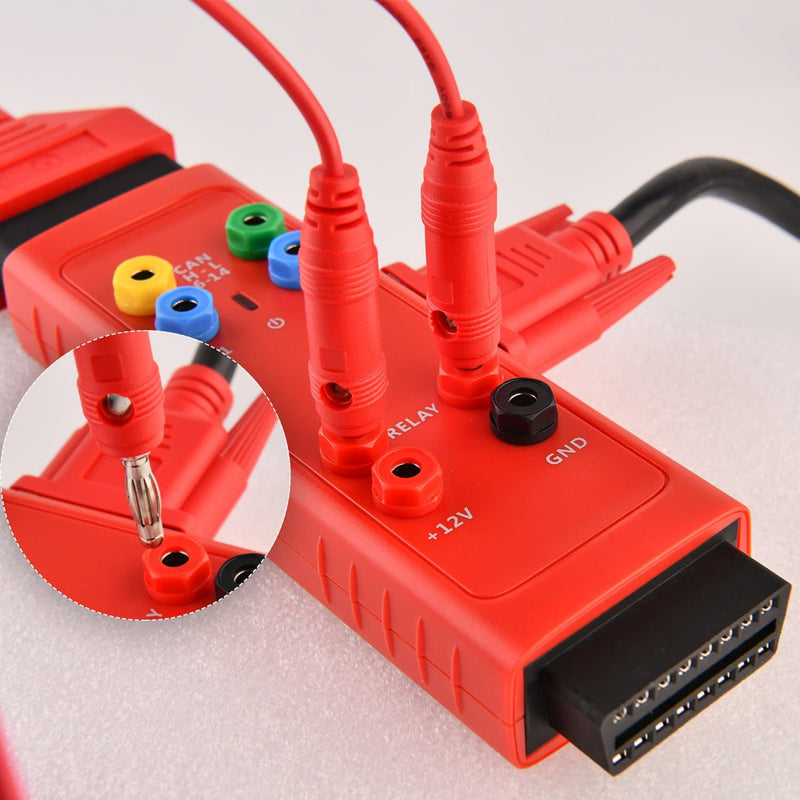

- 2. Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
- 3. When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
- 4. Connect the G-BOX3 to the Autel Diagnostic Tablet
B. Desktop Operation When All Keys of Mercedes-Benz Vehicle are Lost
(This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet.)
- 1. Connect the G-BOX3 to the Mercedes-Benz EIS using the supplied DB15 Cable
- 2. Connect to the DC port of G-BOX3 using a power adapter (DV 12V)
- 3. Connect the G-BOX3 to the Autel Diagnostic Tablet
