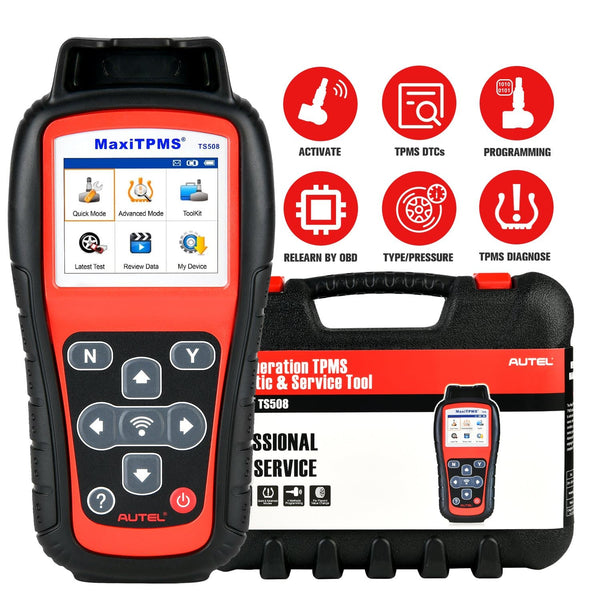

Autel MaxiTPMS TS508 TPMS Diagnostic & Service Tool for TPMS Diagnostic/ Programming/ Relearn or Reset

items available In Stock |
Sold out
Original price $299.00
from Original price $299.00
Original price $299.00
Current price $229.00
from $229.00
Current price $229.00
Item: TS508

Delivered by Mon, Apr 01 - Wed, Apr 03 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by USPS, UPS or FedEx
  • Description
  • Downloads
  • Shipping
  • Certificate
    • Description
  • Note ! ! !

    Autel TS508 has been discontinued, the TS508WF has higher performance than TS508 while having upgraded hardware, if you are looking for TS508, please choose Autel TS508WF!

    Autel TS508WF 👉https://www.obdprice.com/products/autel-maxitpms-ts508wf-advanced-tpms-service-tool

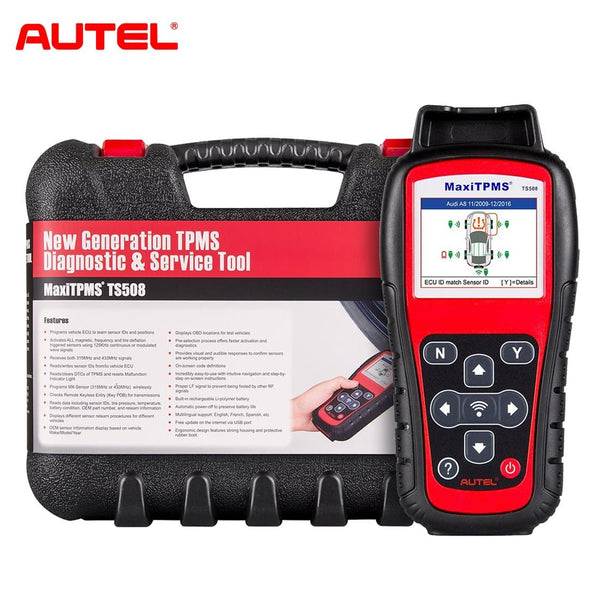

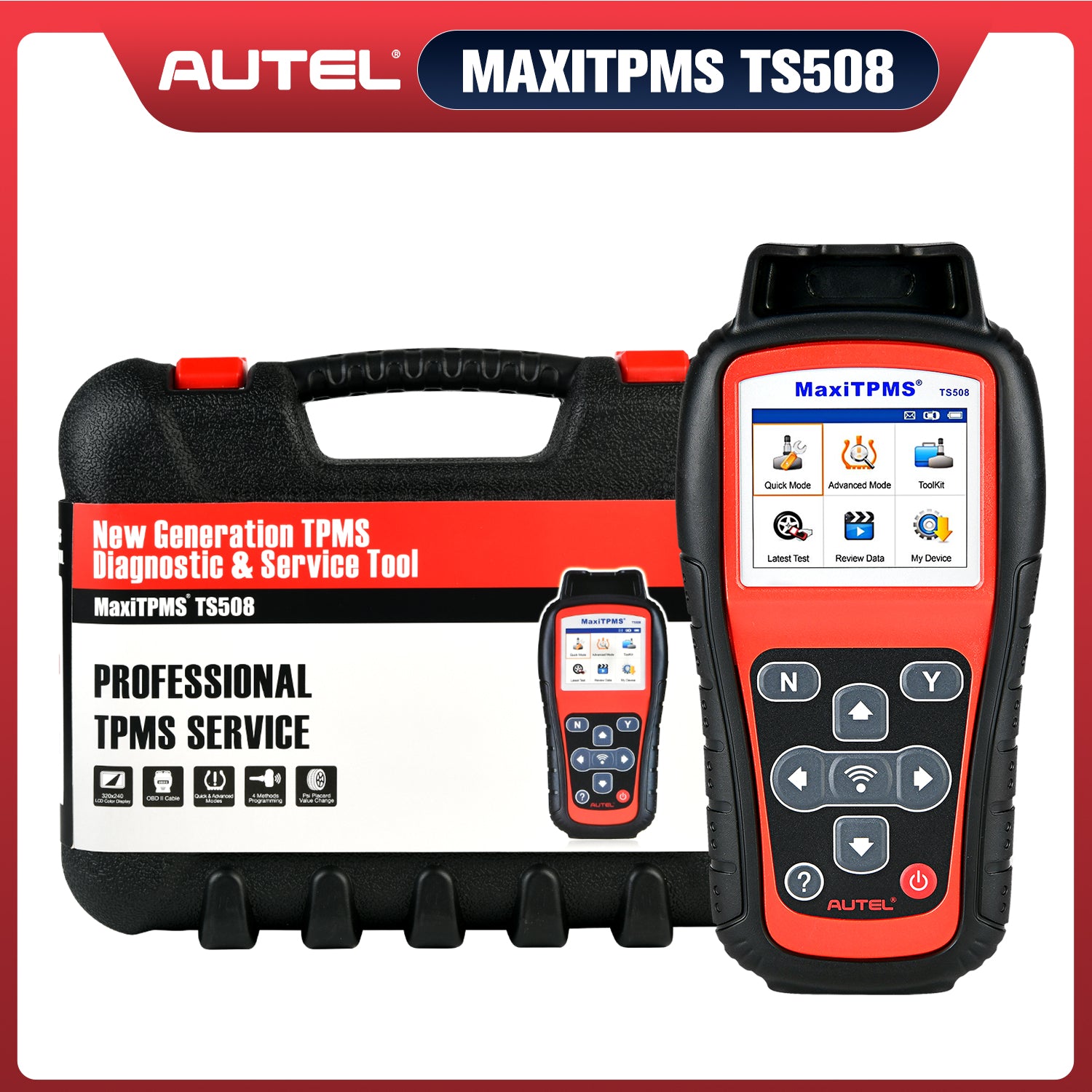

    Autel MaxiTPMS TS508

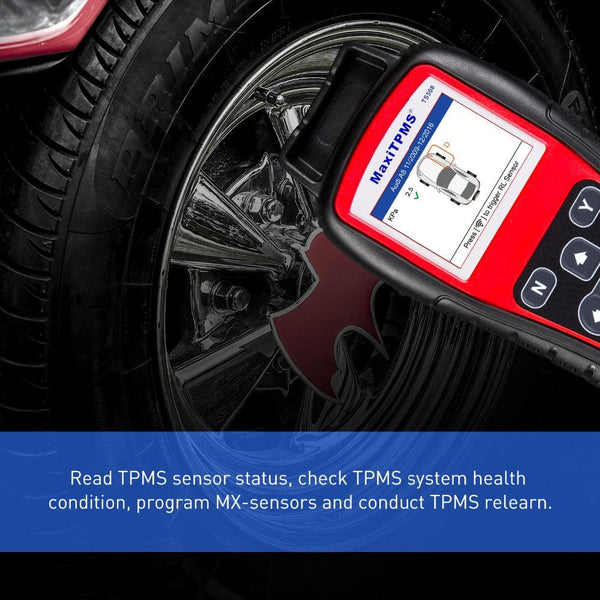

    Autel MaxiTPMS TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.

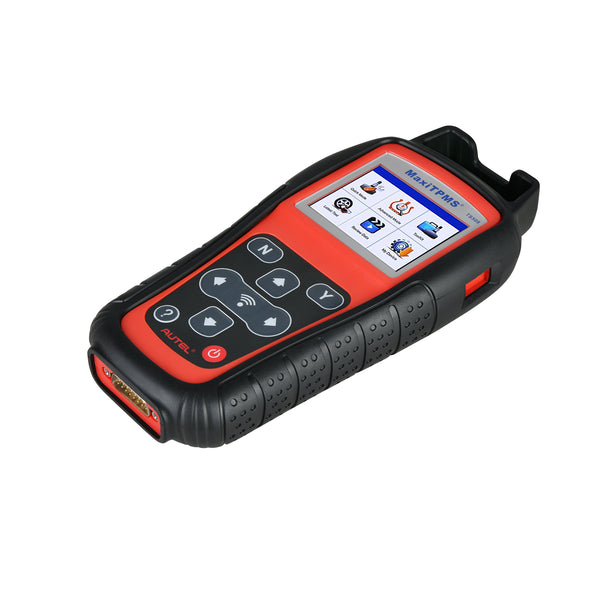

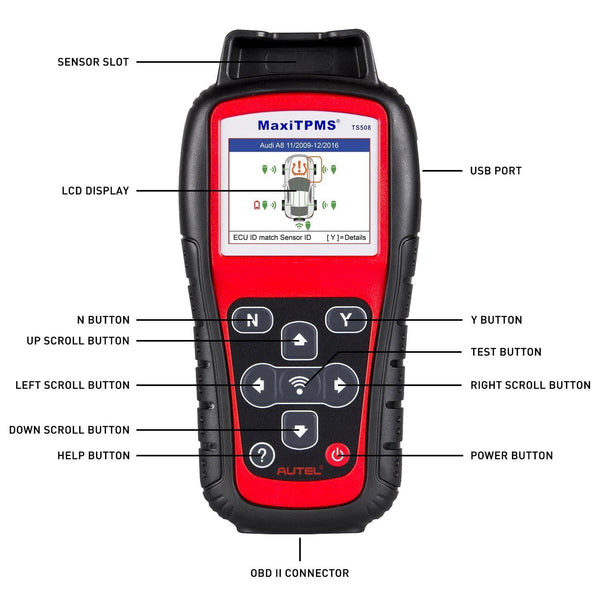

    autel ts508 overview

    Autel TS508 Support Multi-Language:

    • English, French, Spanish, German, Dutch, Swedish, Polish, Korean, Japanese, Italian.

    Autel MaxiTPMS TS508 Advantage

    TWO TPMS SERVICE MODES

    • The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

    ts508 2 working modes

    QUICK MODE / ADVANCED MODE COMPARISON
    • TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly
    • TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

    EXCLUSIVE TPMS STATUS SCREEN

    • Read ECU sensor ID;
    • Check sensor ID and ECU ID matching condition;
    • Read DTCs from ECU and erase DTCs;
    • View DTCs detail description;
    • FOUR MX-SENSOR PROGRAMMING OPTIONS
    • Copy By Activation;
    • Copy By Manual Input;
    • Auto Create 1-16;
    • Copy By OBD;

    ts508 main services

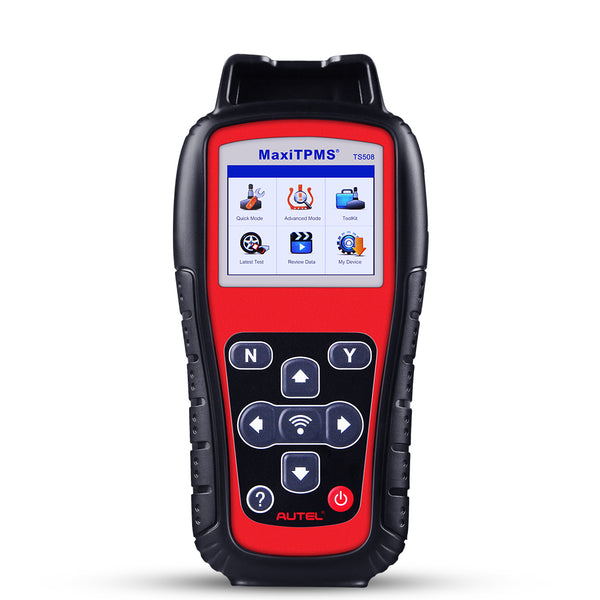

    autel ts508

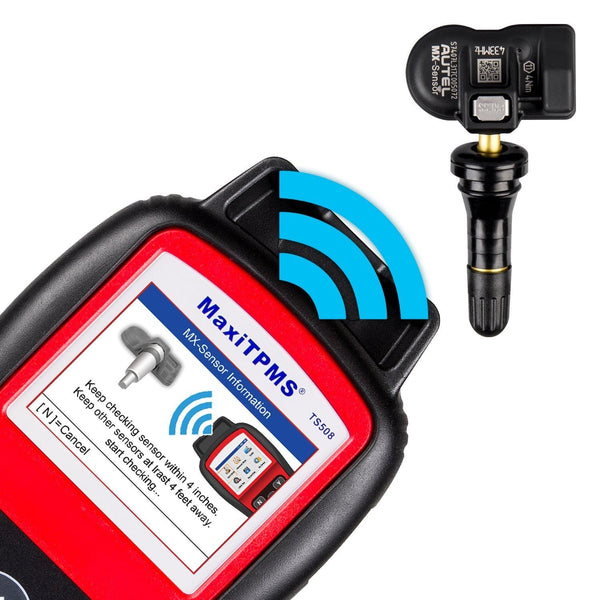

    ts508 program sensors

    Autel MaxiTPMS TS508 Features:

    • Vehicle Specific Database (Domestic, Asian and European)
    • Auto Selection of Frequency for Fast Scanning
    • Two TPMS Service Modes to Use
    • Quick Mode for Fast Installs designed for tire / wheel shops
    • Advanced Mode To diagnose, repair and replace TPMS for repair shops
    • TPMS Status Screens for Easy Diagnosis
    • Shows ID matching in color
    • Low Sensor Battery Indicator
    • Code Notification
    • Information - relearn procedures at the touch of help button
    • Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
    • Programs vehicle ECU to learn sensor IDs and positions
    • Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
    • Receives both 315MHz and 433MHz signals
    • Reads / writes sensor IDs from vehicle ECU
    • Reads / clears DTC's of TPMS and resets Malfunction Indicator Light
    • Programs Autel MX-Sensors 315MHz or 433MHz wirelessly
    • Checks Remote Keyless Entry (Key FOB) for transmissions
    • Reads Data including sensor IDs, tire pressure, temperature, battery condition.
    • OEM Part number and relearn information
    • Displays different sensor relearn procedures for different OEM sensors
    • OEM sensor information display based on vehicle Make/Model/Year
    • Displays OBD locations for test vehicles
    • Pre-selection process offers faster activation and diagnostics
    • Provides visual and audible responses to confirm sensors are working properly
    • On-screen code definitions
    • Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
    • Proper LF signal to prevent being fooled by other RF signals
    • Built-in rechargeable 3.7 v Li-polymer battery
    • Automatic power-off to preserve battery life
    • Multilingual support: English, French, Spanish, etc.
    • Free Lifetime updates on the internet using USB port
    • Ergonomic design features strong housing and protective rubber boot
    • TFT Color Display (320 X 240 dpi)
    • 8.0" LED Capacitive touchscreen with 1024 X 766P resolution

    Autel MaxiTPMS TS508 Specifications:

    Display: TFT color display (320 x 240 dpi)
    Power: 3.7 V Li-polymer battery; 3200 mAh
    Operating Temp: 0 to 50°C (32 to 122°F)
    Storage Temp: -20°C to 70°C (-4°F to 158°F)
    Dimensions: 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
    Weight: 0.39 kg (0.86 lb.)
    Connectivity: Mini USB 2.0 x 1
    Warranty: 1 year
    Software Update: Free

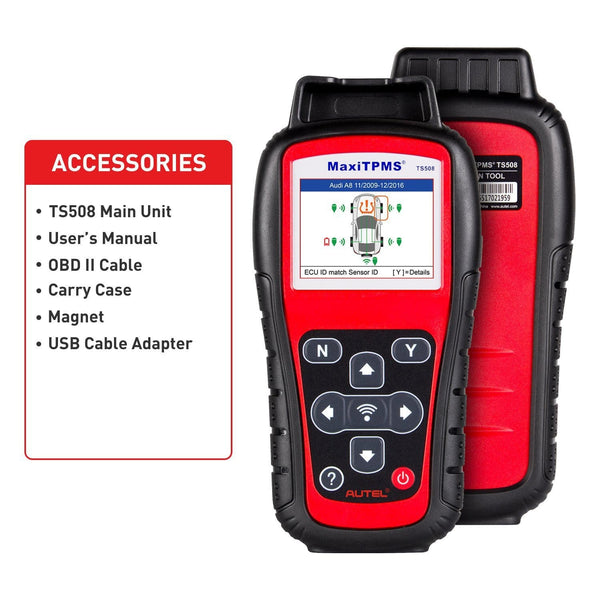

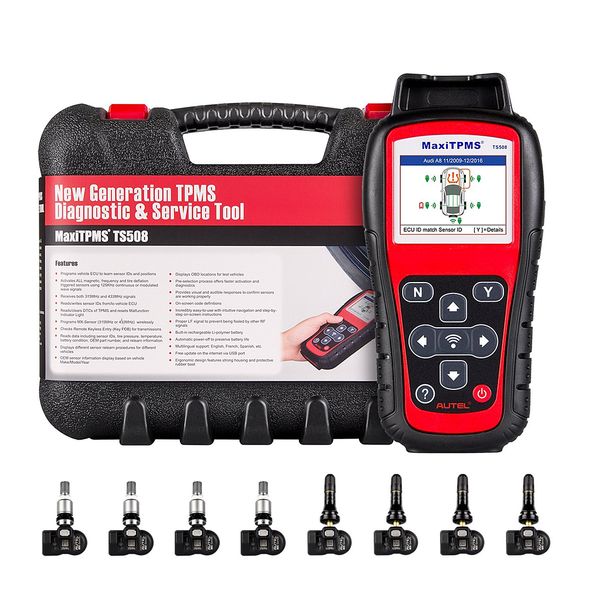

    Autel MaxiTPMS TS508 Package List:

    • 1pcs x User manual
    • 1pcs x OBD II cable
    • 1pcs x USB cable
    • 1pcs x Carry case
    • 1pcs x AC Adapter
    • 1pcs x Magnet
    • 1pcs x CD
    • Downloads
  • Name

    Download

    Autel TS508 Instruction (US Version).pdf

    Autel TS508 MaxiPCSuite_V1.23_Windows.zip

    Autel TS508 MaxiPCSuite_mac_V1.12.zip

    Autel TS508 User Manual V1.00 (ES).pdf

    Autel TS508 User Manual V2.1.pdf

    Autel TS508_PR_07122017(US Only).pdf

    Autel TS508_Quick Guide_V3.pdf

    Autel TS508_V5.5X_Function list_EU.pdf

    Autel TS508_V5.5X_functionlist_US.pdf
