September 21, 2023

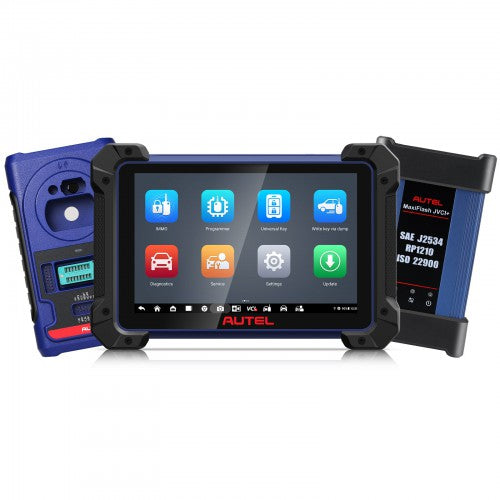

Autel IM608 VS Autel IM608 Pro VS IM608S II

The latest Autel key programmer scanner tool is the Autel IM608 series. The Autel IM608 series includes Autel IM608, Autel IM608 Pro, and Autel IM608S II(Autel IM608S II=Autel IM608Pro II). Here we will explain the hardware updates and software upgrades of Autel IM608 VS Autel IM608 Pro VS IM608S II.

The Autel im608 Key Programming Tool Scanner is a touchscreen tablet that combines state-of-the-art key programming and immobilizer capabilities with OE-level diagnostic and service capabilities, making it ideal for automotive technicians and locksmiths. Among them, Autel IM608S II, also called Autel IM608 Pro II, is the most advanced all in one key programming tool.

Product Model		IM608 PRO II (IM608S II)	IM608 Pro	IM608
Product Model
Accessories	VCI	JVCI+	JVCI	JVCI
Accessories	Programmer	XP400Pro	XP400Pro	XP400
Hardware Configuration	CPU	Qualcomm SDM660 Octa-core Processor 4x 2.2 GHz(A73) 4x 1.8 GHz(A53)	Samsung Exynos T5260 6-Core Processor: 4x 1.3 GHz(A7) 2x 1.7 GHz(A15)	Samsung Exynos hexa-core Processor: 4x 1.3 GHz(A7) 2x 1.7 GHz(A15)
	OS	Android 10.0	Android™ 4.4.2, KitKat	Android™ 4.4.2, KitKat
	Memory	4 GBRAM+128GB FLASH	2 GBRAM+64GB FLASH	2GB RAM & 64GB On-board Memory
	Display	10.1 inches	10.1 inches	10.1-inch
	Resolution	1920*1200	1920*1200	1920*1200
	Battery	3.8V 15000 mAh	3.8V 15000 mAh	3.8V 15000 mAh
	BT	BT V5.0 + BR/EDR	BT V2.1 + EDR	BT V2.1 + EDR
	DoIP	Yes	Adapter required	Adapter required
	CANFD	Yes	Adapter required	Adapter required
diagnostic function	Basic functions	Full Function	Full Function	Full Function
	Coding	Yes	Yes	Yes
	Programming	Mercedes-Benz BMW system	Mercedes-Benz BMW system	Mercedes-Benz BMW system
IMMO Functions	Matching device	Full Function	Full Function	Full Function
	Programmer	EEPROM reading and writing, MCU reading and writing	EEPROM reading and writing, MCU reading and writing	EEPROM reading and writing, MCU reading and writing
	Key tool	Yes	Yes	Yes
Remote expert	/	Yes	No	No

What is the difference between Autel IM608 VS Autel IM608 Pro?

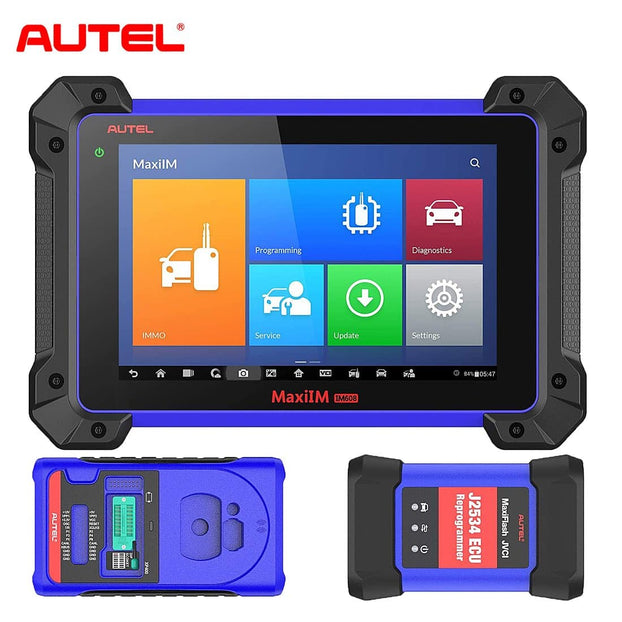

Autel IM608 and Autel IM608 Pro scanners are almost identical in terms of hardware system and software. The difference lies in the included programmer. Autel IM608 is combined with the programmer XP400, Autel IM608 Pro is combined with the programmer XP400 Pro.

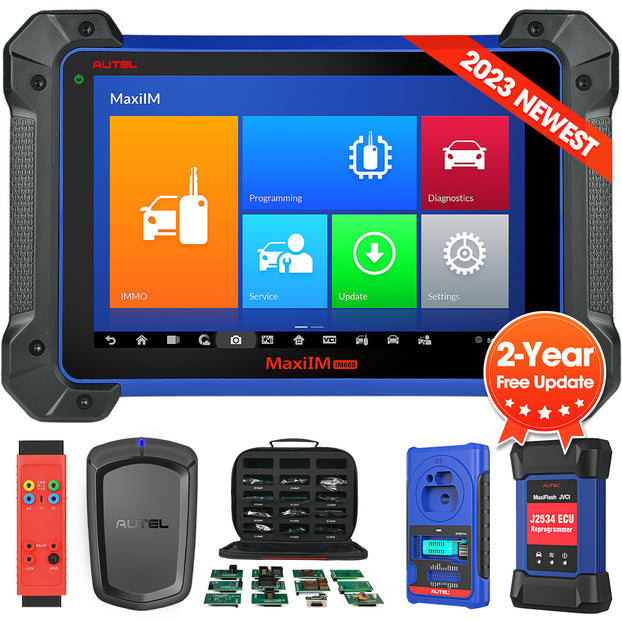

IM608 includes the XP400 programmer.
IM608 Pro includes the XP400 Pro, which supports more EEPROM/MCU chips and is more powerful.

Choose IM608 Pro if you want broader chip compatibility for key programming.

What is the difference between Autel IM608 Pro VS IM608S II?

Autel IM608 Pro VS IM608S II/IM608Pro II scanners are very different, with ground-breaking upgrades in software and hardware. For automotive locksmiths, IM608S II (IM608 Pro II) has more complete functionality and more comprehensive coverage.

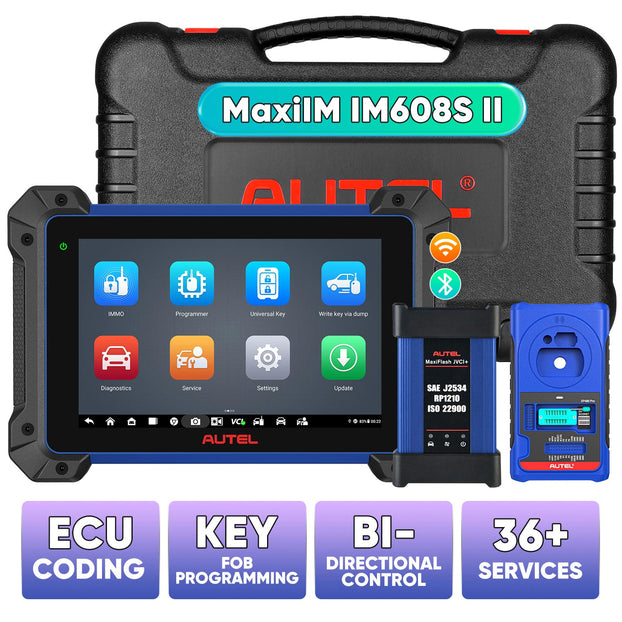

IM608S II has been upgraded:

1. Processor (Samsung Exynos T5260 6-Core Processor vs Qualcomm Octa-core)

2. RAM (2GB vs 4GB)

3. BT Version (2.1vs 5.)

4. OS (Android 4.4 vs Android 10)

5. DoIP and CANFD support (Needing adapters vs Built-in)

6. More complete IMMO/key programming support

Autel IM608 VS IM608 PRO II
