The tire pressure monitoring system (TPMS) is one of the many systems in a car that directly affects driving safety, as it is closely related to the tires. Therefore, having a reliable TPMS tool is crucial, as it can help you diagnose the cause of TPMS system malfunctions and assist in replacing faulty TPMS sensors and other components.
With so many TPMS tools on the market, how do you choose the right one? Autel and Xtool are both excellent automotive diagnostic tools and are often compared. Today, we will conduct a detailed comparison of two popular TPMS tools from these two brands: Autel MP808Z TS vs. Xtool IP819TP, to help you make an informed purchasing decision.
Brief Introduction
Overview of Autel MP808Z TS
The Autel MP808Z TS is an OBD2 scanner that combines diagnostic capabilities with comprehensive professional TPMS functions. It boasts powerful hardware specifications, including a quad-core processor, a seven-inch large screen, and a 5000mAh battery.
It also supports OE-level full-system diagnostics, active tests, ECU coding, and other advanced functions. It's an all-in-one automotive diagnostic tool suitable for DIY car owners and small auto repair shops.

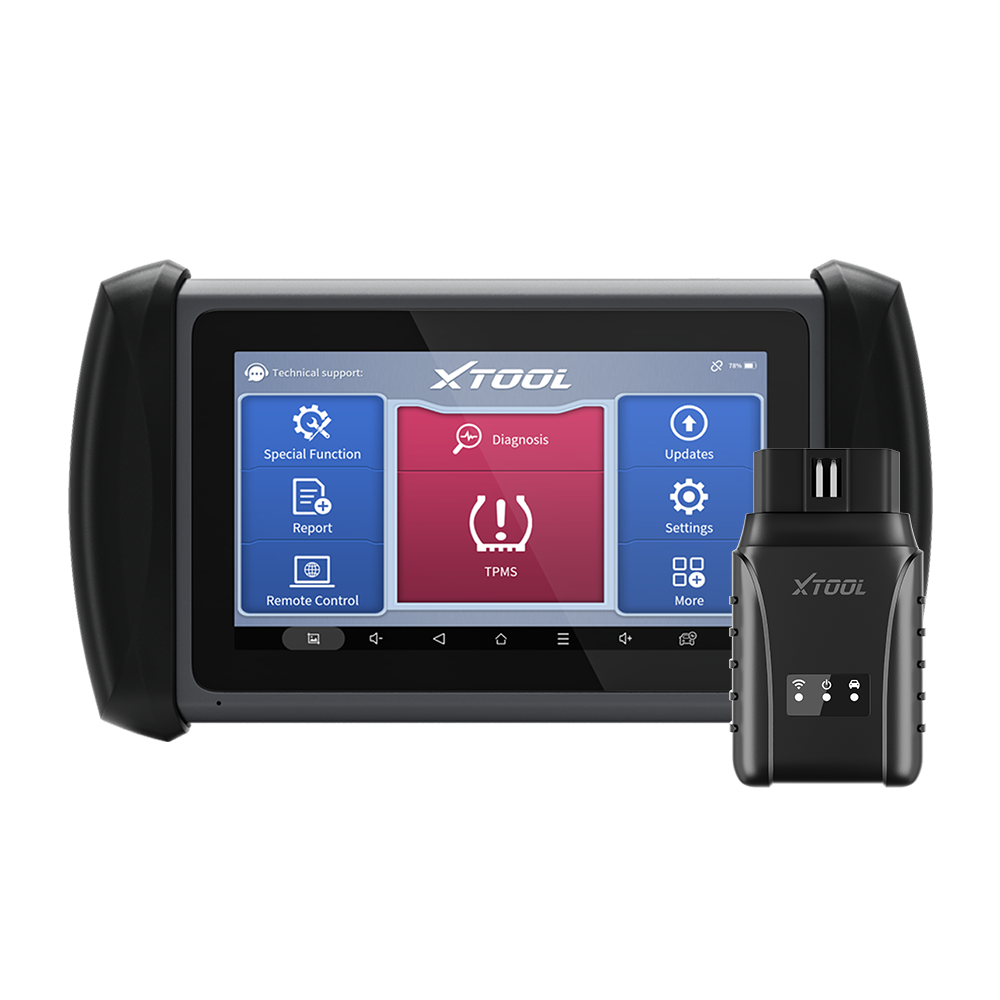

Overview of Xtool IP819TP
InPlus IP819TP is an automotive TPMS diagnostic system with a 7-inch LCD display, integrated Android OS, and a highly-customized diagnosis interface. With an integrated TP module, IP819TP provides various TPMS diagnosis functions. It also supports full OBDII function and automotive diagnostics for all systems for the vehicle. IP819TP also comes with 31 common services functions.
Autel MP808Z TS vs Xtool IP819TP: Comparison Chart
| Item | Autel MP808Z TS | Xtool IP819TP |
| Image |  |
 |
| Price | $729.00 | $449.00 |
| Hardware | ||
| Processor | Quad-core processor (1.8 GHz) | 4 Core 1.50GHz |
| Screen Size | 7-inch | 7-inch |
| Screen Resolution | 1024 x 600 | 1024×600 |
| Battery | 5000mAh | 2500mAh |
| Memory | 4GB RAM & 64GB ROM | 2G RAM, 32G ROM |
| VCI | MaxiVCI Mini | VCI BOX |
| Connectivity | Mini USB 2.0 USB 2.0 Wi-Fi Bluetooth HDMI Type A Micro SD card (supports up to 64 GB) |
USB Type-C BT 4.2 WIFI 2.4/5G |
| Weight | 885 g (2.31 lbs.) | / |
| Software | ||
| Operating System | Android 11.0 | Android 10 |
| Vehicle Coverage | over 80 U.S., Asian, and European makes (1996-newer) | Covers 98% of vehicles 4,000+ models worldwide |
| Update | 2 Years Free | 3 Years Free |
| FCA & Renault SGW | ✔ | ✘ |
| Auto VIN | ✔ | ✔ |
| DOIP/CAN FD Protocol | ✘ | Just CAN FD |
| Diagnostic and Service | ||
| Diagnostic Systems | All Systems | All Systems |
| Services | 32+ | 36+ |
| Active Tests | ✔ | ✔ |
| ECU Coding | ✔ | ✔ |
| Hidden Feature Activation | ✔ | ✔ |
| TPMS Fuctions | ||
| Activate,Read,Relearn TPMS Sensors |
✔ | ✔ |
| Programming Methods | ✔ | ✔ |
| OBDII Relearn Automatic Relearn Stationary Relearn |
✔ | ✔ |
| TPMS Retrofitting | ✔ | ✘ |
| Exclusive TPMS Status Screen | ✔ | ✔ |
| Indicate Sensor OE Part Number |
✔ | ✔ |
| Check Sensor Information(ID,Battery,etc.) | ✔ | ✔ |
| Tire Pressure Placard Value Reset |
✔ | ✔ |
| Read/Clear Codes for TPMS System |
✔ | ✔ |
| Extended Functionality | ||
| Battery Test | ✔(with BT508) | ✘ |
| Endoscope Functions | ✔(with MV108S) | ✘ |
| Key Programming | ✘ | ✔ |
Autel MP808Z TS vs Xtool IP819TP: Key Differences
The Autel MP808Z TS and Xtool IP819TP have many similarities, such as both being 7-inch TPMS tools, supporting bidirectional control functions, and possessing advanced ECU coding and hidden feature unlocking capabilities. So, what are the key differences between them? Let's take a look.
Hardware Configuration Differences
1. Battery Capacity
- Autel MP808Z TS: 5000mAh
- Xtool IP819TP: 2500mAh
According to the information found, the Xtool IP819TP has a battery capacity of 2500 mAh, which is relatively small. This results in a shorter battery life, making it less suitable for outdoor work and unsuitable for use by vehicle fleets. Additionally, it may experience power outages when dealing with complex tasks.
2. Memory
- Autel MP808Z TS: 64GB
- Xtool IP819TP: 32GB
The Autel MP808Z TS TPMS tool has a larger memory capacity, which means it can store more diagnostic reports. This also allows for retaining more diagnostic and special functions for various car brands during software updates, making it ideal for small auto repair shops that need to diagnose and repair vehicles of different makes and models.
Autel MP808Z TS Hardware Configuraton
Software Differences
1. Operating System
- Autel MP808Z TS: Android 11.0
- Xtool IP819TP: Android 10.0
The Autel MP808Z TS features a more advanced operating system, which ensures optimized background process management and memory allocation. This results in greater stability during prolonged diagnostic sessions, continuous scanning of multiple ECUs, and bidirectional control operations, with a lower probability of freezing or crashing.
2. Free Software Update Period
- Autel MP808Z TS: 2 Years
- Xtool IP819TP: 3 Years
Compared to the Autel MP808Z TS, the Xtool IP819TP offers three years of free software updates, making it more suitable for long-term investment and resulting in lower long-term ownership costs.
3. FCA and Communication protocol
- Autel MP808Z TS: FCA & Renault SGW
- Xtool IP819TP: CAN FD
The Autel MP808Z TS supports secure gateway unlocking, enabling factory-level diagnostics and covering a wider range of vehicle models. The Xtool IP819TP supports the CAN FD communication protocol, allowing it to cover more modern vehicle models.
Autel MP808Z TS Supports FCA & Renault SGW
TPMS and Extended Functions Differences
- Autel MP808Z TS: Support TPMS Retrofitting, Battery Test and Endoscope Functions
- Xtool IP819TP: Support Key Programming
The Autel MP808Z TS supports TPMS retrofitting, a function that allows you to add and configure a TPMS system to vehicles that originally lacked one, or to reactivate/adapt the TPMS system after replacing relevant components. It also supports extended functions such as battery testing and borescope inspection, enabling more thorough inspections.
The Xtool IP819TP supports key programming functions, including programming new key fobs, reading PIN codes, adding smart keys, and remote learning.
Autel MP808Z TS vs Xtool IP819TP: Which TPMS Tool Wins?
Based on an overall comparison, I still cannot definitively say which TPMS tool is the ultimate winner, as both scanners have their own advantages and disadvantages. Finding the one that best suits your needs is what you should prioritize.
Choose Xtool IP819TP: If you have a limited budget, you can consider this model from Xtool. Its hardware specifications may not be outstanding, but its diagnostic and TPMS functions are sufficient to meet your basic needs, and it can even perform key programming, although only for certain vehicles.
Choose Autel MP808Z TS: If you are a small auto repair shop or a DIY car enthusiast, you can choose this Autel scanner. Its hardware configuration ensures a longer lifespan, and its wide vehicle coverage can meet the needs of various repair jobs. Furthermore, beyond just diagnostic functions, you also get professional TPMS capabilities, allowing you to expand your business.
