Autel offers a wide range of scanners, from those specifically designed for anti-theft systems to those for tire pressure monitoring systems, as well as tablets that integrate with all diagnostic services for multi-functionality.
Today, we'll compare and analyze three of the best-selling Autel TPMS diagnostic tools (those ending in TS): the Autel MP900TS, MK900TS, and MS906Pro TS, to determine which Autel TPMS tool is the best.
All three scanners offer professional TPMS (Transmission and Maintenance Management) functions and include diagnostic and maintenance services for the entire system. So what are the differences between them? Let's take a look.
Overview of Three Autel TPMS Tools

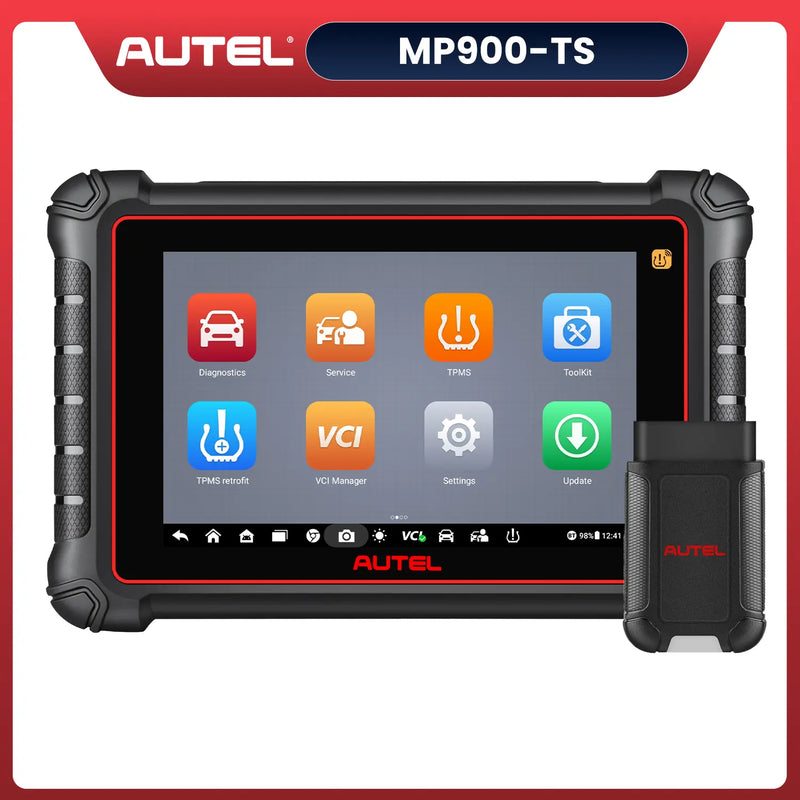

Autel MaxiPRO MP900-TS
The Autel MP900TS is an OBD II scanner in the Autel 900 series, featuring full TPMS diagnostic capabilities. This TPMS diagnostic tool boasts a powerful configuration including a quad-core processor, Android 11.0 operating system, an 8-inch screen, and 64GB of internal storage.
It supports full system-wide factory-level diagnostics, as well as advanced features such as over 40 service resets and ECU coding.
Key Features:
- Global Version, No Area Restriction
- Support Both Full System Diagnosis and Complete TPMS Functions
- 8-inch LCD Touch Screen with 1280*800 Display Quality, Android 11, 7700 mAh Battery Capacity
- Bi-Directional Control & Active Tests
- Online ECU Coding & Hidden Feature Activation
Autel MaxiCOM MK900-TS
The Autel MK900TS is a powerful combination of a tire pressure monitoring system (TPMS) tool and a diagnostic scanning tool. This OBD II scanner boasts advanced hardware and comprehensive TPMS and diagnostic capabilities, excelling in both vehicle diagnostics and TPMS functions. For repair shops or technicians, the Autel MK900TS is undoubtedly an excellent choice.
Key Features:
- OE-Level All System Diagnostics
- 3000+ Active Tests(Bi-Directional Control)
- Support CAN FD/DoIP Protocols
- Powerful TPMS Diagnostic System
- 40+ Popular Maintenance Services
Autel MK900TS Highlight Features

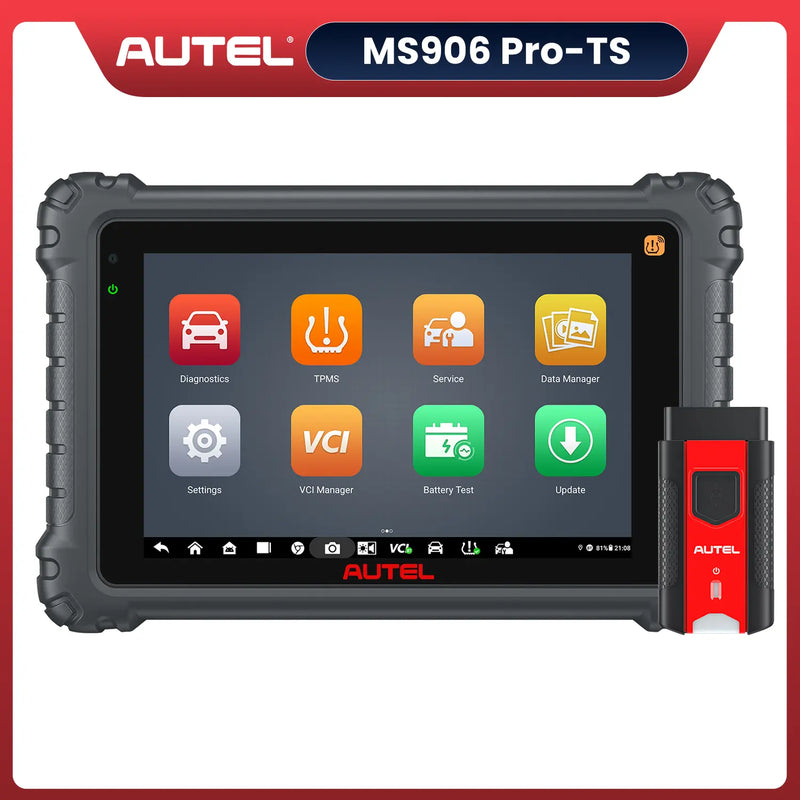

Autel Maxisys MS906 Pro-TS
The Autel MS906 Pro TS is a top-tier expert-level scan tool in 2026. Belonging to the Autel MaxiSys series of scanners, the Autel MS906 Pro TS is an Autel scanning tool with full TPMS functionality. It boasts a powerful hardware configuration including an octa-core processor, Android 10.0 operating system, 128GB of RAM, and an 11,600 mAh battery.
In addition to hardware, the Autel MS906 Pro TS also boasts comprehensive software features, including full system diagnostics, bidirectional control, ECU coding, and all TPMS functions, including TPMS system diagnostics, activation, programming, and relearning of TPMS sensors.
Key Features:
- Professional Full-System Diagnostics
- Advanced Active Tests & System Calibrations
- Online ECU Coding & Hidden Feature Activation
- Complete TPMS Diagnostics / Works With Advanced Relearn Procedures
- Free 1-Year Software Updates
Autel MP900TS vs MK900TS vs MS906Pro TS: Comparison Chart
| Item | Autel MP900TS | Autel MK900TS | Autel MS906 Pro TS |
| Image |  |
 |
 |
| Price | $949.00 | $779.00 | $1,299.00 |
| Hardware | |||
| Processor | Quad-core processor | Quad-core processor (1.8 GHz) | Octa-core processor (2.2 GHz + 1.8 GHz) |
| Screen Size | 8-inch LCD screen | 8-inch LCD screen | 8.0-inch TFT-LED capacitive touch screen |
| Screen Resolution | 1280 x 800 | 1280 x 800 | 1920 x 1200 |
| Memory | 4 GB RAM & 64 GB ROM | 4 GB RAM & 64 GB ROM | 4 GB RAM & 128 GB |
| Baterry | 7700 mAh | 7700 mAh | 11,600 mAh |
| Camera | 8 MP | 8 MP | Rear: 16 MP Front: 16 MP |
| VCI | MaxiVCI V150 | MaxiVCI V150 | MaxiVCI V200 |
| Connectivity | USB Type-C USB 2.0 Wi-Fi Bluetooth Mini SD card (supports up to 64 GB) |
USB Type-C USB 2.0 Wi-Fi Bluetooth Mini SD card (supports up to 64 GB) |
Wi-Fi (802.11 b/g/n) USB: 2.0 Mini USB 2.0 Bluetooth V2.1+EDR, Class1 HDMI SD Card (support up to 32 GB) |
| Weight | 998 g (2.2 lbs) | 998 g (2.2 lbs) | 962 g (2.12 lb.) |
| Software | |||
| Operating System | Android 11 | Android 11 | Android 10 |
| Vehicle Coverage | U.S, Asian and European 1996 and Newer |
U.S, Asian and European 1996 and Newer |
U.S, Asian and European 1996 and Newer |
| Update | One Year Free | One Year Free | One Year Free |
| FCA & Renault SGW | ✔ | ✔ | ✔ |
| Auto VIN | ✔ | ✔ | ✔ |
| DOIP/CAN FD Protocol | ✔ | ✔ | ✔ |
| Diagnostic and Service | |||
| Diagnostic Systems | All Systems | All Systems | All Systems |
| Services | 40+ | 40+ | 36+ |
| Active Tests | ✔ | ✔ | ✔ |
| ECU Coding | ✔ | ✘ | ✔ |
| Hidden Feature Activation | ✔ | ✘ | ✔ |
| TPMS Fuctions | |||
| Activate,Read,Relearn TPMS Sensors |
✔ | ✔ | ✔ |
| Programming Methods | ✔ | ✔ | ✔ |
| OBDII Relearn Automatic Relearn Stationary Relearn |
✔ | ✔ | ✔ |
| Relearn Procedure Guide | ✔ | ✔ | ✔ |
| TPMS Retrofitting | ✔ | ✘ | ✘ |
| Exclusive TPMS Status Screen | ✔ | ✔ | ✔ |
| Indicate Sensor OE Part Number |
✔ | ✔ | ✔ |
| CheckMX-Sensor Information(ID,Battery,etc.) | ✔ | ✔ | ✔ |
| Tire Pressure Placard Value Reset |
✔ | ✔ | ✔ |
| Read/Clear Codes for TPMS System |
✔ | ✔ | ✔ |
| Extended Functionality | |||
| Compatible with BT506 | ✔ | ✔ | ✔ |
| Compatible with MV108S | ✔ | ✔ | ✔ |
| ADAS Activation | ✘ | ✘ | ✔ |
Autel MP900TS vs MK900TS vs MS906Pro TS: Key Differences
Hardware Configuration Differences
1. Processor
- Autel MP900TS and MK900TS: Quad-core processor
- Autel MS906Pro TS: Octa-core processor (2.2 GHz + 1.8 GHz)
These three scanners have slightly different processors. The 900 series scanners all use quad-core processors, while the MS906Pro TS uses an octa-core processor. The octa-core processor offers faster speeds and more stable multitasking, providing a smoother, more advanced user experience.
2. Battery
- Autel MP900TS and MK900TS: 7700mAh
- Autel MS906Pro TS: 11600mAh
Of these three Autel scanners, the Autel MK906 Pro TS has the largest battery capacity, ensuring longer battery life and making it more suitable for carrying around for work. Furthermore, it guarantees sufficient power when handling complex tasks, preventing sudden interruptions.
3. Memory
- Autel MP900TS and MK900TS: 4 GB RAM & 64 GB ROM
- Autel MS906Pro TS: 4 GB RAM & 128 GB
The Autel MS906Pro TS boasts a larger memory capacity. 128GB means you can store plenty of data, whether it's diagnostic reports or diagnostic software packages for different vehicle brands; you can store and retain more, while also reserving ample space for upgrades and updates. This is a crucial hardware requirement for auto repair shops.
Autel MS906 Pro TS Hardware Configuration
Diagnostic and Services Differences
1. ECU Coding
- Autel MP900TS and MS906Pro TS: Support
- Autel MK900TS: Not Supported
The Autel MP900TS and MS906 Pro TS support advanced ECU coding and the ability to activate hidden settings. These features can further enhance the comfort and driving experience of the vehicle, while also helping you solve more complex problems and improve vehicle performance.
2. Service Quantity
- Autel MP900TS and MK900TS: 40+
- Autel MS906Pro TS: 36+
These three scanners support slightly different numbers of service functions. However, the specific supported service functions are directly related to factors such as the car's brand and model; the table only shows the maximum number of supported services. If you are unsure whether your preferred scanner supports the service functions you need, please contact us for confirmation.
Autel MP900TS Service Functions
Extended Functions Differences
ADAS Activation
- Autel MP900TS and MK900TS: Not Supported
- Autel MS906Pro TS: Support
The Autel MS906 Pro TS supports ADAS activation, which enables ADAS system calibration, including adaptive cruise control, night vision system, and lane departure warning, helping drivers achieve safer, more alert, and more precise driving, ensuring driving safety, and adapting to the advanced driving functions of the new era.
Which Autel TPMS Tool Is Best: MP900TS vs MK900TS vs MS906Pro TS?
It's quite obvious that the Autel MS906 Pro TS has superior hardware configuration and software features compared to the other two, but it's also more expensive. It's arguably the best TPMS tool among the three. However, the best isn't necessarily the best for you.
- Choose the Autel MP900TS: If you need ECU coding functionality but have a relatively limited budget, you can consider this Autel scanning tool. The MP900TS is a high-performance, all-around entry-level scanner that is suitable for DIY car owners and small repair shops.
- Choose the Autel MK900TS: If you don't need ECU coding capabilities but require TPMS functionality and also want basic diagnostic capabilities, this scanner is more suitable for you. The MK900TS is an Autel TPMS tool that balances advanced TPMS and diagnostics, meeting your daily diagnostic and TPMS programming needs.
- Choose the Autel MS906 Pro TS: If you have a sufficient budget and higher demands for both hardware and software functionality, you might consider this Autel scanner. Compared to the other two models, it boasts more powerful hardware and richer software features, helping you solve complex problems and making it suitable for professional repair shops and senior technicians.
Conclusion
The Autel MK900TS, MP900TS, and MS906 Pro TS are all best-selling TPMS (Transportation, Maintenance, and Storage) scanners from Autel. Each has its own advantages and disadvantages; the choice depends on your individual needs. We only provide purchasing guidance; the final decision is yours—the one that best suits your requirements is the best choice.
