Autel MS919 S2 vs MaxiSys Ultra: Which Scanner to Buy in 2026?
✅ Autel MS919 S2 – Best for workshops needing faster performance, AI-assisted
diagnostics,
and modern workflow efficiency.
✅ MaxiSys Ultra – Ideal for technicians who prefer a large 12.9-inch display
and a stable, proven platform.
This comparison highlights hardware, ECU programming, topology mapping, portability, and
workflow advantages to help you choose the right scanner in 2026.
Autel offers a wide range of diagnostic tools, and their features vary by model. Some Autel scanners are priced similarly; for example, the Autel MS919 S2, which was new released in 2026, costs only $200 less than the powerful, long-established Maxisys Ultra.
So, how does this $200 price difference translate to hardware specifications and diagnostic capabilities? Which one should you choose? In today’s article, we’ll take a detailed look at the key features and significant differences between these two Autel diagnostic tools, and provide you with sound advice on how to make the right choice as a consumer.
Autel MS919 S2 vs MaxiSys Ultra Overview

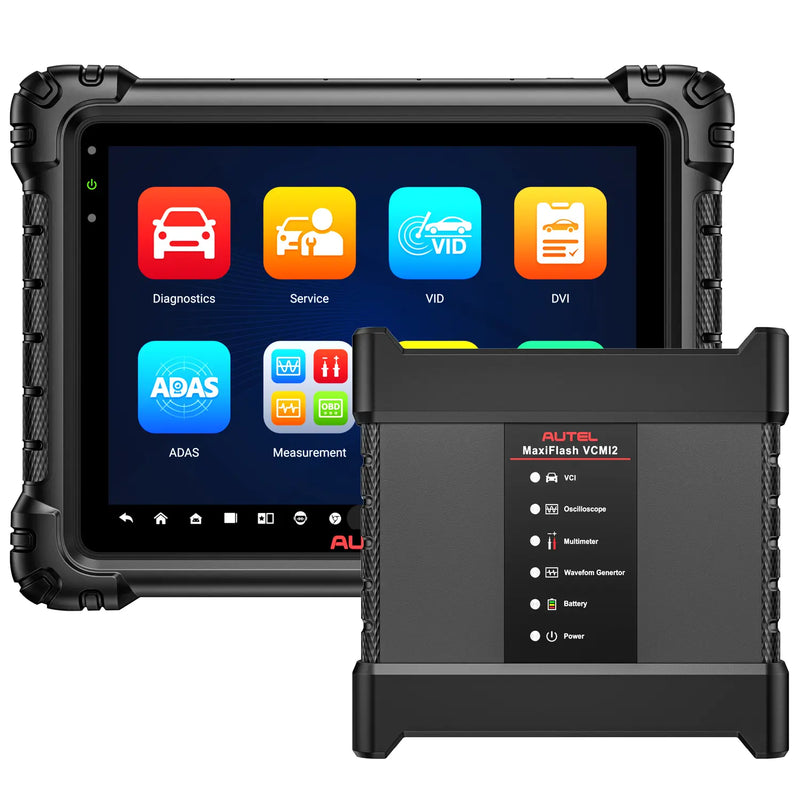

What Is the Autel MS919 S2?
The Autel MaxiSYS MS919 S2 is a powerful automotive diagnostic scanner designed specifically for professional technicians and advanced repair shops. Equipped with the intelligent MAX AI Assistant, Topology Diagnostic Map 3.0, and the VCMI 2 six-in-one diagnostic interface, the Autel MS919 S2 integrates professional testing capabilities and includes innovative remote expert features.
Key Features:
- Smarter Diagnostics with MAX AI Assistant
- Topology Diagnostics Map 3.0
- VCMI 2 Six-in-One Diagnostic Interface
- Motor TruSpeed Repair (Subscription Required)
- OE-Level Full System Diagnostics
- Bi-Directional Control
- Online ECU Coding & Programming
Autel MS919 S2 Key Feature Overview

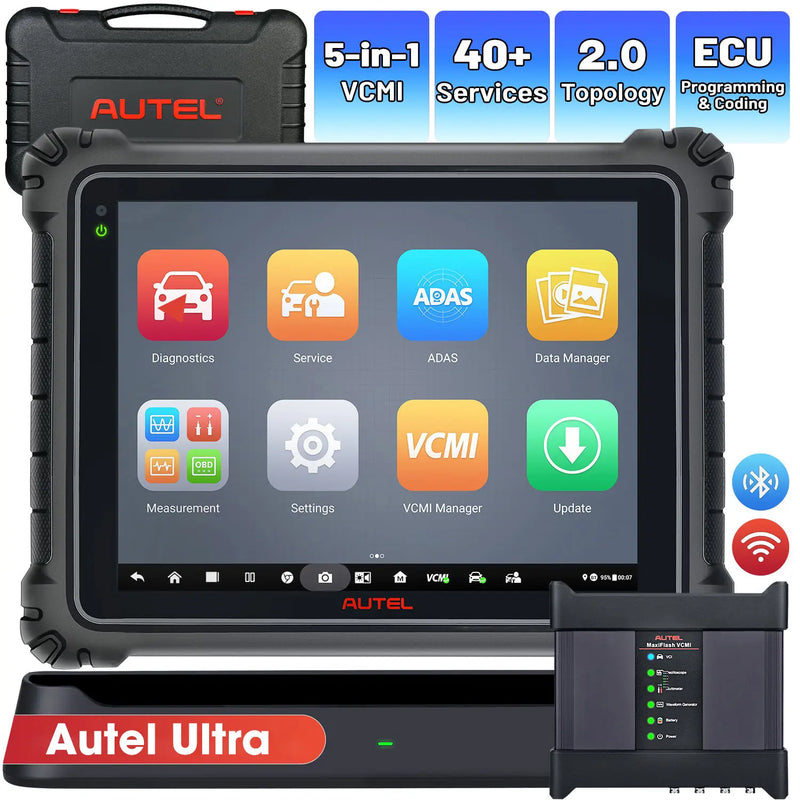

What Is the Autel MaxiSys Ultra?
The Autel MaxiSys Ultra is Autech’s most ambitious diagnostic tablet, designed to maximize technician productivity. It features a 13-inch touchscreen tablet running the Android 7.0 operating system, equipped with an octa-core processor, and the all-new MaxiFlash VCMI, which can function as a 4-channel oscilloscope, signal generator, multimeter, and CAN bus tester.
Key Features:
- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
- Oscilloscope Preset Guided & Component Tests / Waveform Library
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Split Screen Multi-Application Function / Dual Wi-Fi Connection
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
Autel MaxiSys Ultra Key Features Overview
Autel MS919 S2 vs MaxiSys Ultra: Hardware and Design Comparison
When comparing the Autel MaxiSYS MS919 S2 and Autel MaxiSys Ultra Diagnostic, hardware performance and design are two of the biggest factors that separate these premium diagnostic scanners. Both are designed for professional repair shops, but the MS919 S2 introduces newer-generation hardware, faster connectivity, and a more future-ready operating system.
| Item | Autel MS919S2 | Autel MaxiSys Ultra |
| Image |  |
 |
| Price | $3,999 | $3,799 |
| Hardware | ||
| Processor | Octa-core processor | Octa-core processor |
| Screen | 11-inch | 12.9-inch |
| Resolution | 2176 x 1600 | 2732 x 2048 |
| Battery | 15000 mAh | 18000 mAh |
| Camera | Rear: 16 Megapixel Front: 16 Megapixe |
Rear: 16 Megapixel Front: 5 Megapixe |
| Memory | 12 GB RAM & 256 GB | 4 GB RAM & 256 GB |
| Connectivity | Wi-Fi x 2 (802.11 a/b/g/n/ac/ax 2x2 MIMO) BT V5.2 + EDR GPS USB 2.0 (Two USB host Type A) USB Type C (used to charge the tablet or connect to a PC for data transfer) HDMI 2.0 SD Card (support up to 256 GB) |
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB) |
| VCI | MaxiFlash VCMI2 | MaxiFlash VCMI |
| Oscilloscope | 4 Channel | 4 Channel |
| Weight | 1656.5 g (3.65 lbs.) | 2.18kg (4.81 lb.) |
Display and Tablet Performance
The MaxiSys Ultra features a larger 12.9-inch display, making it easier to view topology maps, oscilloscope waveforms, wiring diagrams, and live data simultaneously. Many technicians still prefer the Ultra for long diagnostic sessions because the larger screen reduces eye strain in busy workshop environments.
The MS919 S2, however, focuses on speed and responsiveness rather than screen size. It uses an upgraded Android 13 operating system, a faster 2.7GHz octa-core processor, and 12GB RAM for smoother multitasking and faster ECU communication. Compared with the older Ultra platform, menu navigation and vehicle scanning feel noticeably quicker.
Battery Life and Build Quality
Both scanners are designed for heavy professional workshop use and feature rugged tablet-style construction with thick protective housings. They are built to survive daily movement around lifts, engine bays, and calibration areas.
The MS919 S2 has a 15,000 mAh battery with USB-C fast charging and a lighter 11-inch design, making it easier to carry and recharge quickly during busy workflows. The MaxiSys Ultra features a larger 12.9-inch display; it is heavier and consumes more power, but offers a more stable workstation experience. While it is not portable, it is better suited for stationary use.
VCMI Differences
The Autel MaxiSYS MS919 S2 comes with the advanced VCMI 2, a six-in-one diagnostic interface that combines multiple professional tools in a single device. It integrates a Vehicle Communication Interface (VCI), oscilloscope, multimeter, waveform generator, CAN Bus tester, and a Remote Expert device, providing enhanced capabilities for multi-network diagnostics and high-speed ECU communication.
The Autel MaxiSys Ultra, on the other hand, features a slightly older 5-in-1 VCMI, which includes the VCI, oscilloscope, waveform generator, multimeter, and CAN Bus tester. While it supports advanced diagnostics, real-time data analysis, and bi-directional control, it lacks the integrated Remote Expert functionality and some of the modern optimizations found in the MS919 S2’s VCMI 2.
In summary: the MS919 S2 offers a more versatile and future-proof VCMI solution, while the Ultra provides solid core capabilities suitable for traditional workshop diagnostics.
Autel MS919 S2 VCMI2 Device Overview
Boot Speed and System Responsiveness
One of the biggest real-world differences between these tools is overall system speed.
The MS919 S2 is noticeably faster during:
- Vehicle auto scans
- Topology mapping
- Live data loading
- ECU communication
- Software startup
- Multitasking between oscilloscope and diagnostics
The MaxiSys Ultra still performs very well, but its older hardware platform is less future-proof compared to the newer MS919 S2. Some technicians still prefer the Ultra because of its larger screen and mature software ecosystem, especially for advanced electrical diagnostics and ADAS workflows.
Autel MS919 S2 vs MaxiSys Ultra: Diagnostic Capabilities Comparison
When it comes to diagnostic capabilities, both the Autel MS919 S2 and MaxiSys Ultra are powerful tools that offer a wide range of features. However, there are some differences in their diagnostic capabilities that may influence your decision on which one to buy.
| Software | ||
| Operating System | Android 13 | Android 7 |
| vehicle System Support | All Systems | All Systems |
| Read and Clear Codes | ✔ | ✔ |
| Live Data | ✔ | ✔ |
| Freeze Frame | ✔ | ✔ |
| I/M Readiness | ✔ | ✔ |
| Active Test | ✔ | ✔ |
| ECU Coding | ✔ | ✔ |
| ECU Programming | ✔ | ✔ |
| AI Assistant | ✔ | ✘ |
| Digital Vehicle Inspection | ✔ | ✘ |
| Live Data Fusion | ✔ | ✔ |
| Topology | 3.0 | 2.0 |
| Service Fuctions | 40+ | 40+ |
| vehicle Coverage | 150+ brands | 150+ brands |
| Language | Supports languages other than Asia Pacific |
Supports languages other than Asia Pacific |
| Security Gateway | ✔ | ✔ |
| DOIP | ✔ | ✔ |
| CAN FD | ✔ | ✔ |
| Update | 1 Year Free | 1 Year Free |
Core Diagnostic Functions (Same Level Performance)
Both scanners support full OE-level diagnostics across all systems, including:
- Read & clear DTCs
- Live data & freeze frame
- I/M readiness
- Active tests (bi-directional control)
- ECU coding & ECU programming
- Live data fusion
- 40+ service functions
- 150+ brand coverage
- DoIP, CAN FD, and Security Gateway access
- 1-year free software updates
In terms of basic and advanced diagnostics, both tools are essentially on the same professional level.
Key Feature Differences
Where they start to differ is in software intelligence and system visualization:
- AI Assistant
- MS919 S2: ✔
- MaxiSys Ultra: ✘
→ MS919 S2 provides smarter guided diagnostics and workflow assistance. - Digital Vehicle Inspection (DVI)
- MS919 S2: ✔
- MaxiSys Ultra: ✘
Autel MS919 S2 DVI Functions
- Topology Mapping
- MS919 S2: Topology 3.0
- MaxiSys Ultra: Topology 2.0
→ Better for workshop reporting and customer communication.
→ MS919 S2 offers more refined and faster network visualization.
The main difference is not in basic diagnostic power, but in software intelligence and topology generation.
- MS919 S2 → smarter diagnostics (AI + Topology 3.0 + DVI)
- MaxiSys Ultra → proven stable platform with strong core diagnostics
In real workshop use, the MS919 S2 is more workflow-oriented, while the MaxiSys Ultra remains a stable traditional flagship.
Which Scanner Should You Buy in 2026?
Choosing between the Autel MS919 S2 and the Autel MaxiSys Ultra comes down to your priorities, workflow, and budget in 2026. Both tools are capable professional diagnostic scanners, but they excel in slightly different areas.
🧰 Buy the Autel MS919 S2 If…
-
You want the most future-proof hardware
MS919 S2 has a newer CPU, more RAM, faster wireless (Wi-Fi 6/Bluetooth 5.2), and Android 13 — meaning smoother performance for years to come. -
Smart diagnostics and ma AItter to you
MS919 S2 includes AI Assistant and upgraded topology (3.0), which helps streamline diagnostic logic and save time. -
You value workflow efficiency
Digital Vehicle Inspection (DVI), faster charging, and improved communication make MS919 S2 better for busy multi-vehicle shops or mobile techs. -
Portability is important
Its lighter, more compact form factor makes it ideal if you regularly move between lifts or work remotely.
👉 Best for: Modern diagnostic environments, tech-driven workflows, and shops planning long-term growth.
Autel MS919 S2 and Ultra Buy Guide
🧰 Buy the Autel MaxiSys Ultra If…
-
You prefer a larger screen
The 12.9 inch display gives more room for split views — excellent for topology maps, waveform graphs, and simultaneous data streams. -
You want a proven, battle-tested platform
Ultra’s software has years of real workshop feedback and stable performance. -
Your focus is on traditional diagnostics
It handles the core OE functions — codes, live data, active tests, ECU coding/programming — just as well as MS919 S2. -
You work mainly in a fixed bay or workstation
Its larger size and screen make it feel like a “workstation tool” rather than a portable tablet.
👉 Best for: Techs who prioritize large visuals and long, stationary diagnostic sessions.
Conlusion
In summary, both the Autel MS919 S2 and the Autel MaxiSys Ultra are excellent diagnostic tools with their own strengths.
The MS919 S2 offers more modern hardware and smart features, making it a great choice for tech-savvy shops looking to future-proof their diagnostics. The MaxiSys Ultra, on the other hand, provides a larger screen and a proven software platform, ideal for those who prefer a more traditional diagnostic experience.
Consider your specific needs, workflow, and budget to make the best choice for your shop in 2026.
