Autel Ultra Lite S vs MS909 S2: Full Comparison Guide

Automotive diagnostic tools are indispensable in modern vehicle repair and maintenance. However, with so many brands and models available today—our Autel scanners, for example, include various series such as MaxiCheck, MaxiCOM, and MaxiSys—it can be hard to choose.

What are the differences between the newly released Autel MS909 S2 scanner (2026) and the long-standing bestseller, the Autel Ultra Lite S? If you’re torn between these two scanners, let’s take a closer look!

Autel Ultra Lite S vs MS909 S2: Brief Overview

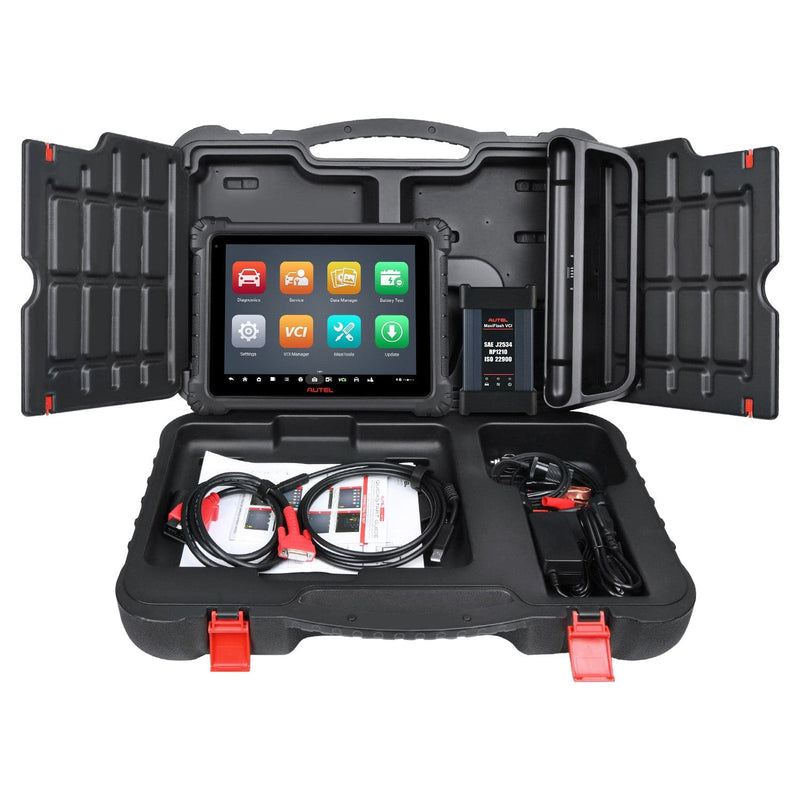

Autel MaxiCOM Ultra Lite S

The Autel Ultra Lite S is the most versatile diagnostic scanner in the Autel MaxiCOM series.

Not only does it feature outstanding hardware specifications—including a massive 12.9-inch display and an 18,000mAh battery—but it also offers advanced capabilities such as ECU programming and Motor TruSpeed Repair™ technology, identical to those found in the Autel MaxiSys Ultra. It is the ideal choice for professional technicians and large repair shops.

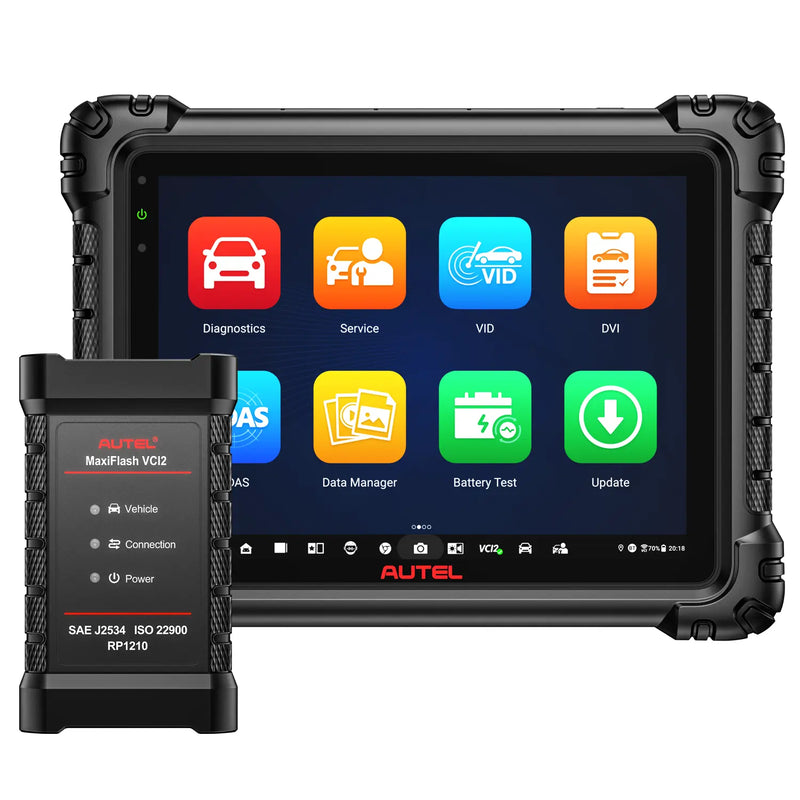

Autel MaxiSys MS909 S2

As one of the latest models in Autel’s 2026 S2 series, the Autel MS909 S2 is equipped with the same AI technology as the Autel Ultra S2, including an AI assistant and DVI functionality, which significantly boosts work efficiency and takes smart diagnostics to the next level.

In addition to its latest AI features, the Autel MS909 S2 also boasts powerful hardware specifications, including the latest Android 13.0 operating system and increased RAM.

Autel MS909 S2 Key Features Overview

Autel Ultra Lite S vs MS909 S2: Comparision Chart

Rather than constantly comparing the product pages for the two items, using a table is the most intuitive way to see their similarities and differences. The table below compares the hardware specifications, software, and diagnostic features of the two scanners:

Item	Autel Ultra Lite S	Autel MS909 S2
Price	$2,849.00	$3,299.00
Hardware
Processor	2.3GHz + 1.7GHz OCTA-CORE	2.7 GHz 8-core processor
Operating System	Android 7.0	Android 13
Screen Size	12.9-inch	11-inch
Screen Resolution	2732*2048	2176*1600
Battery	18000 mAh	15000 mAh
Memory	4 GB RAM & 256 GB	12 GB RAM & 256 GB
Camera	Rear: 16 megapixel, autofocus with flashlight Front: 5.0 megapixel	Rear: 16 Megapixel, autofocus with flashlight Front: 16 Megapixel
Vehicle Connection	MaxiFlash VCI	MaxiFlash VCI2
Connectivity	Wi-Fi x 2 (802.11 a/b/g/n/ac 2 x 2 MIMO) Bluetooth v.5.0 + EDR GPS USB 2.0 HDMI 2.0 SD card (supports up to 256 GB)	Wi-Fi x 2 (802.11 a/b/g/n/ac/ax 2x2 MIMO) BT V5.2 + EDR GPS USB 2.0 USB Type C HDMI 2.0 SD Card (support up to 256 GB)
Software & Features
Software Update	2 Year Free	1 Year Free
Automatic Detection	ScanVIN / Auto-VIN / Auto-Scan	ScanVIN / Auto-VIN / Auto-Scan
Topology Module Mapping	Topology 2.0	Topology Diagnostics Map 3.0
Vehicle Diagnostics	Passenger / Light Duty Some Medium Duty	Passenger / Light Duty Some Medium Duty
Basic & Special Functions	Domestic, Asian & European 1996 and Newer	Domestic, Asian & European 1996 and Newer
Service Resets	36+ Services Features	48+ Services Features
OBDII Test Modes	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6
System Diagnostics	Access All Modules In All Systems	Access All Modules In All Systems
Component Activations	Bi-directional Control	Bi-directional Control
Enhanced Functions	Advanced ECU Coding + Programming	Advanced ECU Coding + Programming
AI Assistant	✘	✔
Digital Vehicle Inspection	✘	✔

Note: All data in this table was sourced from online research. If you find any errors, please feel free to leave a comment so we can correct them.

Autel Ultra Lite S vs MS909 S2: Key Differences

Hardware Differences

While both scanners are equipped with powerful hardware, there are some key differences to note.

1. Screen
   The Autel Ultra Lite S and MS909 S2 differ in screen size and resolution; the Ultra Lite S features a larger screen and higher resolution. With its 12.9-inch display, it enables more detailed comparative analysis of multiple data streams and provides a more comprehensive view of topology diagrams.
2. Battery Capacity
   Both Autel scan tools have very large battery capacities, which directly affect their runtime. The Autel Ultra Lite S has a slightly larger battery capacity.
3. RAM
   Both Autel scanners have the same storage capacity of 256GB. However, the Autel MS909 S2 has a larger RAM capacity of 12GB. RAM directly determines the device’s operating speed, multitasking capabilities, and system stability.
4. Vehicle Connection Device
   The VCI modules in these two Autel scanners differ. Compared to the VCI, the MaxiFlah VCI2 offers enhanced communication capabilities, supports Bluetooth 5.0, provides better interference resistance, and delivers a more stable connection.

Autel Ultra Lite S Hardware Overview

Software and Features Differences

The Autel MS909 S2 and Ultra Lite S share many similarities in terms of software and diagnostic capabilities, such as support for bidirectional control, ECU programming, and Motor TruSpeed Repair. However, there are also the following differences:

1. Software Update
   The Autel Ultra Lite S offers two years of free software updates, while the MS909 S2 offers only one year of free software updates, resulting in higher long-term update costs.
2. Topology Module Mapping
   The topology mapping feature of the Autel MS909 S2 has been further upgraded. Compared to the Topology 2.0 version in the Ultra Lite S, Topology 3.0 displays information such as ECU descriptions, DTCs, location diagrams, and PINC network details on the right side, helping you quickly pinpoint the location of the fault.
3. Service Resets Functions
   The Autel MS909 S2 supports a wider range of service reset functions. However, the specific functions supported depend on the vehicle's make and model. Before purchasing, we recommend contacting customer service or clicking here to check the vehicle coverage list to confirm which functions are supported.
4. AI Features
   The Autel MS909 S2 supports AI features. Not only does it come with the MAX AI voice assistant, which frees up your hands and enables voice-controlled operation, but it also features AI-powered damage detection technology and provides intelligent repair recommendations, enhancing work transparency and customer satisfaction.

Autel MS909 S2 AI Assistant MAX

Autel Ultra Lite S vs MS909 S2: Which to Buy?

Who Should Choose the Autel Ultra Lite S?

The Autel Ultra Lite S is an excellent choice for those who prioritize a larger screen and longer battery life. It is ideal for technicians who need to analyze multiple data streams simultaneously or require a more comprehensive view of topology diagrams.

Additionally, if you prefer a device with a longer free software update period, the Ultra Lite S offers two years of updates compared to the MS909 S2's one year.

Who Should Choose the Autel MS909 S2?

The Autel MS909 S2 is a great option for those who value the latest AI features and enhanced software capabilities. If you want to experience the benefits of AI-powered diagnostics, such as voice control and intelligent repair recommendations, the MS909 S2 is the better choice.

Additionally, if you require a device with a more powerful processor and larger RAM for faster performance, the MS909 S2 offers these advantages over the Ultra Lite S.

Conclusion

In summary, both the Autel Ultra Lite S and MS909 S2 are powerful diagnostic tools with their own strengths and weaknesses. The Ultra Lite S excels in screen size, battery life, and software update duration, while the MS909 S2 offers the latest AI features, enhanced software capabilities, and improved hardware specifications.

When choosing between the two,consider your specific needs and preferences, such as whether you prioritize a larger screen and longer battery life or the latest AI features and enhanced performance. Both scanners are excellent choices for professional technicians and repair shops, so you can't go wrong with either one!
