Common Symptoms and Diagnosis of PCM Malfunctions

Introduction

The PCM (Powertrain Control Module) is the "brain" of modern vehicles. It not only receives data from sensors and other control modules but also directly controls core functions such as ignition timing, fuel injection, emissions, idle speed, and throttle control.

In addition, the PCM performs a learning process after repairs or component replacements, helping the vehicle recalibrate its data and ensure smooth operation. However, the most common symptom of a PCM problem is a loss of engine power and an illumination of the "Check Engine" light on the instrument panel. The vehicle may also experience poor fuel economy, excessive emissions, and abnormal shifting.

To accurately determine whether a PCM malfunction is present, visual inspection and driving experience alone are often insufficient. Professional diagnostic tools such as the Autel Scanner can read vehicle fault codes and view real-time data streams, helping you distinguish between a PCM fault and related issues such as sensors or wiring.

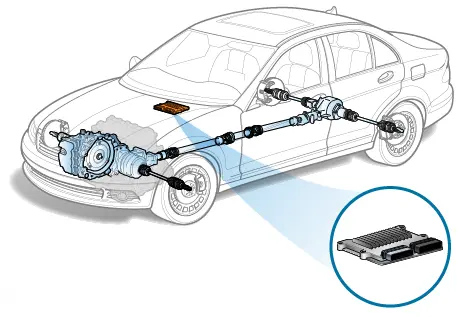

The location of the PCM in the car.

Common Symptoms of PCM Malfunction

1. Check Engine Light Illumination

When the Check Engine light appears on the dashboard, it's often the first sign of a PCM malfunction. However, it's important to note that this light can also be related to other issues, such as a faulty oxygen sensor or poor wiring connections.

Using an Autel scanner to read fault codes can quickly pinpoint the source of the problem and confirm whether the light is related to the PCM.

2. Poor Engine Performance

The PCM is the control center for the ignition and fuel systems. If the PCM cannot properly process data from the throttle position sensor, camshaft position sensor, and other components, it can cause:

• Loss of power
• Idle jitter
• Sluggish acceleration
• Difficulty starting

These problems not only affect the driving experience but can also gradually worsen. Using an Autel advanced diagnostic tool (such as the Autel MaxiSys Ultra), you can visually analyze fuel injection and ignition timing for abnormalities through data flow visualization.

PCM failure can lead to reduced engine performance.

3. Difficulty starting or failure to start

Severe PCM malfunctions can directly interfere with fuel injection and ignition control, resulting in difficulty starting the vehicle or even failure to start at all. In this case, the Autel scanner's Active Test feature can help technicians manually trigger the relevant components to determine whether the fault lies with the PCM or the actuator.

4. Increased Emissions

Under normal circumstances, the PCM reduces exhaust emissions by precisely controlling the air-fuel ratio. However, if the PCM miscalculates, this can lead to incomplete combustion of the mixture and excessive emissions.

While this may be difficult for the owner to detect during daily driving, it will become apparent during the annual emissions test.

With the Autel scanner, you can monitor O2 sensor and fuel trim parameters in real time to determine if the PCM is failing to effectively manage emissions.

5. Decreased Fuel Economy

PCM misalignment can result in over- or under-injection of fuel, directly leading to increased fuel consumption. Examples include:

• Incorrect fuel injection pulse width
• Ignition timing mismatch
• Abnormal air-fuel ratio control

In this case, using the Autel scanner to check the fuel trim value can quickly determine if the PCM is sending incorrect commands.

A misaligned PCM can cause increased fuel consumption.

6. Abnormal Gear Shifting

The PCM and the transmission control unit work closely together. If the PCM outputs abnormal signals, the following may occur:

• Shift shock
• Random gear-engaging delays
• Risk of transmission damage

These issues not only affect driving comfort but also pose a safety hazard. Autel's high-end diagnostic tools (such as the MaxiSys Ultra series) feature transmission-specific diagnostic capabilities that can read and clear transmission fault codes related to the PCM/TCM.

Summary

The PCM is one of the most critical control modules in a vehicle, controlling nearly all core operations of the engine and transmission system. Even minor faults can affect driving experience, emissions, and fuel economy.

If you suspect a PCM problem, it's recommended to use an Autel scanner for diagnosis as soon as possible. It not only quickly reads fault codes but also uses data streaming, active testing, and system matching features to help confirm whether the PCM is truly damaged, avoiding inadvertent component replacement.
