Most Common EVAP Codes Explained: Symptoms, Causes & Fixes

As an essential means of transportation for people today, a car consists of many systems that must work together to enable it to operate normally on the road.

The Evaporative Emission Control System (EVAP) is integrated into a vehicle’s fuel system to prevent gasoline vapors from escaping into the atmosphere. The system performs diagnostics to detect potential fuel vapor leaks; if such a problem is detected, the system triggers a fault code and illuminates the “Check Engine” light on the instrument panel.

Automotive diagnostic trouble codes often reveal which system is experiencing a problem. If the EVAP system malfunctions, what are some common EVAP trouble codes that might appear? As a professional automotive diagnostic tool, how can the Autel scanner diagnose these trouble codes and assist in repairing the EVAP system? Let’s take a look!

What Is the EVAP System?

The Evaporative Emissions Control System (EVAP) is part of a vehicle’s emissions control system and is designed to prevent gasoline vapors from escaping from the fuel tank and fuel system into the atmosphere. The system captures and stores fuel vapors from the fuel tank and fuel system, which are then burned during the combustion process.

The EVAP system consists of the fuel tank, the vapor recovery tank, valves, hoses, and the connection between the fuel tank and the vapor recovery tank. The EVAP system is an active system and therefore requires no maintenance. However, malfunctions may still occur in the system, preventing it from operating as intended.

What are the Components of the EVAP System?

• Fuel Tank: The fuel tank is used to store fuel. In addition, the fuel tank stores some fuel vapor, which is then transferred to the vapor recovery system.
• Gas Cap: The purpose of the fuel cap is to prevent fuel vapors or the fuel itself from escaping into the atmosphere, as this would cause the gasoline in the fuel tank to evaporate. At the same time, the fuel cap allows fresh air to enter the fuel tank, thereby replenishing the fuel supplied to the engine.
• Fuel Tank Pressure Sensor: The fuel tank pressure sensor is used to measure positive and negative pressures inside the fuel tank. During evaporative emissions monitoring, the electronic control unit uses this pressure to detect leaks in the fuel tank.
• EVAP Canister: The EVAP canister is typically a plastic container filled with activated carbon and connected to the fuel tank via a vent line. The canister absorbs and collects gasoline vapors until the vehicle’s engine is started.
• Canister Purge Valve: This tank vent valve is typically electrically controlled; it allows the engine's vacuum to draw in fuel vapors.
• Leak Detection Pump LDP: The leak detection pump provides pressure support for the EVAP system's positive pressure test by injecting air into the fuel tank and the activated carbon canister.
• Fuel Level Sensor: Monitors the extent of fuel within the tank.
• Vent Hoses: The means by which the fuel vapors flow to different components of the EVAP system.
• Purge Valve/Sensor: Allows engine intake vacuum to siphon the precise amount of fuel vapors from the EVAP canister into the engine manifold.

Components of the EVAP System

The Most Common EVAP Trouble Codes

Although dozens of EVAP-related diagnostic trouble codes (DTCs) exist, most of them fall into four categories: leak detection, purge system faults, vent control problems, and fuel tank pressure sensor issues. Understanding which group a code belongs to makes troubleshooting much faster.

Leak Detection Codes

Leak-related EVAP codes indicate that the system cannot maintain the vacuum required for its self-test. The leak may be as simple as a loose gas cap or as difficult to find as a tiny crack in a vapor hose. These are among the most common Check Engine Light causes on modern vehicles.

If you're dealing with a P0455 or P0456 code, a smoke machine and a professional scan tool can significantly reduce diagnosis time.

Related Guides:

Want a step-by-step diagnosis? Explore our detailed guides for the most common leak-related EVAP codes:

• P0442 Code: How to Fix a Small EVAP Leak Fast with Autel Scanners
• P0455 Code: Diagnose EVAP Leaks with Autel Tool
• P0456 Code: Causes, Symptoms & Fix Guide

Purge Flow Codes

The purge valve controls when fuel vapors stored in the charcoal canister are sent into the engine for combustion. If the valve sticks open, sticks closed, or fails electrically, the ECM will trigger a purge-related DTC.

Quick tip:

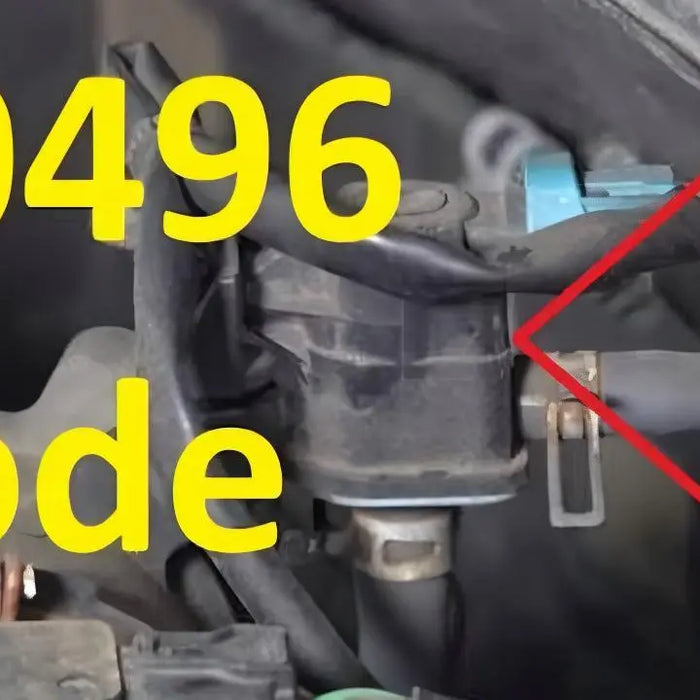

If your engine is hard to start immediately after refueling, P0496 Code is one of the first EVAP codes worth checking.

Vent Control Codes

Vent valves allow fresh air to enter the EVAP system during purge operation while sealing the system during leak tests. Dirt, moisture, or damaged wiring can prevent the valve from operating correctly.

Vent valve failures are especially common on vehicles driven on dusty roads or in regions with heavy winter road salt.

Related EVAP Guides

• P0446 Code: Symptoms, Causes and Fixes (2026 Guide)

Fuel Tank Pressure Sensor Codes

The fuel tank pressure (FTP) sensor measures pressure and vacuum inside the fuel tank. The PCM relies on this sensor during EVAP self-tests to determine whether the system can hold pressure and detect leaks.

A faulty FTP sensor can sometimes mimic an EVAP leak even when the hoses and fuel cap are in good condition.

EVAP Trouble Codes at a Glance

What Causes Most EVAP Codes?

There are various reasons why a vehicle might trigger an EVAP fault code, but the most common ones are as follows:

Loose, Damaged, or Missing Gas Cap

By far the most frequent cause of an EVAP code (especially P0457 or P0455) is the gas cap. The EVAP system relies on a completely sealed environment to run its pressure tests.

If the cap is left loose, has a cracked rubber gasket, or is missing entirely, the system cannot hold a vacuum, and the computer assumes there is a major leak.

Failing Purge Valve (Purge Solenoid)

The purge valve stays closed when the engine is off and opens when the engine is running to allow fuel vapors to be sucked into the engine and burned.

Over time, the valve can get stuck open or stuck closed due to wear or carbon buildup. If it gets stuck open, it creates a constant vacuum leak into the engine, often triggering a P0441 or P0443 code and sometimes causing the car to idle roughly right after refueling.

Cracked or Disconnected Hoses

The EVAP system uses a network of rubber hoses and plastic lines to route fuel vapors from the gas tank to the charcoal canister, and ultimately to the engine.

Underneath the car and in the engine bay, these rubber hoses are exposed to heat, road debris, and vibration. Over time, the rubber dry-rots, cracks, or completely disconnects, causing small or large leaks (P0442, P0456).

Check EVAP Hoses

Faulty Purge Valve or Vent Valve

The vent valve allows fresh air into the charcoal canister so the system can breathe during the "purge" cycle. It is usually located underneath the car near the fuel tank.

Because of its location under the vehicle, the vent valve is highly susceptible to dirt, dust, mud, and road salt. It frequently gets stuck or corrodes, triggering codes like P0446 or P0449.

Overfilling the Gas Tank ("Topping Off")

Many people try to squeeze a little extra fuel into the tank after the gas pump clicks off. This is a leading cause of EVAP component failure.

Liquid fuel travels up the vent lines and floods the charcoal canister, which is only designed to handle vapors. This ruins the charcoal inside, breaks down the canister, and can cause pieces of charcoal to break free and clog the purge or vent valves.

How to Diagnose EVAP Codes with an Autel Scanner

An Autel diagnostic scanner can significantly simplify EVAP troubleshooting by combining code reading, live data, and active tests in one device. Instead of replacing parts based on guesswork, follow these basic diagnostic steps to identify the root cause.

Step 1: Read the Trouble Codes

Perform a full system scan and note any stored or pending EVAP-related DTCs, such as P0455, P0456, or P0496. If multiple codes are present, address the primary fault first before clearing any codes.

Read P0456 Code with Autel Scanners

Step 2: Check Freeze Frame Live Data

Review the Freeze Frame data to see when the fault occurred, then monitor live parameters such as Fuel Tank Pressure, Purge Duty Cycle, and Fuel Trim. These values can provide valuable clues about the affected component.

Step 3: Run Active Tests

If your Autel scanner supports bi-directional control, command the EVAP purge valve and vent valve to operate. Comparing the commanded action with the vehicle's response helps confirm whether a valve or its circuit is functioning properly.

Step 4: Inspect the EVAP System

Before replacing parts, inspect the gas cap, vapor hoses, charcoal canister, electrical connectors, and wiring for signs of leaks, cracks, or damage. Many EVAP faults are caused by simple mechanical issues.

Step 5: Clear Codes and Verify the Repair

After completing the repair, clear the DTCs with your Autel scanner and complete an EVAP drive cycle. Rescan the vehicle to confirm the EVAP monitor has passed and no codes have returned.

Pro Tip: Autel scanners such as the Autel MK900BT, Autel MS906 Pro, and Autel Elite II Pro provide advanced EVAP diagnostic features, including full-system scans, live data, freeze frame analysis, and active tests, helping both DIYers and professional technicians diagnose EVAP faults more efficiently.

Autel Elite II Pro Key Features Overview

Frequently Asked Questions

Q1: Can I drive with an EVAP code?

A: In most cases, yes. Common EVAP codes such as P0455 or P0456 usually don't affect how the engine runs, so you can continue driving for a short period.

However, the underlying issue should be repaired as soon as possible to prevent increased emissions and potential emissions test failure. If the vehicle has poor performance, a strong fuel smell, or multiple warning lights, diagnose the problem before driving further.

Q2: What is the most common cause of an EVAP code?

A loose or damaged gas cap is one of the most common causes. Other frequent issues include cracked vapor hoses, a faulty purge valve, a malfunctioning vent valve, a failing fuel tank pressure sensor, or leaks in the charcoal canister.

Q3: How do I find an EVAP leak?

Start by checking the gas cap and all visible EVAP hoses for signs of damage or loose connections. If no obvious leak is found, use a professional scan tool to read live data and perform active tests. For very small leaks, a smoke machine is often the fastest and most accurate way to pinpoint the source.

Q4: Will an EVAP code clear itself?

Sometimes. If the issue is temporary—such as a loose gas cap that has been tightened correctly—the ECM may clear the code automatically after several successful drive cycles. Otherwise, the code will remain until the fault is repaired and the system completes its self-test.

Conclusion

The EVAP system is a critical component of your vehicle's emissions control, and understanding common EVAP codes can save you time and money during diagnostics. By using an Autel scanner to read codes, monitor live data, and perform active tests, you can quickly identify the root cause of an EVAP fault and make the necessary repairs.
