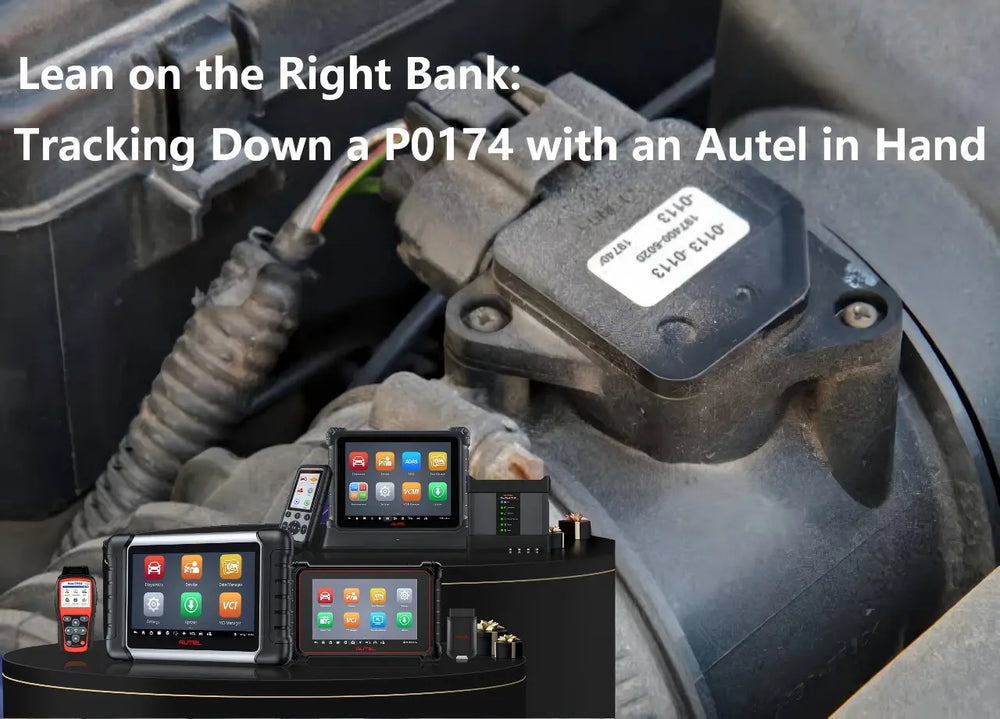

Lean on the Right Bank: Tracking Down a P0174 with an Autel in Hand

There’s a particular kind of frustration that settles in when the check engine light flickers on right as you merge onto the highway. You glance down, the engine feels a little shaky at idle, and the fuel economy has been dropping for a week. You pull the code, and there it is: P0174. It sounds like a secret government project, but to mechanics and DIYers, it’s a familiar headache. System Too Lean (Bank 2).

We hear a lot about Bank 1 because that’s where cylinder number one lives. But Bank 2 is the neglected sibling, the side of the engine that doesn’t get the spotlight until something goes wrong. When your OBD2 scanner spits out P0174, it’s telling you that the oxygen sensors on the side of the engine opposite cylinder one are seeing too much oxygen in the exhaust, or more accurately, not enough fuel.

Before you start throwing parts at it—and trust me, the internet will tell you to buy oxygen sensors immediately—it’s worth taking a breath and looking at the data. This is where a tool like an Autel scanner changes the game. You can’t fix a lean code with a hammer, but you can fix it with a graph.

What P0174 Actually Tells You

On engines with two cylinder banks, Bank 2 is the bank opposite the cylinder containing number one. The exact physical location varies by engine, so don't assume that Bank 2 is always the front or rear bank.

The interesting part of P0174 is the word lean: the PCM believes Bank 2 has too much oxygen relative to the amount of fuel being burned. It responds by increasing injector fueling, which pushes short-term and eventually long-term fuel trims positive. When the required correction becomes excessive for long enough, P0174 can be stored.

That makes P0174 more of a starting point than a diagnosis. A vacuum leak, unmetered air entering after the MAF sensor, restricted injector, weak fuel delivery, inaccurate MAF measurement, or even an exhaust leak ahead of the upstream oxygen sensor can produce the same code. Some manufacturers also have model-specific issues, so the engine and vehicle should always be checked before deciding which component is responsible.

The First Clue: P0174 Alone or With P0171?

This is one of the most useful shortcuts when diagnosing a lean condition. If the scanner shows P0174 by itself, concentrate on components that can affect Bank 2 specifically, such as an intake-manifold leak on that side, a Bank 2 injector problem, or an exhaust leak close to the Bank 2 upstream O2/A/F sensor. If P0171 code and P0174 appear together, the investigation changes because both banks are reporting lean conditions.

A shared component suddenly becomes much more interesting. Think about the MAF sensor, a large intake leak before the manifold branches, PCV plumbing, fuel pressure, or overall fuel delivery. A single MAF sensor normally measures the engine's incoming airflow for the whole engine, so an under-reporting MAF can make both banks appear lean. This simple comparison can save a surprising amount of time.

P0174 With P0171 Code

Use Fuel Trims Before Replacing Parts

If you have a capable scan tool, don't stop after reading the trouble code. Pull up STFT and LTFT for both banks with the engine fully warmed up and compare them.

For example, if Bank 1 is around +3% while Bank 2 is around +20%, the numbers support a Bank 2-specific problem. If both banks are around +18% to +22%, start looking for a shared cause instead. Exact thresholds vary by manufacturer, so these figures should be treated as diagnostic clues rather than universal specifications.

The next trick is even more useful: compare fuel trims at idle with the engine around 2,500 RPM. If the trims are strongly positive at idle but move significantly closer to normal as RPM rises, an intake or vacuum leak becomes more suspicious. If trims look acceptable at idle but climb substantially under load, fuel delivery deserves more attention because the engine needs considerably more fuel when demand increases.

The Autel Workflow: Stop Guessing, Start Scoping

One of the reasons people get lost with a P0174 is the shotgun approach. I’ve seen forum threads where a guy replaced his intake manifold gasket, all four O2 sensors, the fuel pump, and the MAF, and the light still came back on. That’s an expensive way to find out a rubber elbow was cracked.

The Autel (or any decent bidirectional scanner) forces you to be methodical. Here’s a workflow that usually works:

1. Freeze Frame

   Don’t clear the code immediately. On the Autel, check the "Freeze Frame" data. This tells you the exact conditions when the code was set. Was it at idle? At 70 mph? If the code set at idle, vacuum leak moves to the top of the list. If it set at high load, maybe it’s a fuel delivery issue or a restricted injector.

2. The Fuel Trim Dance

   As described above, watch the trims at idle vs. 3,000 RPM. This diagnostic step alone will save you hours.



   Fuel Trim Dance On Autel Scanner

3. The O2 Sensor Reality Check

   A lot of people blame the O2 sensor for reporting the lean condition. But the sensor is just the messenger. On the Autel, look at the O2 sensor voltage for Bank 2 Sensor 1 (upstream).

   A healthy sensor should oscillate rapidly between 0.1V and 0.9V. If it’s stuck low (under 0.45V), it is seeing a lean mixture—it’s not broken. If it’s lazy and slow to respond compared to Bank 1, then you can condemn the sensor. But a P0174 is rarely fixed by a new O2 sensor alone.

4. Checking the PCV

   On many Ford and GM V8s and V6s, the PCV valve is located on the Bank 2 valve cover. If the rubber grommet or hose has degraded, that’s a massive internal vacuum leak that only affects Bank 2.

   Use a spray bottle with water or carb cleaner around the intake manifold and hoses while watching the STFT on the Autel. If the RPM jumps or the trims drop suddenly, you found your leak. (Do this on a cool engine to avoid a fire).

Common P0174 Problems Worth Checking First

Start with the boring stuff. Inspect the intake duct, vacuum hoses, PCV connections and intake-manifold sealing surfaces for cracks, loose clamps or disconnected hoses. A smoke test is particularly useful because an intake leak can be almost impossible to see but obvious once smoke escapes from the damaged area. Recent technician-focused diagnostic guidance also recommends using the fuel-trim pattern to decide whether a vacuum leak or fuel-delivery problem deserves priority.

If both banks are lean, inspect the MAF sensor and overall fuel supply. A contaminated MAF can under-report airflow, while low fuel pressure from a weak pump, restricted filter or related fuel-system problem can leave the engine short of fuel.

Don't automatically replace the MAF just because P0174 is present; verify its readings and compare them with manufacturer information where available. Once you've identified the likely cause, our guide on how to fix P0174 covers the most common repair approaches and what to check before replacing parts.

When the Oxygen Sensor Is Actually the Problem

An oxygen or air-fuel-ratio sensor can contribute to a P0174 diagnosis, but it shouldn't automatically be the first part you replace. The sensor is reporting what it sees, and a genuinely lean engine can make a perfectly good sensor report a lean condition. Before condemning it, compare Bank 2 sensor behavior with Bank 1 and look for an exhaust leak that could introduce outside air before the sensor.

This is one reason live data is so valuable. A code tells you what the computer noticed; live data helps you understand why it noticed it.

check oxygen sensor real time data

Final Thoughts

The P0174 code is an exercise in logic, not parts replacement. The reason people buy high-end tools like Autel scanners is to see the story the engine is trying to tell. The code just points you in a direction; the live data is the narrative.

Next time that light comes on, don’t panic and don’t buy an O2 sensor just because some guy on YouTube said it worked for him. Plug in the scanner. Look at the math. Is the air lying, or is the fuel not showing up? More often than not, you’re looking for a hole in a piece of rubber that costs five bucks, and the Autel is the flashlight that lets you find it without tearing the whole engine bay apart.
