P0446 Code: What It Means and What to Check First

Your scanner shows P0446, but the car may start, idle, and drive exactly as it did yesterday. The code points to the fuel vapor control system, so a check engine light can be the only thing you notice.

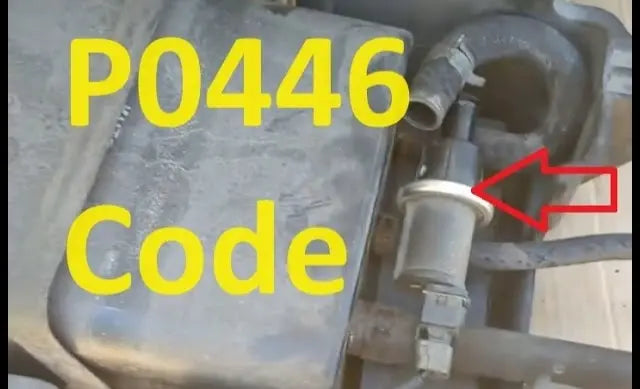

P0446 means “Evaporative Emission Control System Vent Control Circuit Malfunction.” In plain English, the car has detected a problem with how the EVAP system vents or how that vent is controlled. A sticking valve, a blocked vent path, or damaged wiring can be involved. The code alone does not tell you which part to replace.

What does P0446 mean?

Gasoline gives off vapor even when the engine is off. The EVAP system stores that vapor in a charcoal canister and later feeds it into the engine to be burned. Two valves have different jobs: the purge valve controls vapor flow toward the engine, while the vent valve controls the system's connection to outside air.

On many vehicles, the vent is normally open and closes during an EVAP leak check. If the system cannot vent or seal as expected, or its control circuit has a fault, the computer may store a trouble code. The exact conditions that set P0446 vary by vehicle; some manufacturers describe it as a vent system performance fault. Use the diagnostic procedure for your year, engine, and model.

That distinction matters. A valve can receive an electrical command and still have a blocked air passage. Replacing it without checking the vent hose and filter may leave you with the same warning light.

P0446 displayed on an Autel AL619. Reading the code is the starting point for diagnosis.

What symptoms can P0446 cause?

A steady check engine light with no obvious change in driving is a common starting point. Other clues depend on what has failed:

• The fuel pump keeps clicking off before the tank is full. A restricted vent path can make refueling difficult, although the nozzle or filler system can also cause this.
• A fuel smell near the tank. This needs a separate check for escaping vapor or liquid fuel; P0446 alone does not prove there is a leak.
• An emissions inspection problem. An illuminated emissions warning light or incomplete readiness monitors may prevent the vehicle from passing an OBD inspection.

Rough idle, stalling, and a large drop in fuel economy are not reliable signs of an isolated vent fault. If those symptoms are present, record any additional codes and investigate them rather than assuming P0446 explains everything.

A check engine light does not identify the failed part. Read the stored codes before buying replacements.

For other warning-light situations, see what to do when the check engine light comes on.

What causes a P0446 code?

Start with the vent side of the EVAP system. Depending on the vehicle, the fault may involve:

• A sticking or failed vent valve. The valve may not move, seal, or open fully when commanded.
• A clogged vent filter or hose. Dust, dirt, water intrusion, or a pinched line can restrict airflow.
• A wiring or connector problem. Corrosion, loose terminals, or damaged wires can interrupt valve operation.
• A restricted or damaged charcoal canister. This should be confirmed by testing before the canister is replaced.

Some diagnostic procedures also call for checking purge operation and the fuel tank pressure sensor. Those checks depend on the code combination and test results; they are not a reason to replace every EVAP component.

Check the vent valve, its wiring, and the air path around it.

Could it just be the gas cap?

Inspect the cap if your vehicle has one. Make sure it is fitted correctly and look for a damaged seal. It is a simple check, especially if the light appeared after refueling. But a loose cap is more directly associated with EVAP leak faults; it is not a universal explanation for P0446. If the cap is sound, continue with the vehicle-specific vent checks.

How to diagnose P0446 without guessing

1. Save the codes before clearing anything

Record all stored and pending codes, along with available freeze-frame data. Note whether the light appeared after refueling, whether the tank is hard to fill, and whether any work was recently done near the tank or canister.

Companion codes matter. A leak code alongside P0446 may require a different test sequence from a vent circuit code. Clearing the memory at the start removes useful evidence.

2. Look for a visible problem

With the ignition off, check accessible hoses and connectors for damage, disconnection, corrosion, or incorrect routing. Locate the vent filter using the service information for your vehicle; its position is not the same on every model. If access requires going underneath, use proper vehicle supports, never a jack alone.

A crushed hose or dirt-filled vent inlet is worth investigating before ordering a valve. Do not blow unrestricted shop air into the fuel tank or canister.

3. Test valve operation and the circuit

A compatible bidirectional scanner can command the vent valve on supported vehicles. A click is useful evidence that something moved, but it does not prove the valve seals or flows correctly. If there is no response, check the power supply, control circuit, and connector before condemning the valve.

Electrical tests need the correct wiring diagram and manufacturer specifications. There is no single resistance value or pin arrangement that applies to every vent valve.

4. Check airflow, sealing, and pressure response

Follow the service procedure to determine whether the vent path is restricted and whether the system responds correctly to commanded valve operation. Where supported, fuel tank pressure data helps show what is happening. A reading that does not change as expected needs investigation; it does not automatically mean the pressure sensor is bad.

An EVAP-rated smoke machine can help locate leaks when the diagnostic procedure calls for it. Use the specified low pressure and valve configuration. A smoke test alone will not identify every electrical fault or vent restriction. Keep ignition sources away from fuel vapor.

Combine scan data with physical checks to find the cause of the fault.

Which scanner functions do you need?

For an initial check, look for code reading, freeze-frame data, and I/M readiness. The Autel AL619 shown above supports these functions. Reading P0446 does not, by itself, mean a tool can command your vent valve.

For active testing, confirm EVAP vent control and relevant live-data coverage for your exact vehicle before choosing an Autel scan tool. Capabilities depend on both the scanner and the vehicle.

What fixes P0446?

The repair should match the failed test. That may mean repairing a corroded connector, replacing a damaged hose or restricted filter, or replacing a vent valve that fails its operating or sealing test. Replace the charcoal canister only when inspection and testing show it is damaged or restricted. Do not treat a sealed canister as a washable filter.

Also check for a service bulletin that applies to your vehicle. For example, GM bulletin 09-06-04-028D covers certain 2007–2010 SUVs with hard-to-fill tanks and EVAP codes, including P0446. It describes dirt or water affecting the vent system and specifies an updated assembly after diagnosis confirms the cause. It also cautions against replacing the canister without evidence of failure or excessive contamination. That repair applies to the listed vehicles, not every Chevrolet or GMC with P0446.

Video reference: locating EVAP components

The video below provides a visual reference for the EVAP layout discussed in the original article. Compare it with your own vehicle's service information before disconnecting hoses or replacing parts; layouts can change between model years.

Can you drive with a P0446 code?

If P0446 is the only code, the check engine light is steady, and the car runs normally with no fuel smell or visible leak, a short trip to arrange diagnosis is generally reasonable. Schedule the repair rather than leaving the warning light on indefinitely.

A strong gasoline smell, visible fuel leak, flashing check engine light, or serious running problem changes that advice. Stop safely and have the vehicle assessed. Those symptoms should not be dismissed as a routine vent code.

Check the warning-light and readiness status before an emissions inspection.

How do you know the repair worked?

After repairing the confirmed fault, follow the manufacturer's verification procedure. This may include clearing codes, repeating a functional test, and driving under the conditions needed for the EVAP monitor to run.

A light that stays off for one short drive is not conclusive. The EVAP self-test may require a particular fuel level, temperature, or period with the engine off. Check for returning pending codes and confirm monitor completion instead of relying on a fixed number of miles.

Clearing codes can also reset readiness monitors. As EPA inspection guidance explains, the vehicle may need to complete its onboard tests before an OBD inspection. Local inspection requirements vary.

Other questions about P0446

Is the vent valve the same as the purge valve?

No. The vent valve controls the fresh-air side of the EVAP system; the purge valve meters stored vapor into the engine. Check the part location and test procedure before ordering either one.

Why did P0446 come back after replacing the vent valve?

The original problem may still be present in the wiring, filter, hose, or another part of the system. Check the replacement's application and installation, then repeat the diagnostic tests. A new valve does not rule out a blocked vent path.

How much does it cost to fix?

There is no useful single price for P0446. An accessible connector repair and a canister assembly replacement are different jobs. Ask for an estimate that separates diagnosis, the confirmed replacement part, and labor. The useful question is: what test showed that this part failed?

Can you prevent it from happening again?

Stop refueling when the nozzle shuts off normally instead of topping off the tank. During related service, check that vent hoses are correctly routed and the filter is fitted as specified. These habits help protect the system, although they cannot prevent every valve or wiring failure.

If you are comparing symptoms beyond P0446, our guide to EVAP system warning signs covers the wider system. For this code, start with the recorded faults, inspect the vent path, and let the test results decide the repair.
