Autel offers a wide variety of scanner models, which can be overwhelming for DIY enthusiasts new to auto diagnostic tools. How should one choose and purchase one? What are the differences between the different models? What are the key differences in functions between the Autel 808 and 900 series, despite their different prefixes?
Today we'll focus on the Autel 808 and 900 series, which are mid-range diagnostic tools among Autel scanners, better suited for small and medium-sized repair shops and DIY enthusiasts. A comparison table of these two Autel scanner series will help you make a better purchase decision.
Autel 808 and 900 Series Listings for Sale
| Autel Scanner Series | Item | Price |
|---|---|---|
| Autel 808 Series | MX808S | $389.00 |
| MX808S-TS | $589.00 | |
| MK808Z | $389.00 | |
| MK808BT Pro | $459.00 | |
| MP808BT Pro Kit | $639.00 | |
| MP808S Kit | $589.00 | |
| MP808Z-TS | $729.00 | |
| DS808S-TS | $729.00 | |
| DS808S-BT Kit | $639.00 | |
| Autel 900 Series | MX900 | $519.00 |
| MX900-TS | $779.00 | |
| MK900-BT | $579.00 | |
| MK900-TS | $779.00 | |
| MP900 | $699.00 | |
| MP900 KIT | $749.00 | |
| MP900-BT | $799.00 | |
| MP900-TS | $949.00 |
Overview of Autel 808 and 900 Series
The Autel 808 and 900 series are mid-range auto diagnostic tools, more suitable for DIY enthusiasts at home and small auto repair shops. They have limited special functions, but all support two-way control, and some higher-end OBD2 scanners can also support ECU coding.
In addition, the Autel 808 and 900 series OBD2 scanners support a variety of maintenance services, meeting both routine diagnostic needs and regular maintenance requirements. They are also very user-friendly for beginners, allowing for easy operation even without specialized knowledge.
Autel 808 Series OBD2 Scanners

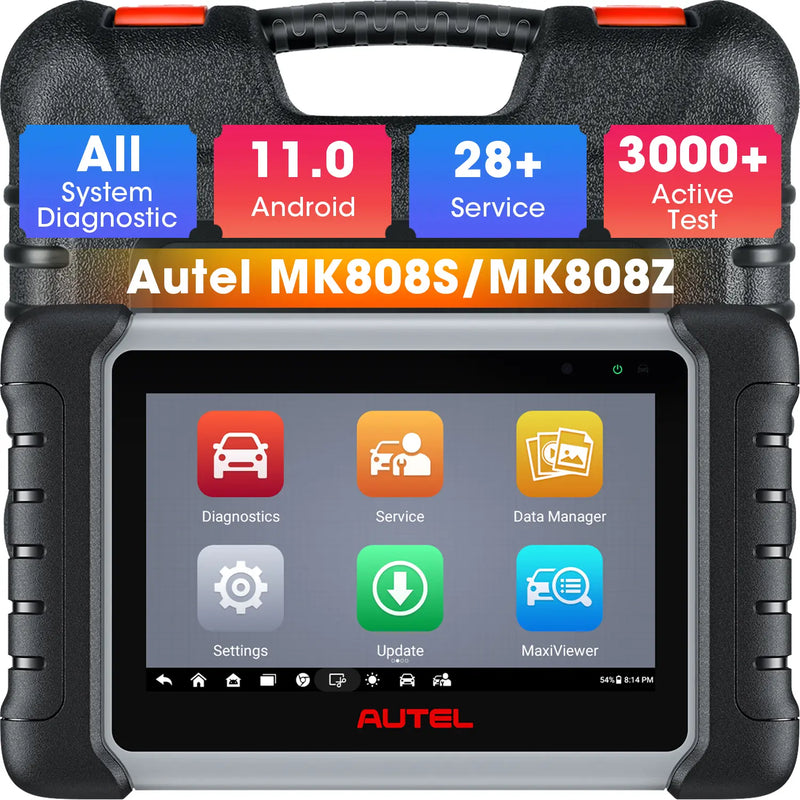

Autel MX808S/ MK808Z/ MX808S TS/ MK808BT Pro
These four Autel scanners are all excellent and share many similarities. All four are 7-inch OBD2 scanners with bidirectional control,support all systems diagnostic and all are equipped with quad-core processors and the Android 11.0 operating system, ensuring smooth diagnostic work.
In addition, all four scanners support a variety of service functions to meet routine maintenance needs.

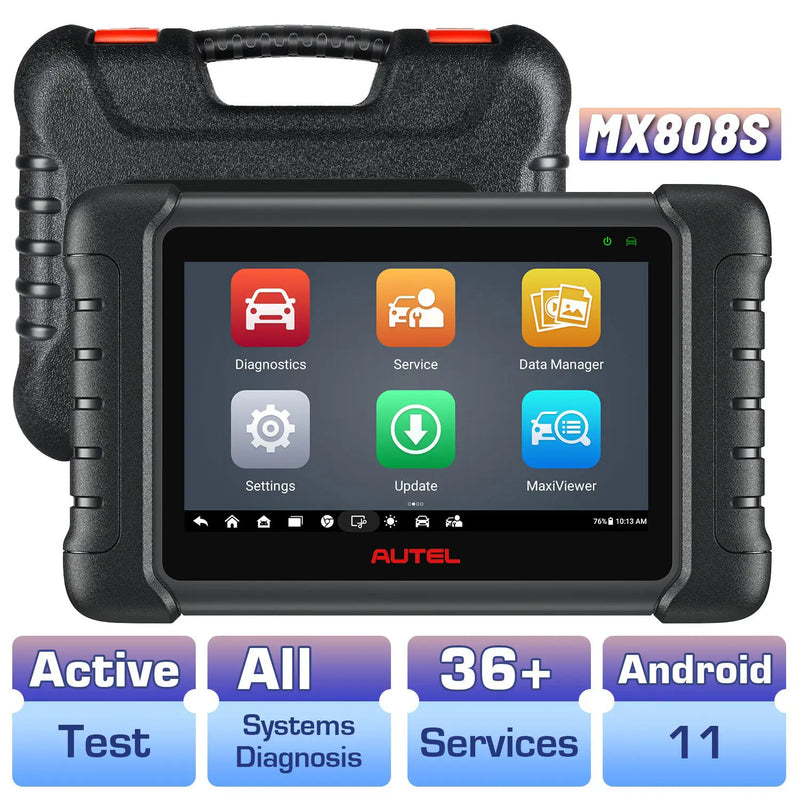

Autel MaxiCheck MX808S
Entry-Level OBD2 Scanner | OE-Level All System Diagnostics | Bi-Directional Control | FCA AutoAuth | 36+ Services | NO IP Limitation | Updated of MX808/MK808/MK808BT

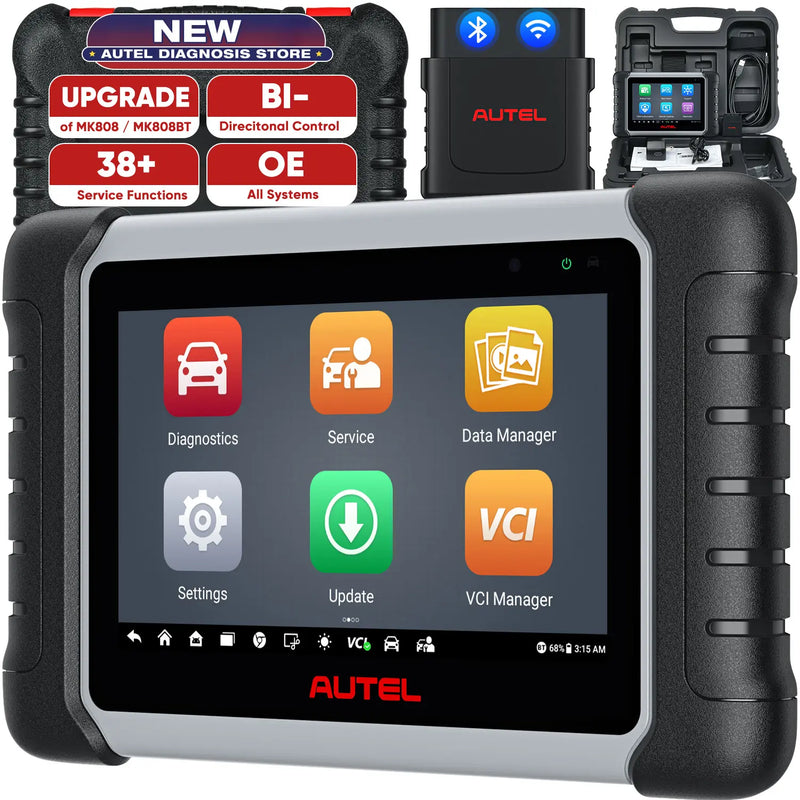

Autel MaxiCOM MK808BT Pro
Same as MK808Z-BT/MK808K-BT | Wireless OBD2 Diagnostic Tool | Full Bi-directional Contro | All System Diagnostics | 38+ Services | FCA Autoauth | Upgraded Ver. Of MK808BT/MK808/MX808

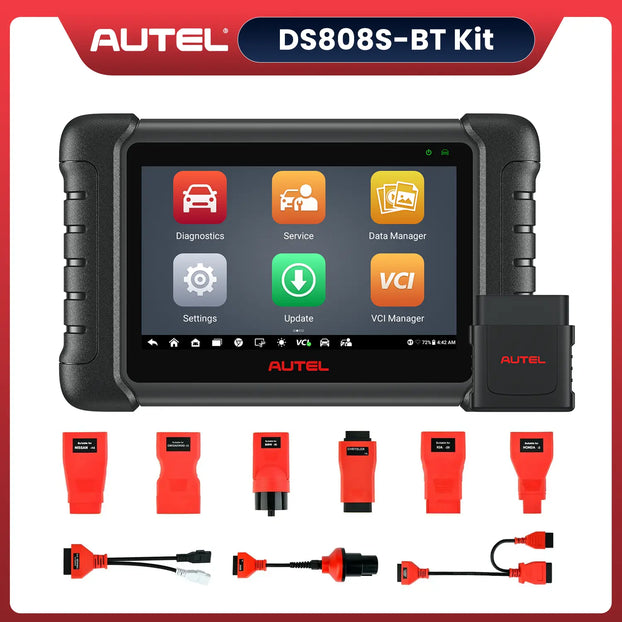

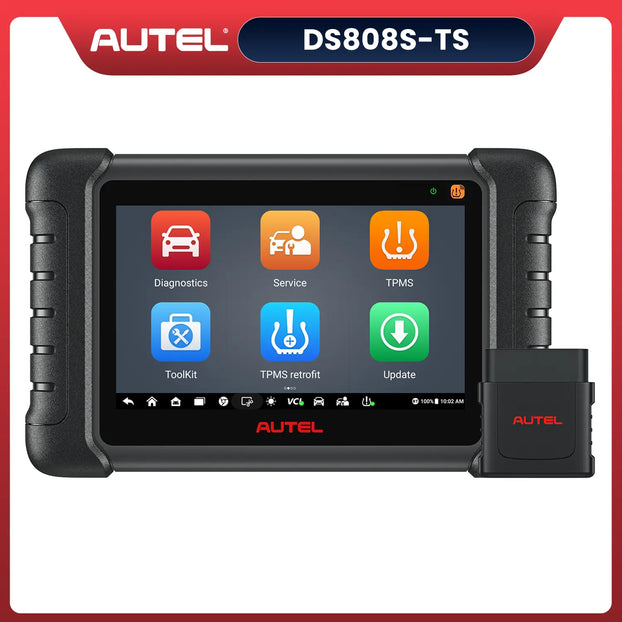

Autel MP808BT Pro Kit/ MP808S Kit/ MP808Z-TS/ DS808S-TS/ DS808S-BT Kit
All five Autel 808 series OBD2 scanners feature a 7-inch touchscreen, a quad-core processor, and Android 11.0 operating system. Their powerful hardware configuration ensures a high level of diagnostic capability.
Beyond their hardware configuration, their software functionality is also excellent. It supports full system diagnostics, over 3000 active tests and ECU coding features, as well as various service functions. The three kit-equipped products come with various adapters to meet your needs beyond the OBD II port.

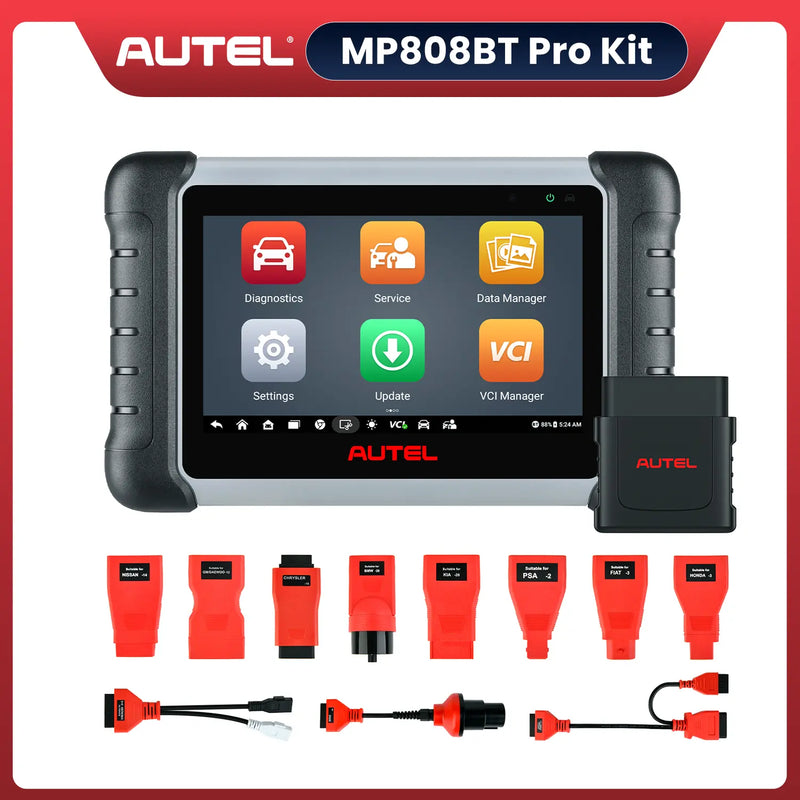

Autel MaxiPRO MP808BT Pro Kit
[2-Year Free Update] Automotive Full System Diagnostic Scanner with OBDII Adapters | Wireless BT Connection | Bi-Directional Control | 36 + Reset Services| Extra One Box of OBD1 Adapter

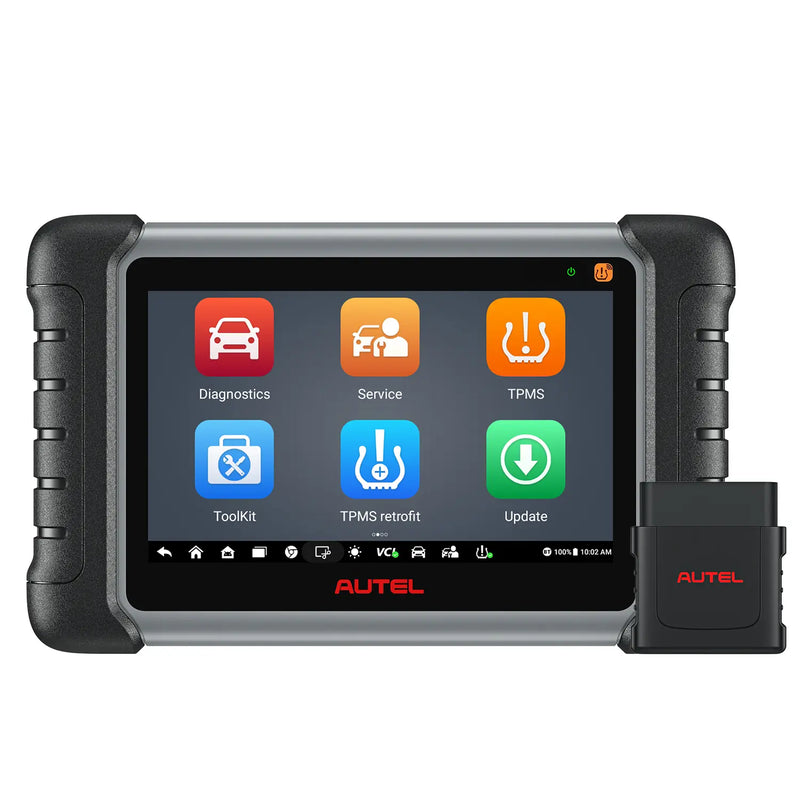

Autel MaxiPRO MP808Z-TS
[2-Year Free Update] Wireless TPMS Diagnostic Scanner | Android 11.0 | Complete TPMS Functions| OE-Level All Systems Diagnosis | 36+ Reset Services | Upgraded of MP808S/ DS808TS/MP808TS
Autel 900 Series OBD2 Scanners

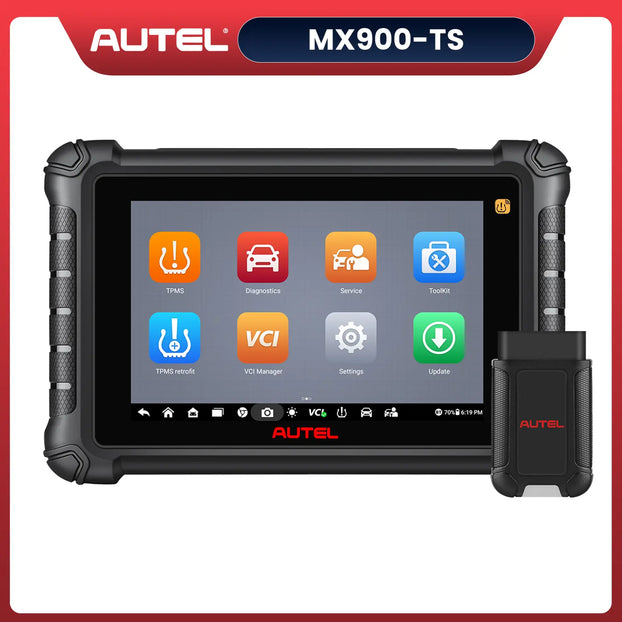

MX900/ MX900-TS/ MK900-BT/ MK900-TS
These four Autel scanners represent a significant upgrade from the 808 series OBD2 scanners. In terms of hardware, they feature an 8-inch touchscreen, a quad-core processor, Android 11.0 operating system, and a 7700mAh battery. Furthermore, except for the MX900, all support Bluetooth connectivity, making diagnostic work more convenient.
In terms of software functionality, they all support full-system diagnostics, bi-directional control, and over 30 basic service functions. In addition, they support security gateway unlocking and offer broader vehicle diagnostic coverage.

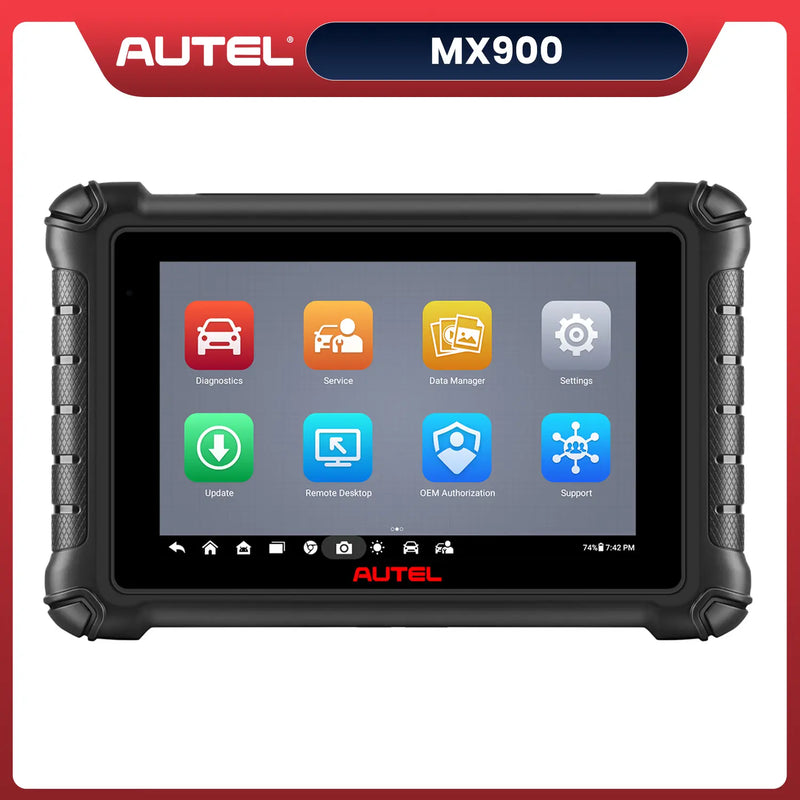

Autel MaxiCheck MX900
OBD2 All System Diagnostic Scanner | Bi-Directional Control | DoIP/CAN FD | Read/Clear Code | 40+ Service | Upgrade of MK808/MX808
Autel MaxiCOM MK900-TS
Wireless OBD2 & TPMS Diagnostic Scanner | Full TPMS Functions | All Systems Diagnostics | Bi-Directional Control | Support DoIP/CAN FD Protocols | 40+ Services | Upgraded of MK808TS

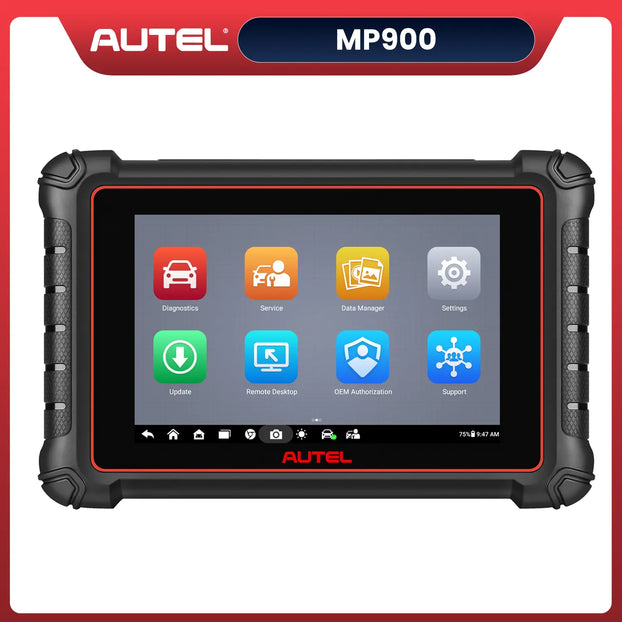

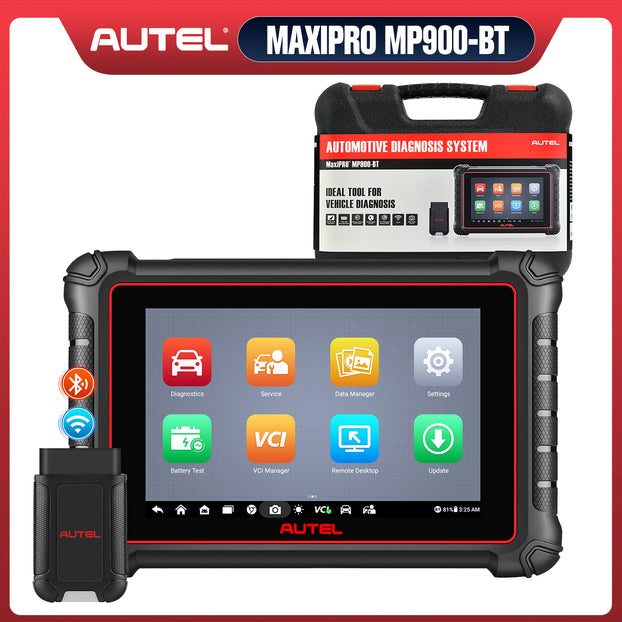

Autel MP900/ MP900 KIT/ MP900-BT/ MP900-TS
All four Autel 900 series OBD2 scanners are equipped with a quad-core processor and Android 11.0 operating system, have a 7700mAh battery capacity, and a rear camera.
In addition to these hardware configurations, they all support OE-level full system diagnostics and 40+ service functions. They also support bidirectional control and special ECU coding functions. The MP900 TS, in particular, supports all TPMS functions, meeting your diagnostic and maintenance needs for TPMS systems.

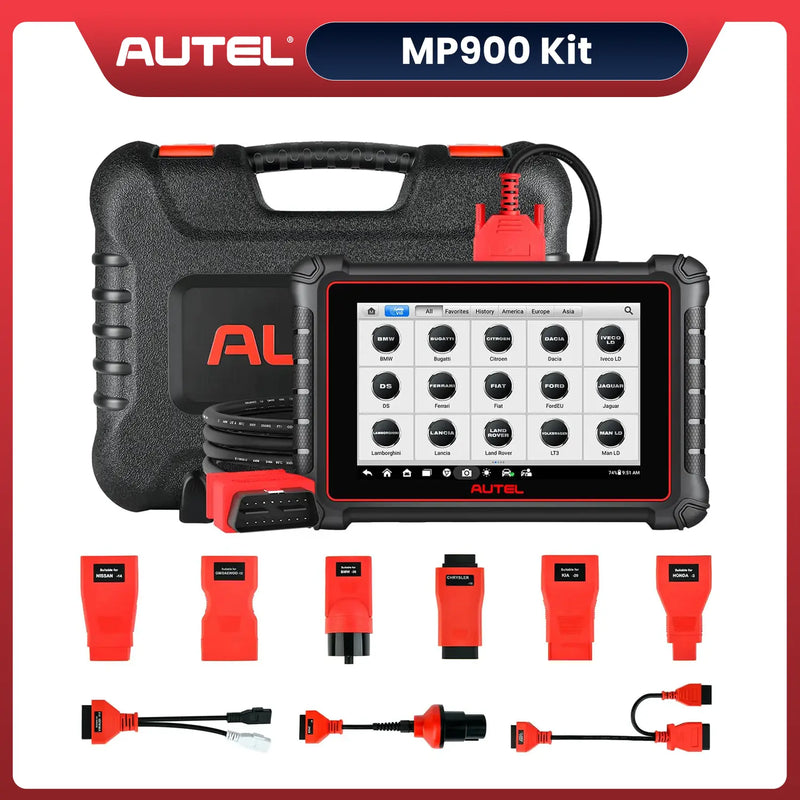

Autel MaxiPRO MP900 Kit
Same as MP900E Kit | Automotive Diagnostic Scan Tool | All System Diagnostic | Newest DoIP/CAN FD | Online ECU Coding | 40+ Services | Active Test | Upgraded of MP808S KIT/MP808BT PRO KIT

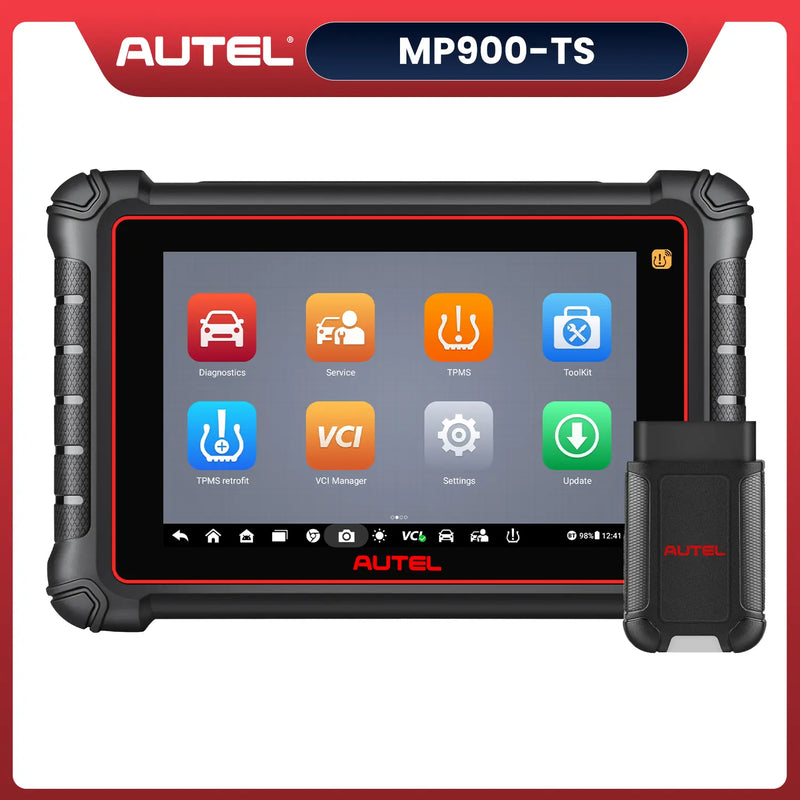

Autel MaxiPRO MP900-TS
OE-Level Automotive Diagnostic Scanner | TPMS Relearn/Reset/Programming Tool | Advanced ECU Coding | Support DoIP/CAN FD Protocols | 36+ Reset Services | Upgraded of MP808Z-TS/MP808TS
Autel Scanners Comparison Chart: Autel 808 and 900 Series
Autel MX808S/ MK808Z/ MX808S TS/ MK808BT Pro
| Model |  |
 |
 |
 |
| MX808S -- $389.00 | MK808Z -- $389.00 | MK808BT Pro -- $459.00 | MX808S-TS -- $589.00 | |
| CPU | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 |
| RAM | 4G | 4G | 4G | 4G |
| ROM | 64G | 64G | 64G | 64G |
| Battery Capacity | 5000mAh | 5000mAh | 5000mAh | 5000mAh |
| Android Version | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 |
| Screen Size | 7 inch | 7 inch | 7 inch | 7 inch |
| Screen Resolution | 1024*600 | 1024*600 | 1024*600 | 1024*600 |
| Camera | / | / | / | / |
| VCI | Main cable | Main cable | VCI Mini | VCI Mini |
| Main Functions | ||||
| Basic Features(Read/Erase Code & View Live Data) | √ | √ | √ | √ |
| Service Functions | √ | √ | √ | √ |
| Special Function | √ | √ | √ | √ |
| Bi-Directional Control(Active Test) | √ | √ | √ | √ |
| TPMS Functions | ||||
| Advanced TPMS Diagnostics for Complete TPMS Health Check | / | / | / | √ |
| Activate 98% of all Known TPMS Sensors | / | / | / | √ |
| Program Autel MX Sensors | / | / | / | √ |
| Extensive OBD Relearn Coverage | / | / | / | √ |
| On-screen Relearn Procedure | / | / | / | √ |
| Other Functions | ||||
| DoIP & CAN FD Protocol | / | / | / | / |
| Pre & Post Scan | / | / | / | / |
| Scan VIN | / | / | / | / |
| Wifi Print | / | / | / | / |
| Auto VIN | √ | √ | √ | √ |
| Remote Desk | √ | √ | √ | √ |
| New Functions | ||||
| Endoscope Function(MV108S) | √ | √ | √ | √ |
| Battery Test(BT506) | / | / | √ | √ |
| Autel Cloud Service | √ | √ | √ | √ |
How to Choose?
The relationship between these models is clear at a glance, as their names suggest: MX808S (MK808Z) + Bluetooth VCI=MK808BT Pro; MK808BT Pro + Complete TPMS Function=MX808S-TS.
If only to deal with routine maintenance without TPMS issues, you only need to choose one from the wired version MX808S (MK808Z) and wired + wireless version MK808BT Pro. Of course, if the budget is not enough, MX808S will not disappoint you. If TPMS diagnosis is required, choose MX808S-TS, you will enjoy both Bluetooth capability and TPMS function.
Autel MP808BT Pro Kit/ MP808S Kit/ MP808Z-TS/ DS808S-TS/ DS808S-BT Kit
| Model |  |
 |
 |
 |
 |
| MP808BT Pro Kit | MP808S Kit | MP808Z-TS | DS808S-TS | DS808S-BT Kit | |
| $639.00< | $589.00< | $729.00< | $729.00< | $639.00< | |
| CPU | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 |
| RAM | 4G | 4G | 4G | 4G | 4G |
| ROM | 64G | 64G | 64G | 64G | 64G |
| Battery Capacity | 5000mAh | 5000mAh | 5000mAh | 5000mAh | 5000mAh |
| Android Version | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 | Android 11.0 |
| Screen Size | 7 inch | 7 inch | 7 inch | 7 inch | 7 inch |
| Screen Resolution | 1024*600 | 1024*600 | 1024*600 | 1024*600 | 1024*600 |
| Camera | / | / | / | / | / |
| VCI | VCI Mini | Main Cable | VCI Mini | VCI Mini | VCI Mini |
| Main Functions | |||||
| ECU Coding(For BMW,Porsche,VW) | √ | √ | √ | √ | √ |
| Refresh Hidden Functions(For BMW,VW,Audi,Skoda) | √ | √ | √ | √ | √ |
| VAG Guided Functions(For VW,Audi,Skoda,Sear,Man LD) | √ | √ | √ | √ | √ |
| Basic Features(Read/Erase Code & View Live Data) | √ | √ | √ | √ | √ |
| Service Functions | √ | √ | √ | √ | √ |
| Special Function | √ | √ | √ | √ | √ |
| Bi-Directional Control(Active Test) | √ | √ | √ | √ | √ |
| TPMS Functions | |||||
| Advanced TPMS Diagnostics for Complete TPMS Health Check | / | / | √ | √ | / |
| Activate 98% of all Known TPMS Sensors | / | / | √ | √ | / |
| Program Autel MX Sensors | / | / | √ | √ | / |
| Extensive OBD Relearn Coverage | / | / | √ | √ | / |
| On-screen Relearn Procedure | / | / | √ | √ | / |
| Other Functions | |||||
| Auto VIN | √ | √ | √ | √ | √ |
| Remote Desk | √ | √ | √ | √ | √ |
| New Functions | |||||
| Endoscope Function(MV108) | √ | √ | √ | √ | √ |
| Battery Test(BT506) | √ | / | √ | √ | √ |
| Autel Cloud Service | √ | √ | √ | √ | √ |
How to Choose?

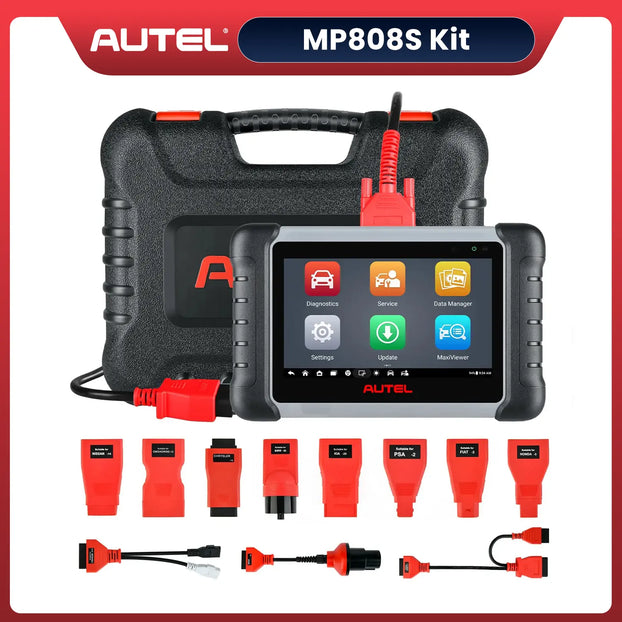

MP808S Kit is equivalent to MP808S with a box of non-OBD2 standard adapters, making it work on OBD1 vehicles. MP808S Kit connects the tablet and vehicle via cable while MP808BT Pro/ MP808Z-TS / DS808S-TS connects via Bluetooth VCI.
If you need TPMS, MP808Z-TS / DS808S-TS comes with the same TPMS capabilities as the handheld TPMS tool TS508, which is worth a try. If you don't need to connect to OBD1 vehicles and require a BT connection, you can choose the Autel MP808BT PRO.
MX900/ MX900-TS/ MK900-BT/ MK900-TS
| Model |  |
 |
 |
 |
| MK900BT | MK900TS | MX900 | MX900TS | |
| $579 | $779 | $519 | $779 | |
| Hardware | ||||
| Processor | Quad core Processor | Quad core Processor | Rockchip RK3566 | Quad core Processor |
| Operating System | Android 11 | Android 11 | Android 11 | Android 11 |
| RAM | 4 GB | 4 GB | 4 GB | 4 GB |
| ROM | 64 GB | 64 GB | 64 GB | 64 GB |
| Screen | 8 inches | 8 inches | 8 inches | 8 inches |
| Resolution | 1280*800 | 1280*800 | 1280*800 | 1280*800 |
| SD Card | SD Card (Support up to 64GB) | SD Card (Support up to 64GB) | SD Card (Support up to 64GB) | SD Card (Support up to 64GB) |
| Battery Capacity | 3.7V 7700 mAh | 3.7V 7700 mAh | 3.7V 7700 mAh | 3.7V 7700 mAh |
| Camera | Rear: 8 Megapixel | Rear: 8 Megapixel | Rear: 8 Megapixel | Rear: 8 Megapixel |
| VCI | V150 | V150 | Main cable | V150 |
| Software | ||||
| Auto VIN | √ | √ | √ | √ |
| Read/Clear Code | √ | √ | √ | √ |
| Live Data | √ | √ | √ | √ |
| Freeze Frame | √ | √ | √ | √ |
| ECU Information | √ | √ | √ | √ |
| Active Test | √ | √ | √ | √ |
| Service | √(40+) | √(40+) | √(40+) | √(40+) |
| Special Functions | All System | All System | All System | All System |
| Cloud Management | √ | √ | √ | √ |
| Pre & Post Scan | √ | √ | √ | √ |
| SCAN VIN | √ | √ | √ | √ |
| SCAN License | √ | √ | √ | √ |
| Remote Desk | √ | √ | √ | √ |
| DoIP | √ | √ | √ | √ |
| CAN FD | √ | √ | √ | √ |
| Extensive | ||||
| Full TPMS | / | √ | / | √ |
| Endoscope | √(Need MV108S) | √(Need MV108S) | √ | √(Need MV108S) |
| Battery Test | √(Need BT506) | √(Need BT506) | / | √(Need BT506) |
| Wi-Fi Print | √ | √ | √ | √ |
How to Choose?
Compared to the MX900, the MK900BT supports Bluetooth connection, making it more convenient to use. If you need additional TPMS diagnostics, the MK900TS is a great choice.
What is the difference between the MK900TS and MX900TS? They have the same diagnostic functions, but the MX900TS is the US version, meaning it can only be used in the United States and supports only English. If you need to use other languages, such as Spanish, please choose the MK900TS.
Autel MP900/ MP900 KIT/ MP900-BT/ MP900-TS
| Product Type | Image |  |
 |
 |
 |
| Item | MP900 | MP900 KIT | MP900-TS | MP900-BT | |
| Price | $699 | $749 | $949 | $799 | |
| Hardware | Operating system | Android 11 | Android 11 | Android 11 | Android 11 |
| CPU | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 | Rockchip RK3566 | |
| Screen | 8inches, 800*1280 | 8inches, 800*1280 | 8inches, 800*1280 | 8inches, 800*1280 | |
| RAM | 4GB | 4GB | 4GB | 4GB | |
| ROM | 64GB | 64GB | 64GB | 64GB | |
| Battery | 7700mAh | 7700mAh | 7700mAh | 7700mAh | |
| Camera | Rear: 8M | Rear: 8M | Rear: 8M | Rear: 8M | |
| DLC | Wired | Wired | V150 | V150 | |
| DoIP | √ | √ | √ | √ | |
| CAN FD | √ | √ | √ | √ | |
| Software | Read/clear code | √ | √ | √ | √ |
| Freeze frame | √ | √ | √ | √ | |
| ECU information | √ | √ | √ | √ | |
| Live data | √ | √ | √ | √ | |
| Active test | √ | √ | √ | √ | |
| Full system special functions | √ | √ | √ | √ | |
| Service functions | √(40 kinds) | √(40 kinds) | √(40 kinds) | √(40 kinds) | |
| ECU Coding | √ | √ | √ | √ | |
| Pre&Post Scan | √ | √ | √ | √ | |
| TPMS integrated function(such as sensor programming, activation) | x | x | √ | x |
How to Choose?
If you need more features and advanced functions such as ECU Coding, then the MP900 is a good choice. If you also need to diagnose OBD1 vehicles, you can opt for the MP900 KIT. If you require BT Connection, the MP900BT would be the option. For additional TPMS diagnostics, you can choose the MP900TS.
Summary
Both the Autel 808 and 900 series scanners are excellent OBD2 scanners. The 900 series has slightly better hardware, but both offer comprehensive basic diagnostic and service functions.
The main differences lie in the specific features offered by different models. If you need full TPMS functionality, consider Autel scanners ending in TS; if you don't want a wired connection, consider those ending in BT. Of course, if you need ECU coding capabilities, Autel scanners starting with MP/DS will be more suitable.
