Understanding Freeze Frame Data on OBD2 Scanners

What Is Freeze Frame Data?

Freeze frame data is a powerful diagnostic feature built into modern OBD2 systems. When your vehicle logs a diagnostic trouble code (DTC), the system takes a "snapshot" of engine and sensor readings at that exact moment.

This data is stored in your car’s engine control module (ECM) and helps technicians and car owners identify what was happening under the hood when the issue occurred. Think of it as a digital still frame from a movie—capturing crucial details during a fault event.

Most Autel OBD II scanners include a freeze frame data reading function.

Key Parameters Captured

When a fault triggers your check engine light, the system saves various performance metrics, including:

• Engine Load: Measures how hard the engine was working.
• Vehicle Speed: The speed at the time of the fault.
• RPM (Revolutions Per Minute): Indicates engine speed.
• Fuel System Status: Whether the system was in open or closed loop.
• Coolant Temperature: Helps identify potential overheating.
• Throttle Position: Useful for spotting throttle or airflow issues.
• Intake Air Temperature: Affects engine performance and airflow.
• Fuel Trims (Short/Long Term): Indicates fuel mixture adjustments made by the ECU.
• Ignition Timing Advance: Reveals possible timing issues.
• Mass Air Flow (MAF): Key to diagnosing air intake or engine performance problems.

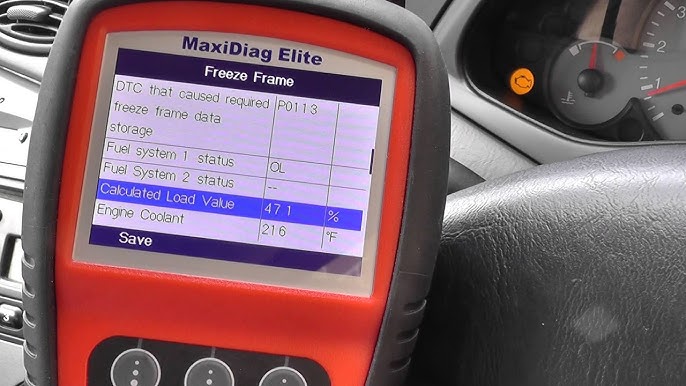

The Autel MD Elite displays freeze frame related data.

Why Freeze Frame Data Matters

This data is more than just numbers—it provides key context behind fault codes and helps avoid guesswork. Benefits include:

• Faster Troubleshooting: Understand the environment when the issue occurred.
• Accurate Repairs: Target the root cause instead of replacing random parts.
• Preventative Maintenance: Spot emerging issues before they escalate.

How to Access Freeze Frame Data with an OBD2 Scanner

Step 1: Plug in Your Scanner

Connect your OBD2 scanner to the diagnostic port—typically located under the dashboard.

Step 2: Turn on the Ignition

Switch the ignition to the “On” position without starting the engine.

Step 3: Retrieve Trouble Codes

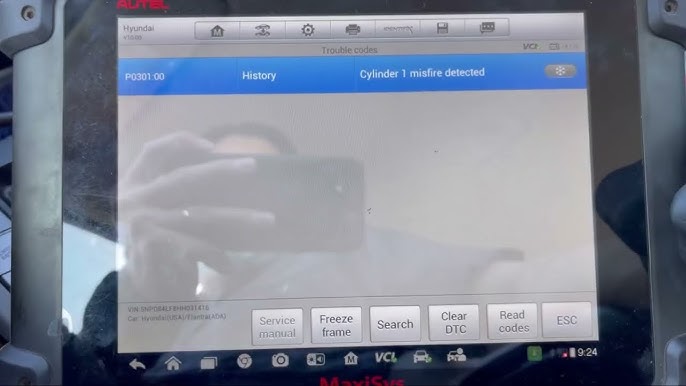

From the main menu, choose to scan for DTCs. Once a code appears, look for the “Freeze Frame Data” option.

Step 4: Review and Analyze

Compare the snapshot data with the trouble code to form a clear diagnosis. Look for patterns or unusual readings.

Using Freeze Frame Data for Better Diagnostics

While the data might seem overwhelming at first, it paints a valuable picture when interpreted correctly:

• High Engine Load + Low RPMs: Could point to a transmission or drivetrain issue.
• Strange Fuel Trims or Throttle Readings: May signal sensor faults or airflow restrictions.
• Elevated Coolant Temperature + Low Airflow: Suggests radiator, thermostat, or fan issues.

OBD2 scanners like the Autel MS919 simplify interpretation with clear visual displays and guided diagnostics, helping even novice users connect the dots.

Best Tools for Reading Freeze Frame Data

To fully leverage freeze frame analysis, choosing the right OBD2 scanner is key. Autel offers a wide range of professional and consumer-grade tools that provide excellent support for reading and interpreting freeze frame data:

• Autel MaxiCOM MK808S: A highly versatile tablet-style scanner with freeze frame data access, full-system diagnostics, and service functions. Ideal for home mechanics and small repair shops.
• Autel MaxiSys MS906 Pro: Designed for advanced diagnostics, it supports bi-directional control, ECU coding, and detailed freeze frame analysis across most vehicle brands.
• Autel MaxiSys Ultra S2: A top-tier diagnostic platform for professionals, featuring a fast Android interface, comprehensive freeze frame diagnostics, and an integrated VCMI for oscilloscope and multimeter functions.

Whether you're a DIY user or a seasoned technician, Autel OBD2 scanners offer the performance and reliability you need to make accurate, data-driven repair decisions.

When to Use Freeze Frame Snapshots

Emissions Testing

Freeze frame data is often reviewed during emissions checks to understand the fault's impact on environmental performance.

Misfire Diagnosis

In cases of engine misfires, irregular RPM and fuel trim readings can help isolate bad spark plugs or ignition coil issues.

Fuel Delivery Issues

Unusual fuel trim values or stuck open-loop operation may indicate a weak fuel pump or clogged injectors.

Overheating Problems

High coolant temps recorded during idle or low-speed operation could highlight failing cooling components.

Final Thoughts

Freeze frame data is one of the most underutilized yet powerful features in OBD2 diagnostics. By freezing your vehicle's operating conditions during a fault, it helps you trace problems with precision.

Whether you're a seasoned mechanic or a car owner who likes to troubleshoot at home, investing in a quality scanner—like the Autel MS919 or MD906Pro—makes diagnostics clearer, faster, and more effective.

FAQs

Can I delete freeze frame data?

Yes. Clearing DTCs will also erase stored freeze frame snapshots. Only do this after resolving the issue.

Is freeze frame the same as live data?

Not quite. Live data shows ongoing sensor readings. Freeze frame captures a single moment when a fault occurred.

Do all OBD2 scanners support freeze frame?

No. Only mid-range or high-end scanners typically offer this feature. Always check your scanner’s specifications.
