Autel MaxiSys MS909 S2 vs. MS908S Pro II: Is It Time to Upgrade?

In 2026, Autel launched the new Autel MaxiSys MS909S2. This S2-series Autel scanner not only expands functionality but also enhances performance and the user experience. Meanwhile, the Autel MaxiSys MS908S Pro II—an upgraded version of the 908-series scanner Autel released last year—has also seen improvements in certain areas and became last year’s best-selling model.

Both of these Autel scan tools belong to the Autel MaxiSys series, but Autel generally follows the rule that higher model numbers mean more features. So, in what ways has the Autel MS909S2 been upgraded compared to the MS908S Pro II? Would you be willing to pay double the price for these upgrades?

In today’s guide, we’ll thoroughly explain the differences and improvements between these two automotive diagnostic tools, as well as their respective pros and cons, to help you choose the product that best suits your needs. Let’s take a look!

The Real Question Isn't Features—It's Workflow

When comparing the Autel MaxiSys MS909 S2 and the MS908S Pro II, it's easy to get distracted by specifications. The MS909 S2 offers newer hardware, a faster operating system, and expanded diagnostic capabilities, but the real difference isn't found on a spec sheet.

It's found in the technician's daily workflow.

Imagine diagnosing a late-model vehicle with multiple warning lights and over 30 control modules. Both scanners can read codes, access live data, perform active tests, and handle ECU programming. The question is how quickly and efficiently they get you to the root cause.

The MS908S Pro II remains a highly capable diagnostic platform, but the MS909 S2 was built for today's increasingly complex vehicles. Features like Topology 3.0, CAN FD support, DoIP communication, and upgraded hardware can reduce the time spent navigating modules, analyzing network faults, and processing large amounts of data.

For many technicians, the upgrade decision isn't about gaining new functions—it's about completing the same jobs faster.

Before comparing specifications, it's worth asking a more important question:

Is your current scanner limiting your workflow, or simply getting the job done?

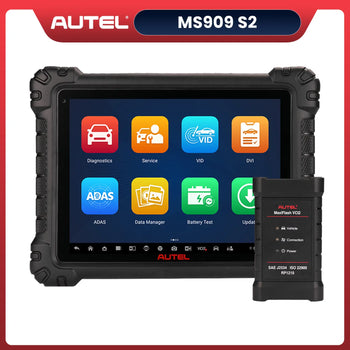

Autel MaxiSys MS909 S2 2026 New Features

What Has Actually Changed Since the MS908S Pro II Era?

The gap between the MS908S Pro II and the MS909 S2 is not just a model upgrade—it represents a shift in diagnostic generation.

To understand the difference clearly, it helps to look at how automotive diagnostics have evolved in three stages.

1. The MS908S Pro II Era — Traditional Diagnostic Workflow

During the Autel MS908S Pro II generation, most workshops relied on a structured but manual diagnostic process:

• Full system scan
• Manual module-by-module navigation
• Separate ECU coding and programming workflows
• Limited network visualization
• Dependence on technician experience to interpret system relationships

This generation is powerful, but still largely linear and technician-driven.

2. The Transition Period — Increasing Vehicle Complexity

As vehicles became more connected, especially after 2018–2021, new challenges emerged:

• More control modules per vehicle (20–50+ ECUs)
• CAN FD and DoIP communication protocols
• Increased security gateway restrictions
• Faster data flow requirements for live diagnostics
• More interdependent system failures

At this stage, even high-end tools like the MS908S Pro II began to require more manual interpretation of system relationships.

Evolution of Autel Diagnostic Products

3. The MS909 S2 Era — Network-Based Intelligent Diagnostics

The MS909 S2 reflects a different approach to diagnostics:

• Motor TruSpeed Repair function
• Topology-based system visualization
• Faster ECU communication via upgraded hardware and VCI2
• Native support for CAN FD and DoIP vehicles
• Smarter module relationship mapping
• Reduced need for manual cross-module tracing

Instead of scanning systems one by one, technicians can now see the vehicle as a connected network.

The Real Breakpoint: From Module Reading to System Understanding

The key change is not speed or hardware alone.

It is the shift from:

"Reading individual ECUs" to "Understanding the entire vehicle network in one view"

This is why comparing MS908S Pro II and MS909 S2 is not just a spec comparison—it is a workflow evolution between two diagnostic generations.

Topology 3.0 vs Traditional Topology — Does It Matter?

Traditional automotive diagnostic tools typically display only a dry list of components (e.g., ECM, TCM, ABS...) when scanning a vehicle, requiring you to click through each one individually to check for trouble codes.

The Autel MS909S2, on the other hand, is equipped with Topology 3.0 technology, which enables dynamic network testing, split-screen synchronized display of physical location maps, and data fusion display.

Topology mapping technology provides an intuitive view of the entire network, allowing technicians to quickly identify affected systems and understand the relationships between them, thereby making troubleshooting faster and more efficient.

However, the Autel MS908S Pro II does not have advanced topology mapping capabilities. When using it for diagnostics, you need to manually select each module system to view it, and it is difficult to understand the relationships between these modules, which undoubtedly increases the time and complexity of the diagnostic process.

Autel Maxisys MS909 S2 Topology Mapping 3.0

Reenactment of Real-Life Diagnostic Scenarios

A car pulls into a repair shop with several warning lights illuminated on the dashboard, including the anti-lock braking system (ABS), engine, and transmission warning lights. A system-wide communication failure is suspected. What differences would there be in the process if two different Autel scanners were used?

Using MS908S Pro II — Traditional Workflow

With the MS908S Pro II, the diagnostic process typically follows a manual path:

• Perform a full system scan to identify which modules are not responding
• Click through each affected control module in turn
• Check fault codes one by one
• Manually cross-check communication errors
• Trace possible root causes across multiple systems

Although this method is effective, it requires technicians to mentally reconstruct the vehicle’s communication network step by step. For complex vehicles equipped with more than 30 modules, this process can be both time-consuming and piecemeal, especially when multiple systems are involved.

Using MS909 S2 — Topology-Based Workflow

The MS909 S2 uses Topology 3.0 technology to provide a more intuitive and efficient diagnostic approach:

• Perform a full system scan with topology mapping enabled
• View all ECUs in a visual network structure
• Instantly identify which modules are offline or miscommunicating
• Trace fault propagation paths directly within the topology view
• Narrow down root cause areas without manually entering each module

Instead of checking systems individually, the technician sees the entire communication structure of the vehicle in a single interface.

Topology-Based VS Traditional Workflow

Decoding the Future: Protocol Coverage & DoIP/CAN FD Support

The future of automotive diagnostics lies in the ability to support the latest communication protocols and technologies. The Autel MS909S2 is designed to handle these advancements, including DoIP and CAN FD, which are becoming increasingly common in modern vehicles.

The MS908S Pro II, while a capable tool, does not support these advanced protocols, which may limit its effectiveness in diagnosing modern vehicles.

You may think the Autel MS908S Pro II is sufficient for diagnosing modern vehicles, but if a BMW G20 3 Series (DoIP platform) or a Volkswagen Golf 8 comes into your repair shop, the MS908S Pro II may not provide the necessary diagnostic support—whereas the MS909 S2 is better equipped to handle the diagnostic challenges posed by these modern vehicles.

As automotive technology continues to evolve, tools that support the latest protocols and features will become increasingly important.

The Hidden Value of MS909 S2 — MOTOR TruSpeed Repair Data

The Autel MS909S2 supports MOTOR TruSpeed Repair, allowing direct access to repair data from original equipment manufacturers (OEMs), including verified OEM repair procedures, technical specifications, and drawings, thereby improving repair efficiency and accuracy.

This feature makes the Autel MS909 S2 more than just a diagnostic scanner; it transforms it into a comprehensive repair assistant capable of providing more thorough technical support. The Autel MS908S Pro II, on the other hand, lacks this feature and may struggle when handling complex repair tasks.

For specific use cases of MOTOR TruSpeed Repair, see the “Autel Scanner Motor TruSpeed Repair: Complete Guide.”

Note: This feature is not free; if you want to use it, you'll need to pay $650 per year for a subscription.

Autel MS909 S2 MOTOR TruSpeed Repair

AI-Powered Diagnosis—A Revolution in Diagnostic Technology

Compared to the MS908S Pro II, the Autel MS909S2 features AI-powered diagnostic capabilities. Not only does it offer AI voice assistant-assisted diagnosis and repair, but it also supports Digital Vehicle Inspection (DVI) technology and real-time data fusion. The application of AI technology in the Autel MS909S2 makes the entire diagnostic process smarter and more efficient.

The AI-powered features of the MS909 S2 can significantly reduce the time technicians spend diagnosing and repairing vehicles, leading to increased productivity and customer satisfaction.

Upgrade Scorecard

After comparing hardware, workflow, vehicle coverage, and real-world diagnostic scenarios, here's how the MS909 S2 and MS908S Pro II stack up.

How to Choose the Right Tool for Your Needs

Who Should Keep the Autel MaxiSYS MS908S Pro II

Shop owners who primarily work on vehicles manufactured before 2022 may find the Autel MaxiSYS MS908S Pro II to be a cost-effective and capable solution. It offers robust diagnostic capabilities for older vehicles and provides good value for money.

The MS908S Pro II remains an excellent choice for:

• Independent mechanics
• Mobile technicians
• Advanced DIY users
• Small repair shops focused on general service

It's still capable of performing:

• Full-system diagnostics
• Active tests
• ECU coding
• Adaptations and relearns
• Oil reset, EPB, BMS, DPF, and TPMS functions
• J2534 pass-thru programming

For shops that primarily service pre-2022 vehicles, these capabilities are often more than enough.

MS908S Pro II Fix 99% Car Issues

Who Will Benefit Most From the MS909 S2?

Shop owners who work on modern vehicles, particularly those manufactured after 2022, will benefit most from the Autel MaxiSYS MS909 S2. Its advanced features and improved performance make it a better choice for diagnosing and programming newer vehicle models.

You'll benefit most from upgrading if you fall into one of these categories:

• High-Volume Repair Shops - Faster scans, quicker fault isolation, and improved workflow can save valuable time across multiple vehicles every day.
• European Vehicle Specialists - Frequent work on BMW, Mercedes-Benz, Jaguar Land Rover, and other DoIP-equipped vehicles makes the MS909 S2's advanced communication capabilities more valuable.
• Technicians Diagnosing Network Faults - Topology 3.0 helps visualize module relationships and communication issues that can be difficult to trace manually.
• Shops Servicing Newer Ford, GM, and VW Models - CAN FD support becomes increasingly important as more late-model vehicles adopt the protocol.
• Future-Focused Workshops - If you're planning to keep your diagnostic platform for the next five years, the MS909 S2 offers better long-term compatibility with evolving vehicle technology.

Final Verdict: Upgrade or Stay Put?

Upgrade or stay where you are? Different diagnostic needs, application scenarios, and repair professionals often lead to different choices. Based on your specific situation and needs, you can choose the tool that best suits you.

If you're an independent mechanic or the owner of a small repair shop, the MS908S Pro II might be a better fit for you. Staying where you are might not be such a bad thing, since it offers good value for the price and supports older vehicle models.

If you run a high-end repair shop that specializes in the diagnosis and repair of modern vehicles, upgrading to the MS909 S2 may be a wise choice. It offers more advanced features and better performance, enabling it to better handle the complex diagnostic needs of modern vehicles.
